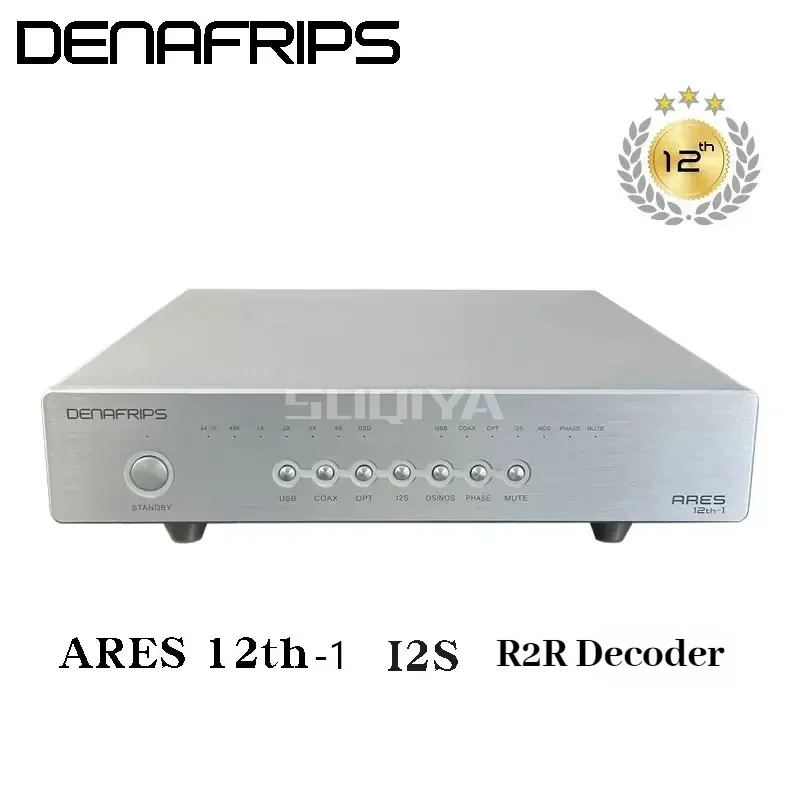

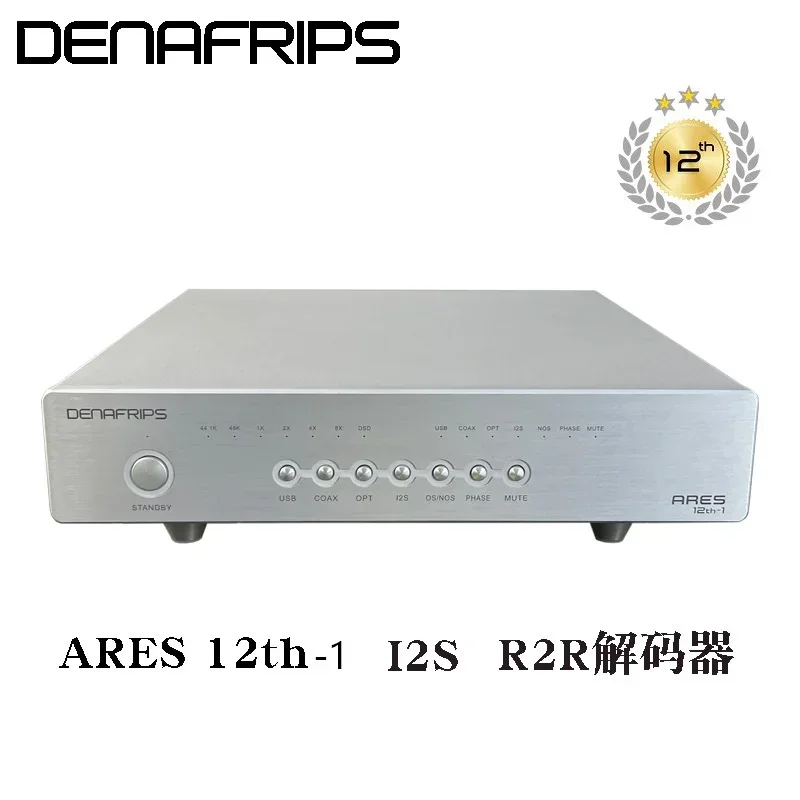

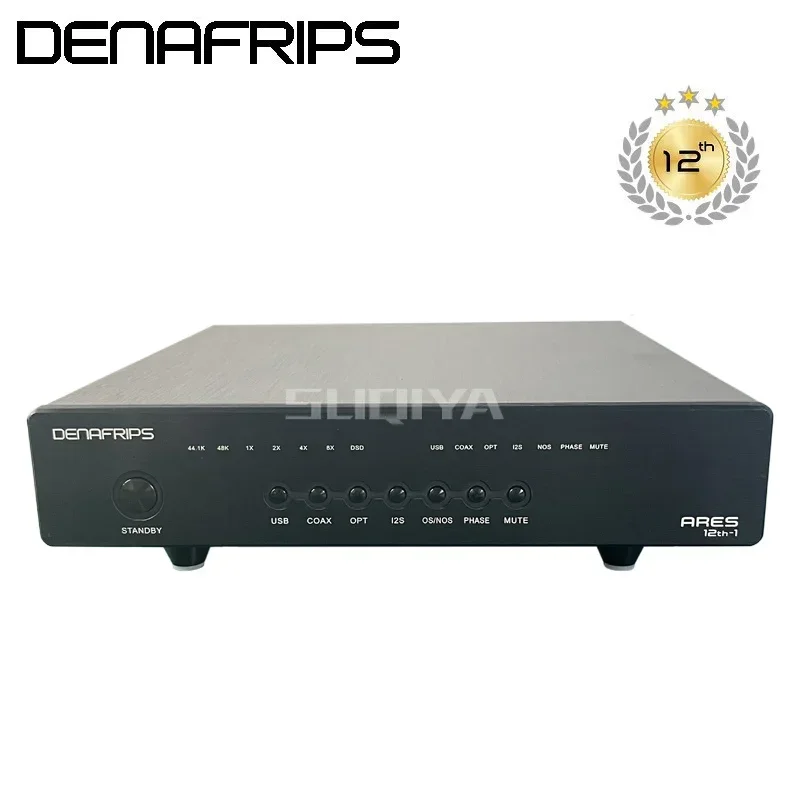

SUQIYA-ARES12th-1 Low Noise Power Supply R2R + DSD Architecture Supports Coaxial OPT I2S USB2.0 Type B Input

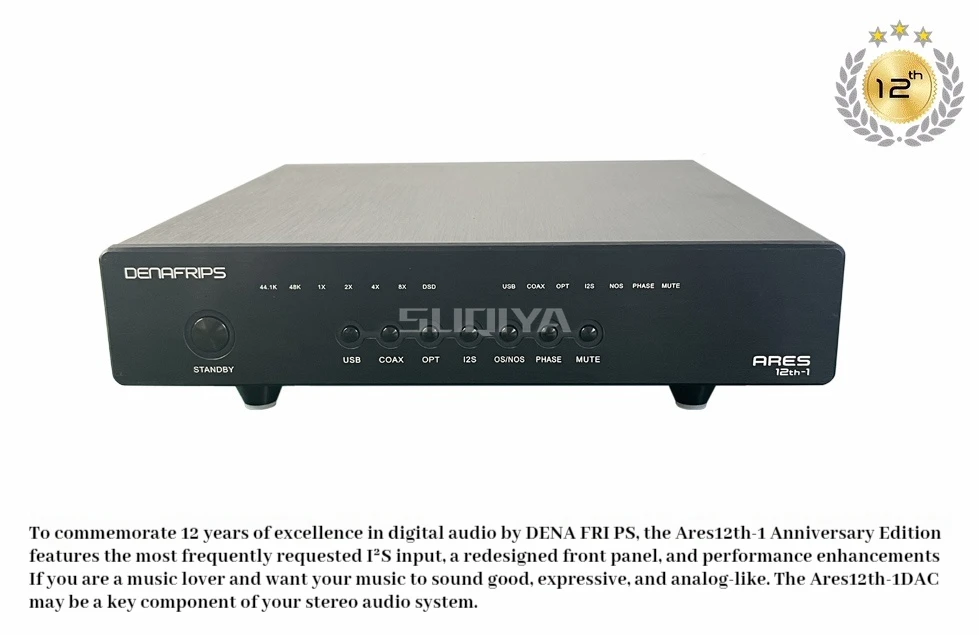

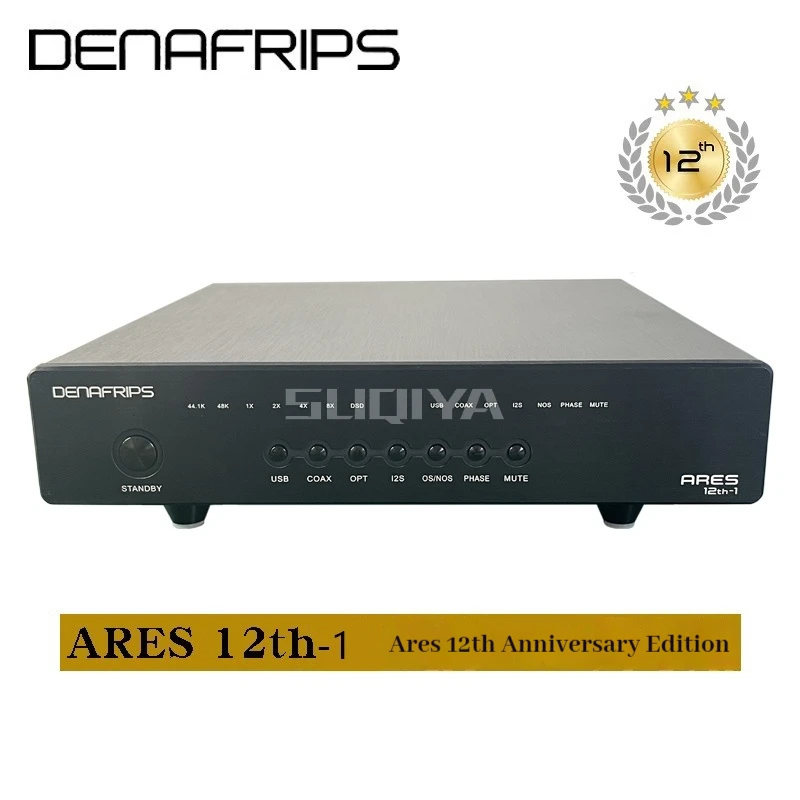

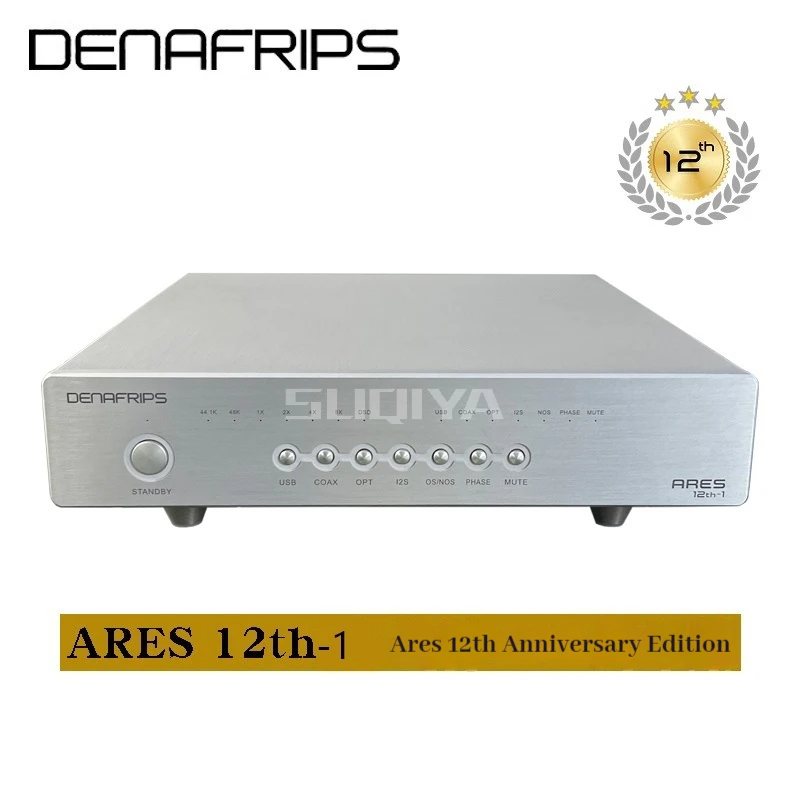

ARES 12-1 Anniversary Edition

Technical Highlights

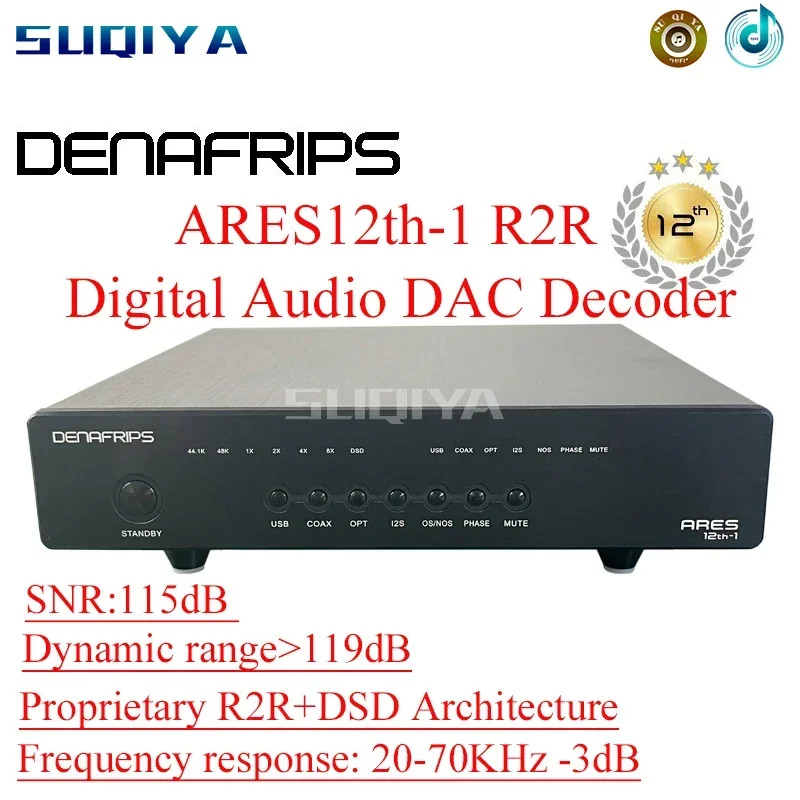

Proprietary R2R + DSD architecture
True balanced 24-bit R2R + 6-bit DSD (32-stage FIR filter)
Low thermal effect, high precision hand-matched 0.01% resistors
Nanosecond crystals 45.1548MHz, 49.152MHz

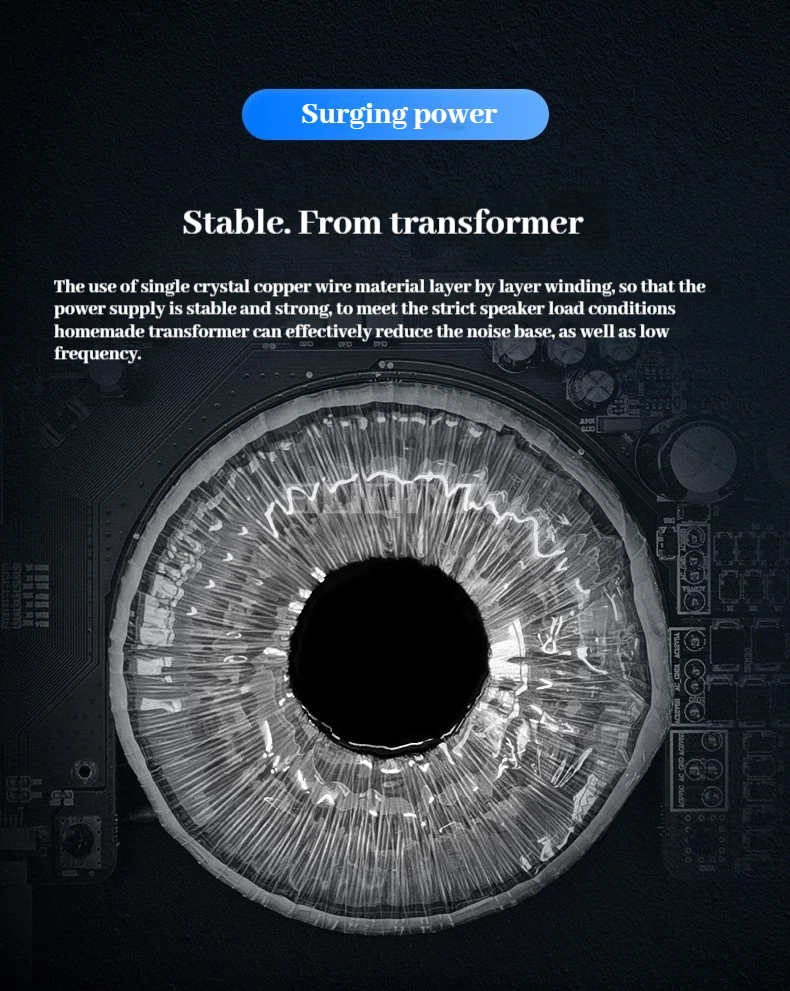

Low noise power supply
FIFO buffer
Digital signal processing via FPGA
DSD1024, PCM1536 support USB input
Proprietary USB audio solution via STM32F446 advanced AMR based MCU
Licensed Thesycon USB driver for Windows platforms
Driverless on Mac & Linux
DSD64-DoP connects all inputs
DSD1024* USB input only
24-bit / 44.1, 48, 88.2, 96, 176.4, 192KHz On all inputs
1536kHz* on USB input

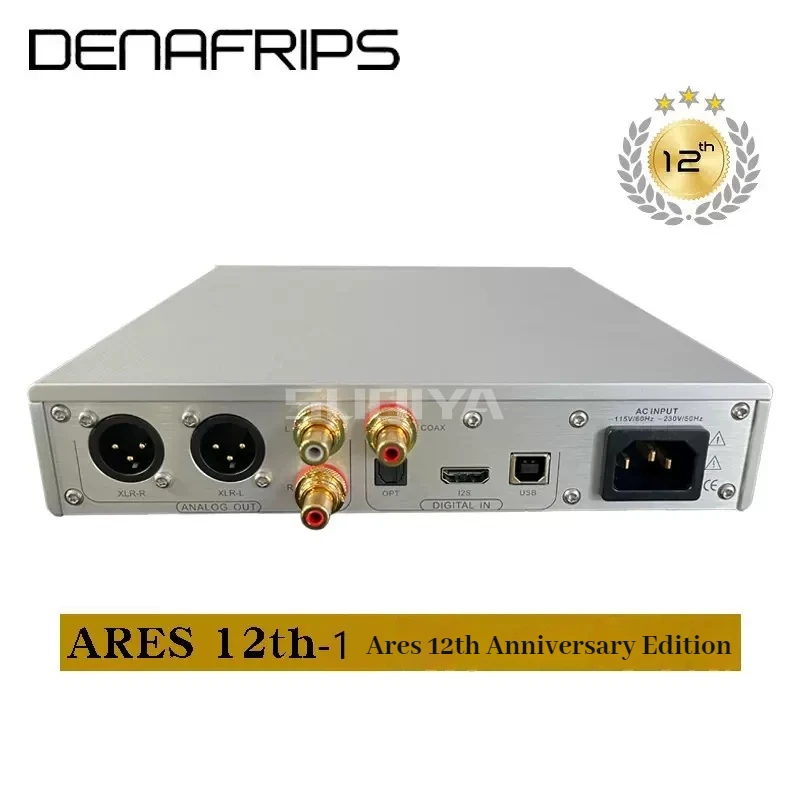

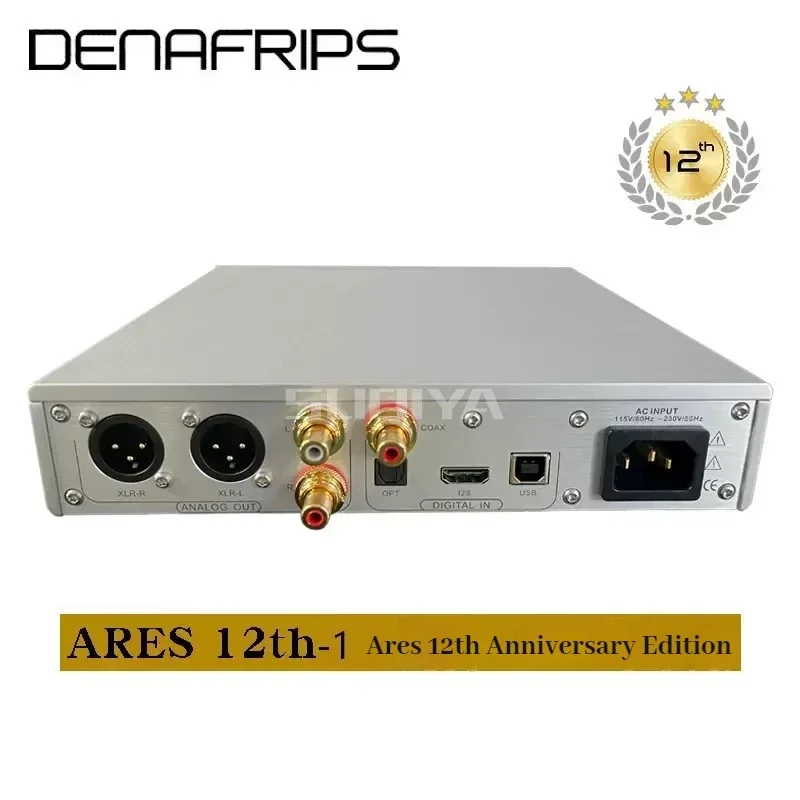

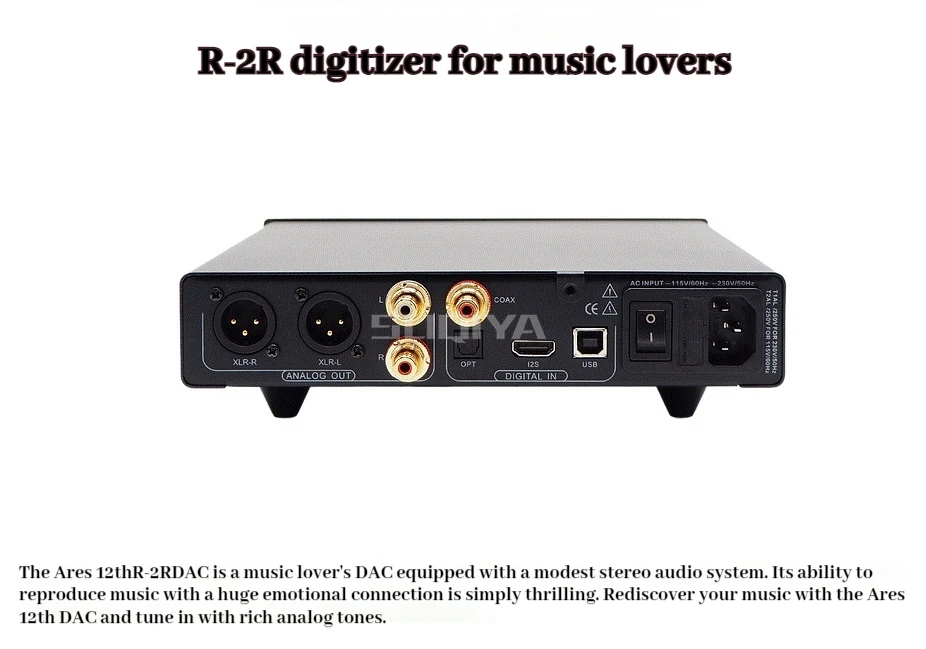

Digital inputs
Coaxial x 1
OPT x 1
I2S x 1
USB2.0 Type B
Analog outputs
RCA at 2.0Vrms, 625Ω
XLR at 4.0Vrms, 1250Ω
Frequency response: 20-70KHz -3dB
THE THD: 0.004%
Signal to noise ratio: 115dB
Dynamic range: >119dB
Stereo crosstalk: -124dB
AC power requirements: 100-240VAC, 50/60Hz (worldwide voltage, manual selection)
Fuse: T2A/250VAC. 5x20mm 2A slow blow
Power consumption: ≤20W
Dimensions: 215W x 230D x 45H (inch +18mm)
Package dimensions: 375 x 330 x 115 mm
Weight: 3.5 kg
Color: Black/Silver

Note: This product does not include a power cord
