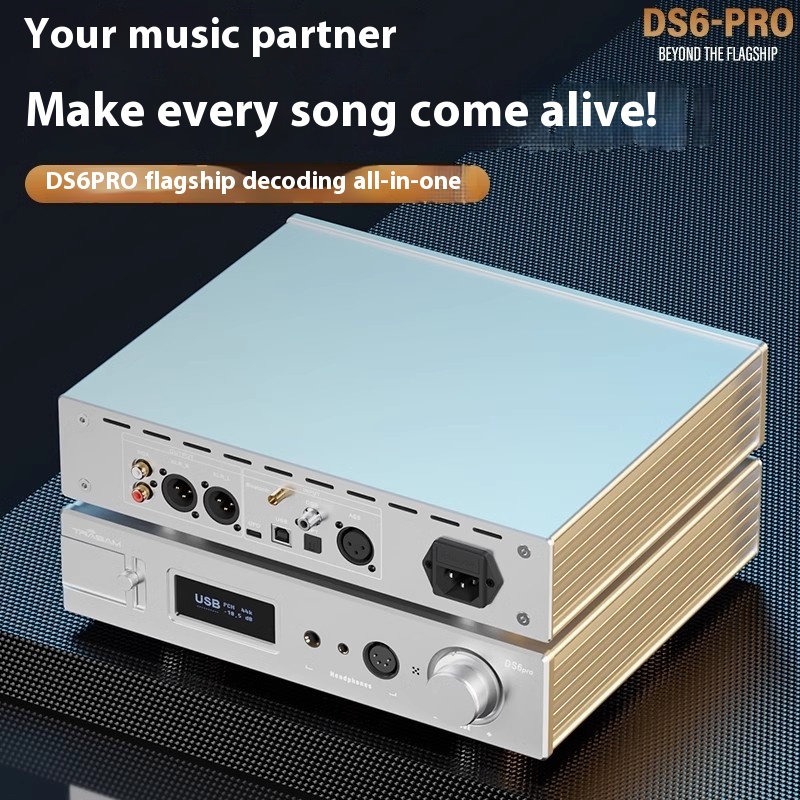

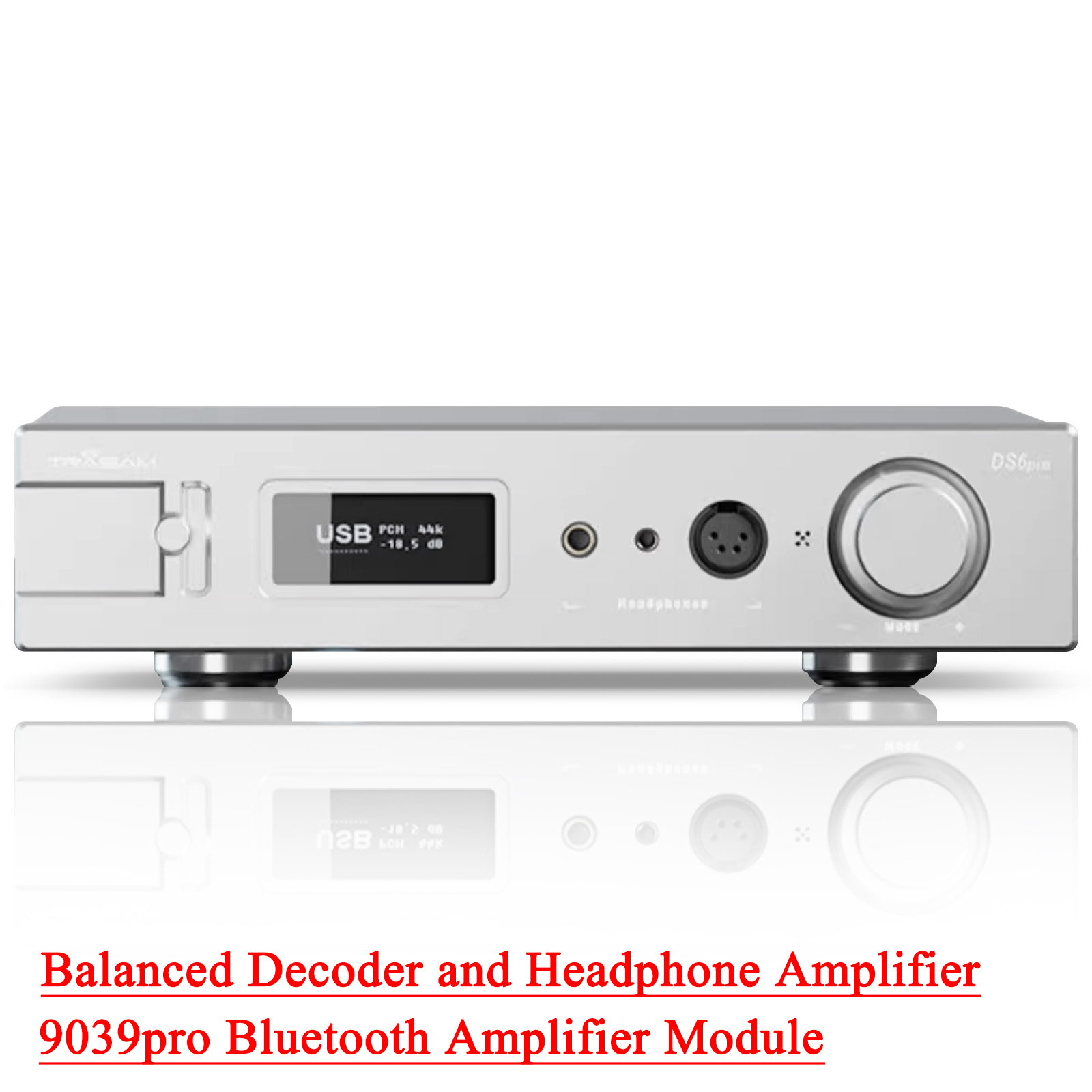

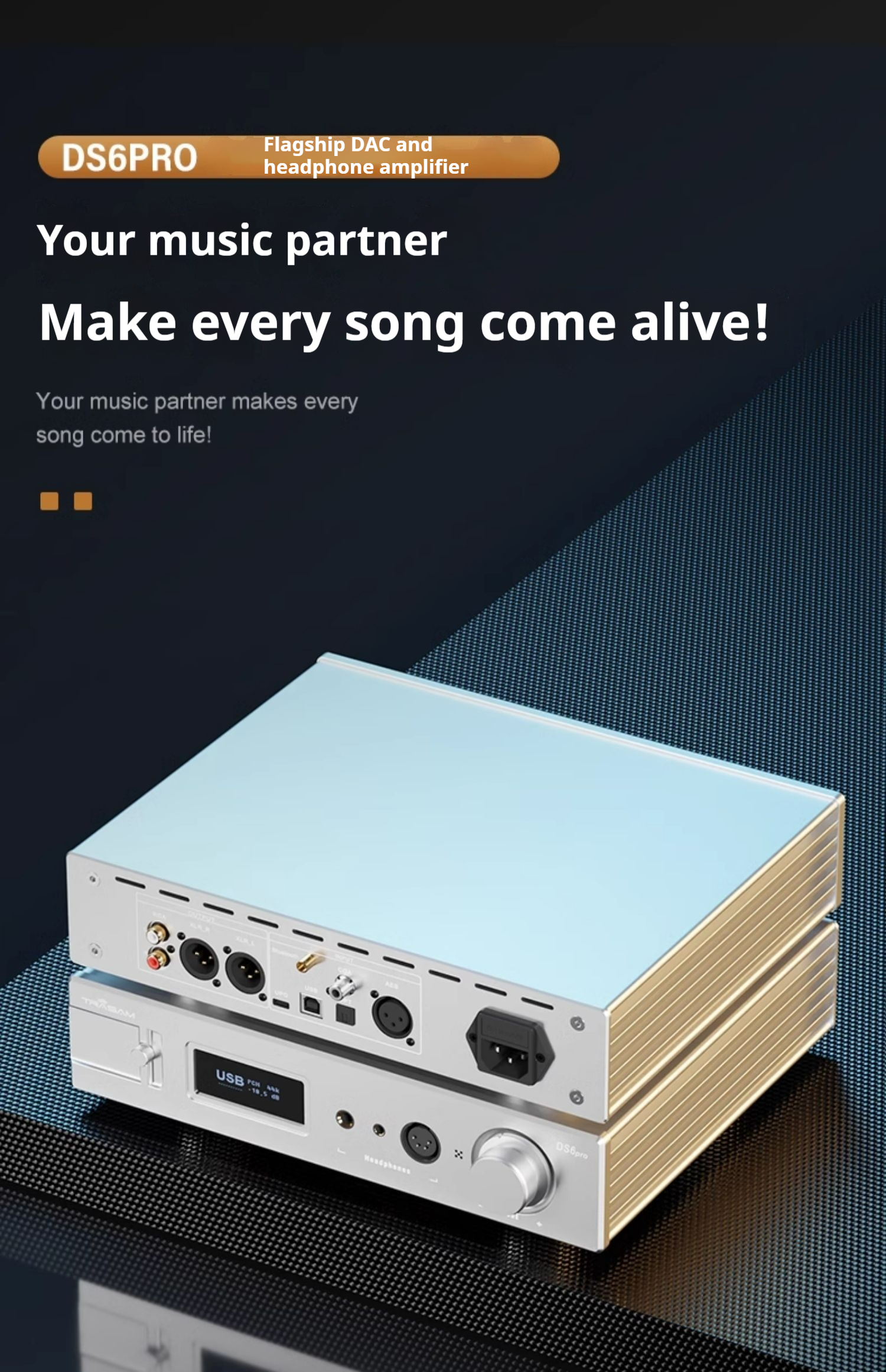

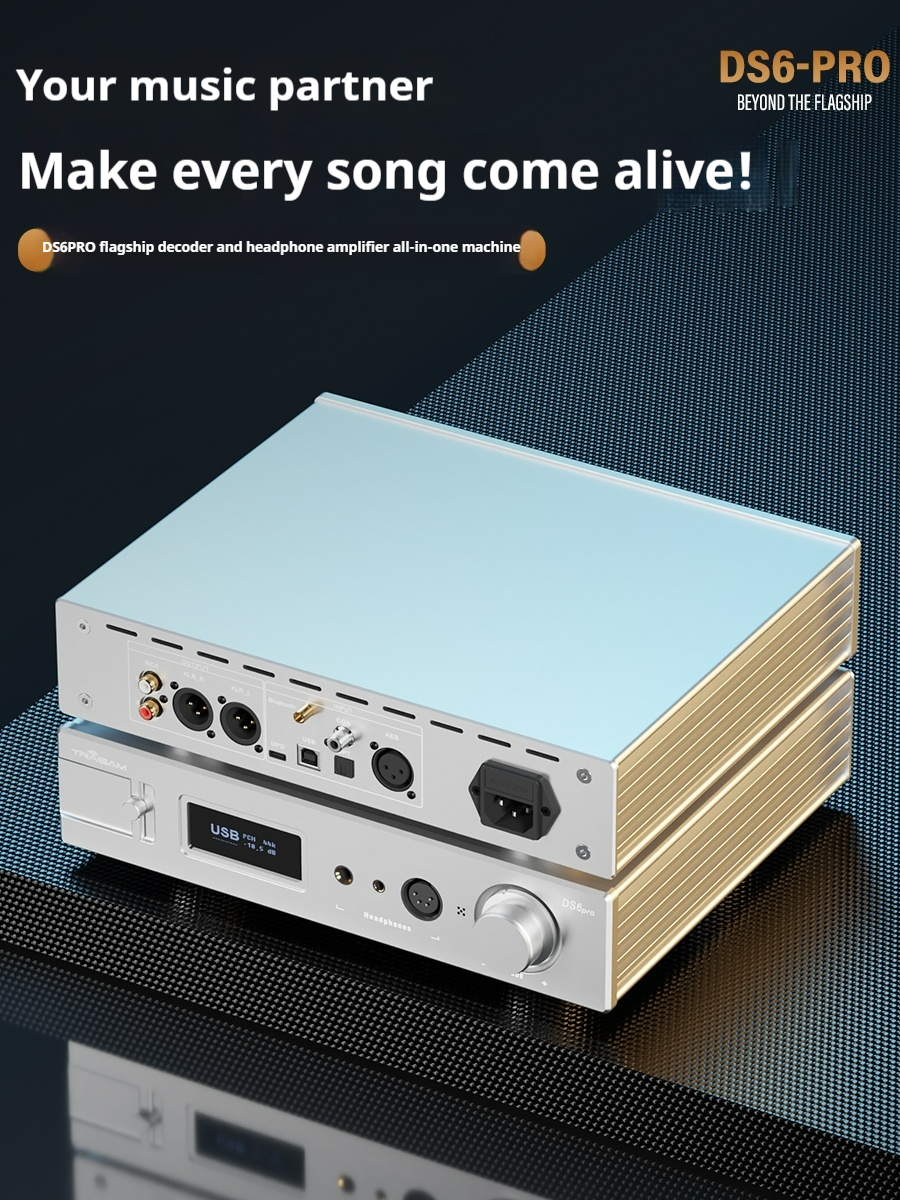

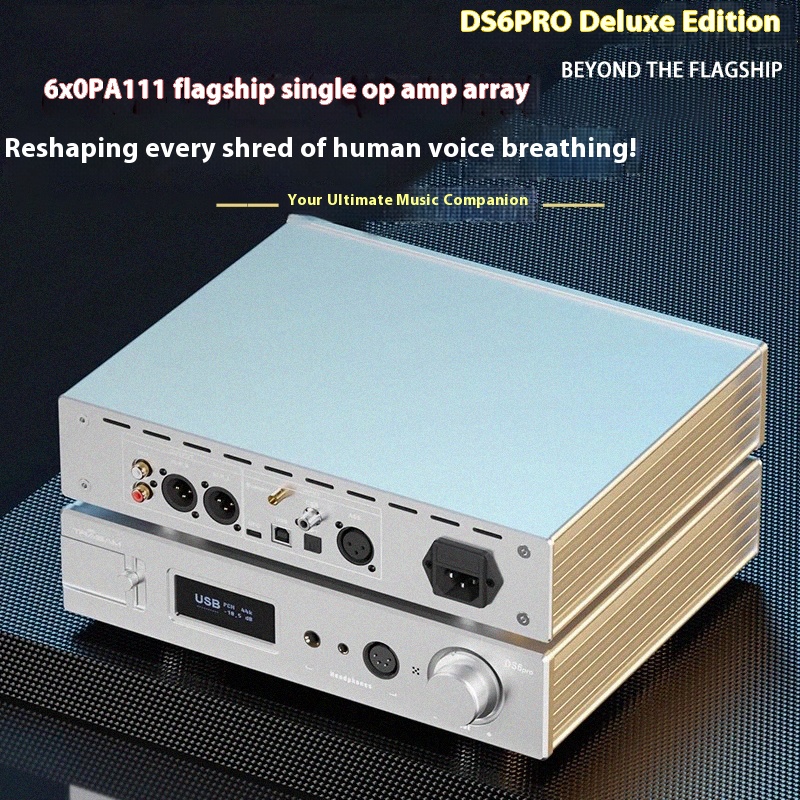

SUQIYA DS6PRO New Balanced Decoder Headphone Amplifier All-in-One 9039pro Bluetooth Headphone Amplifier Module

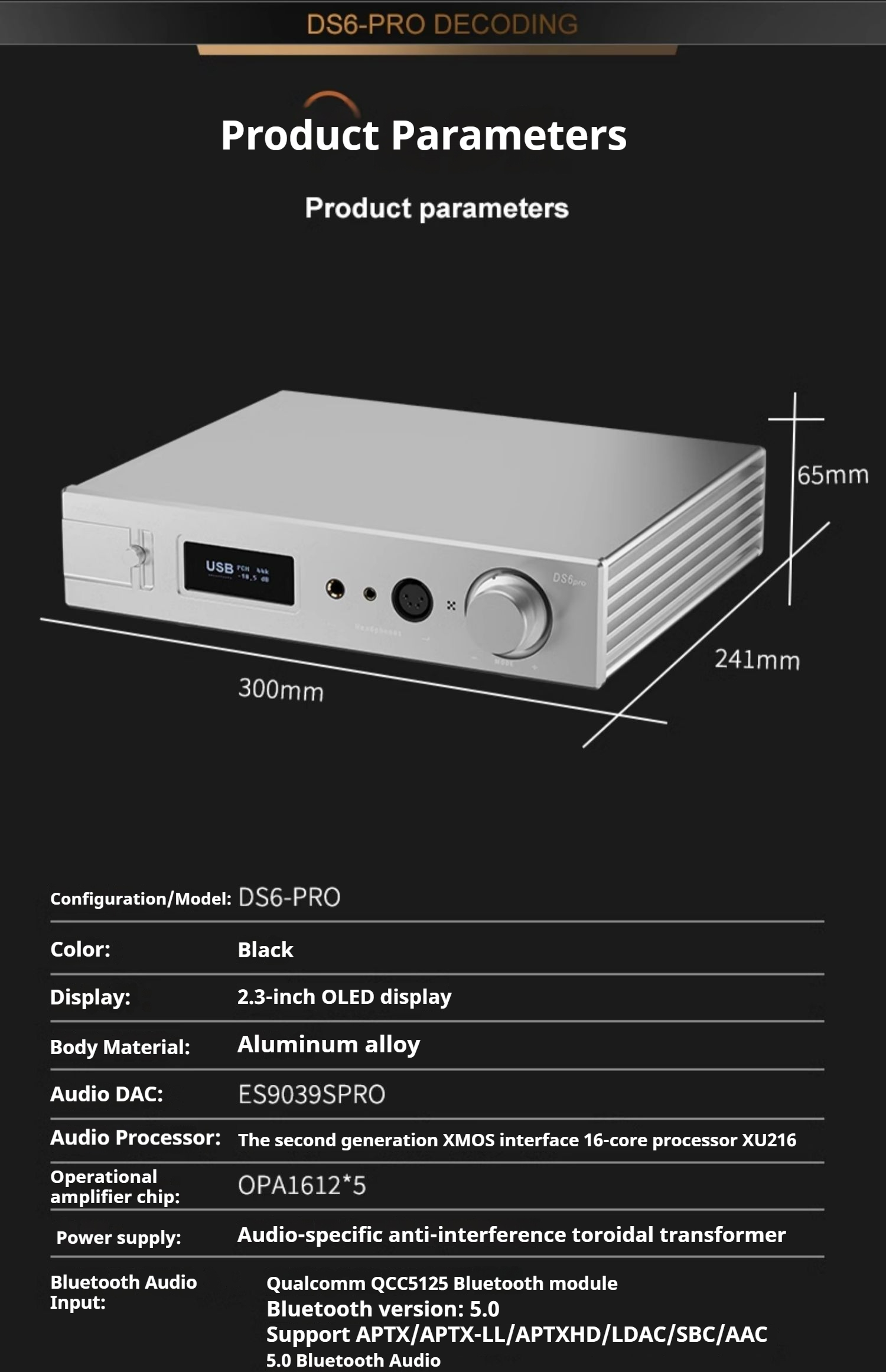

Configuration/Model: DS6-PRO
Color:Black

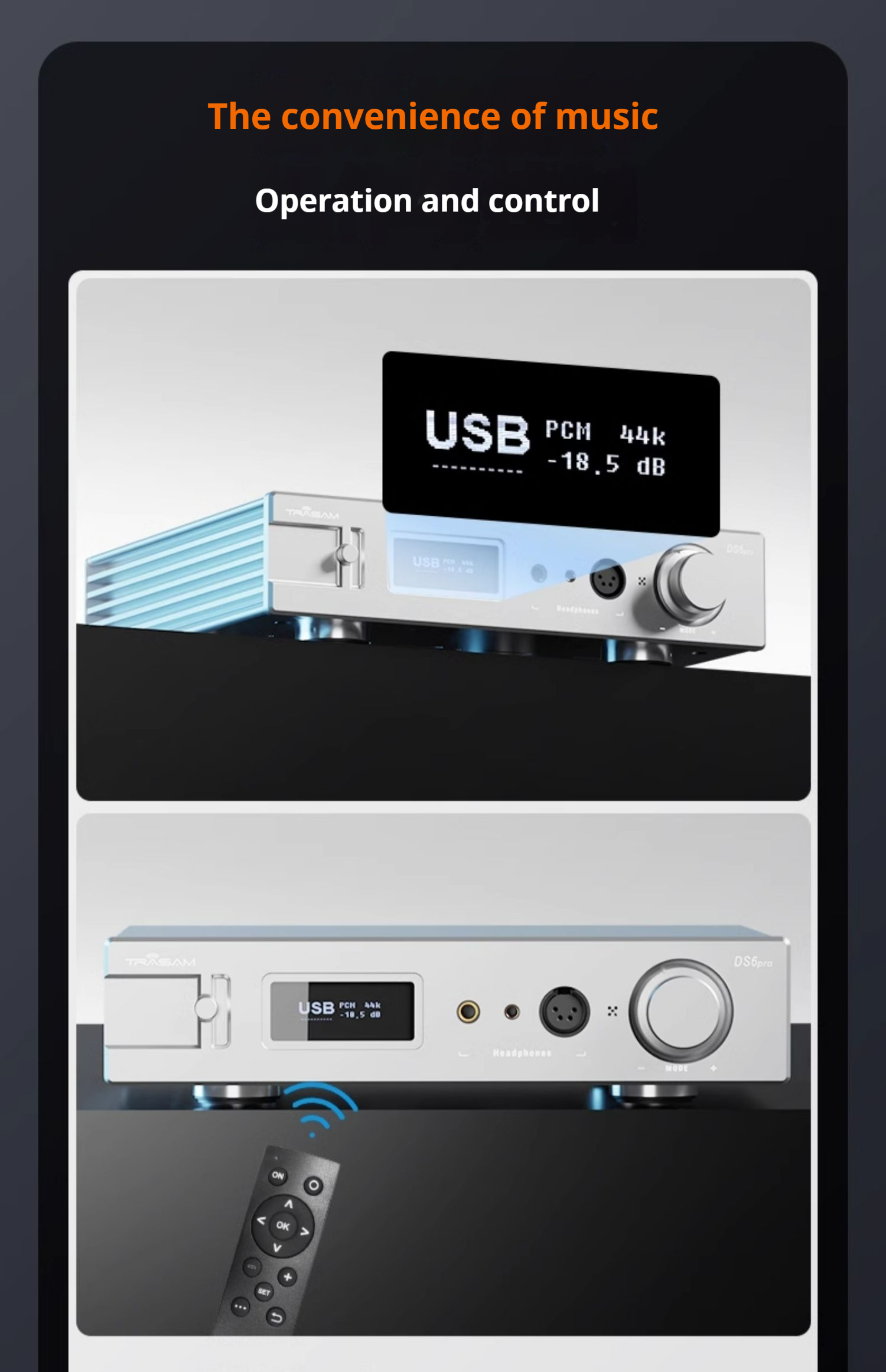

Display:2.3-inch OLED display
Body Material:Aluminum alloy

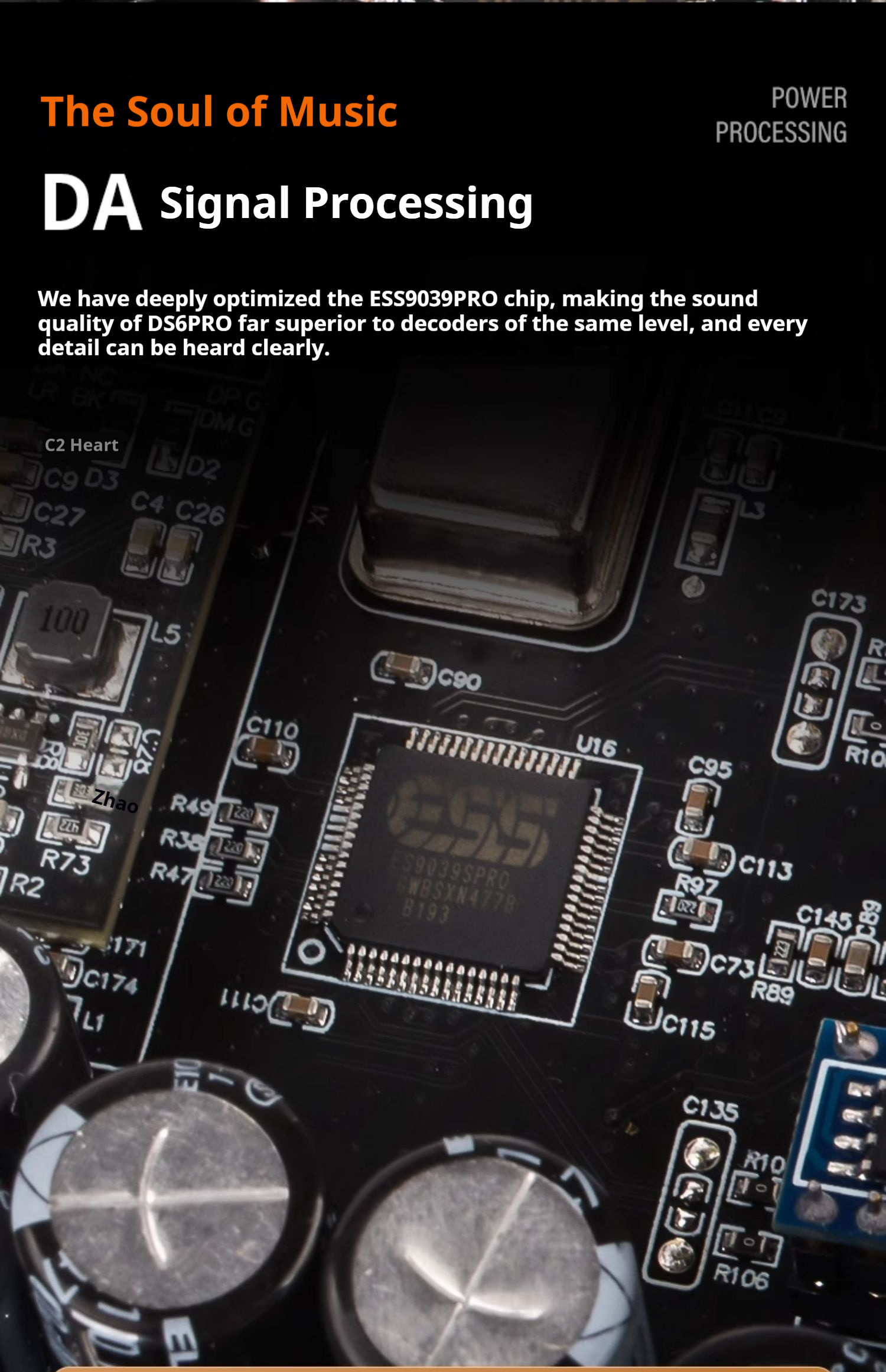

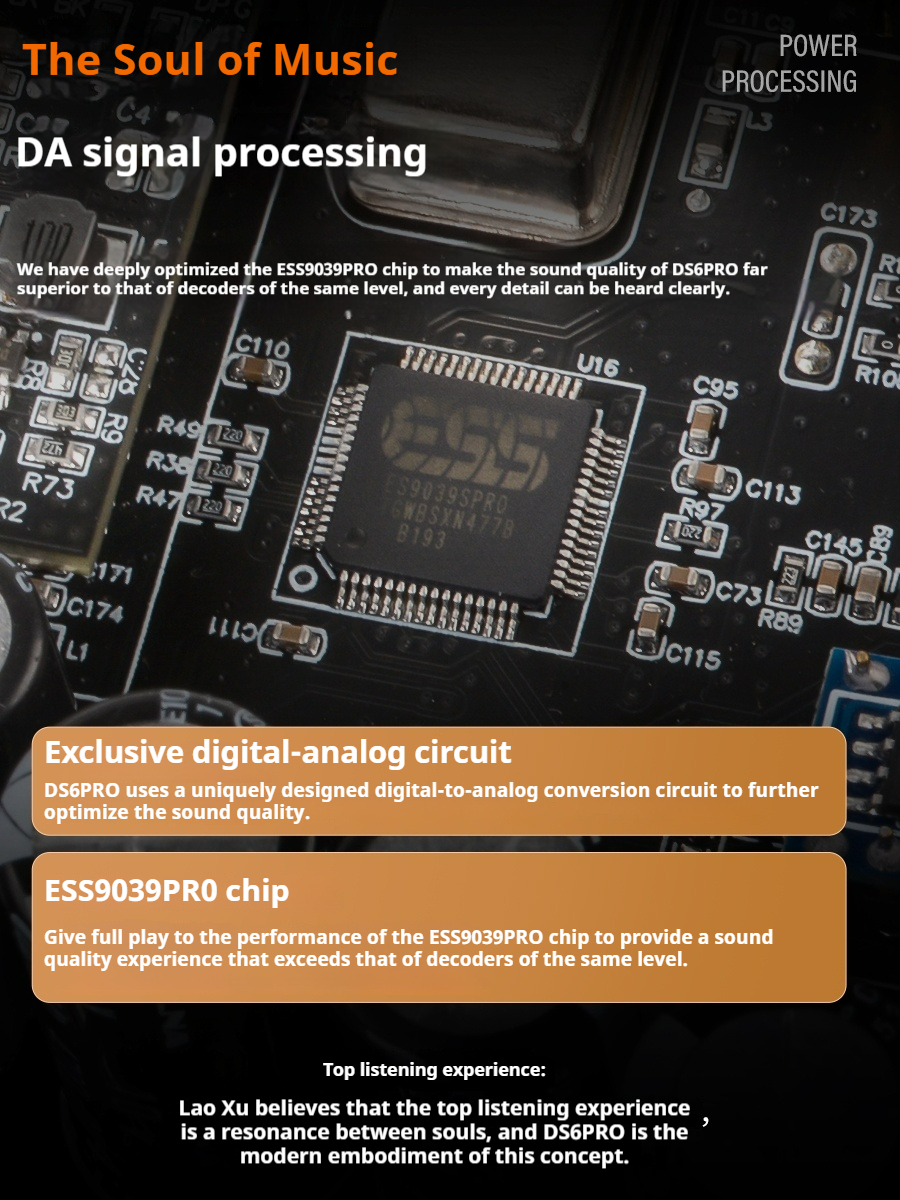

Audio DAC:ES9039SPRO

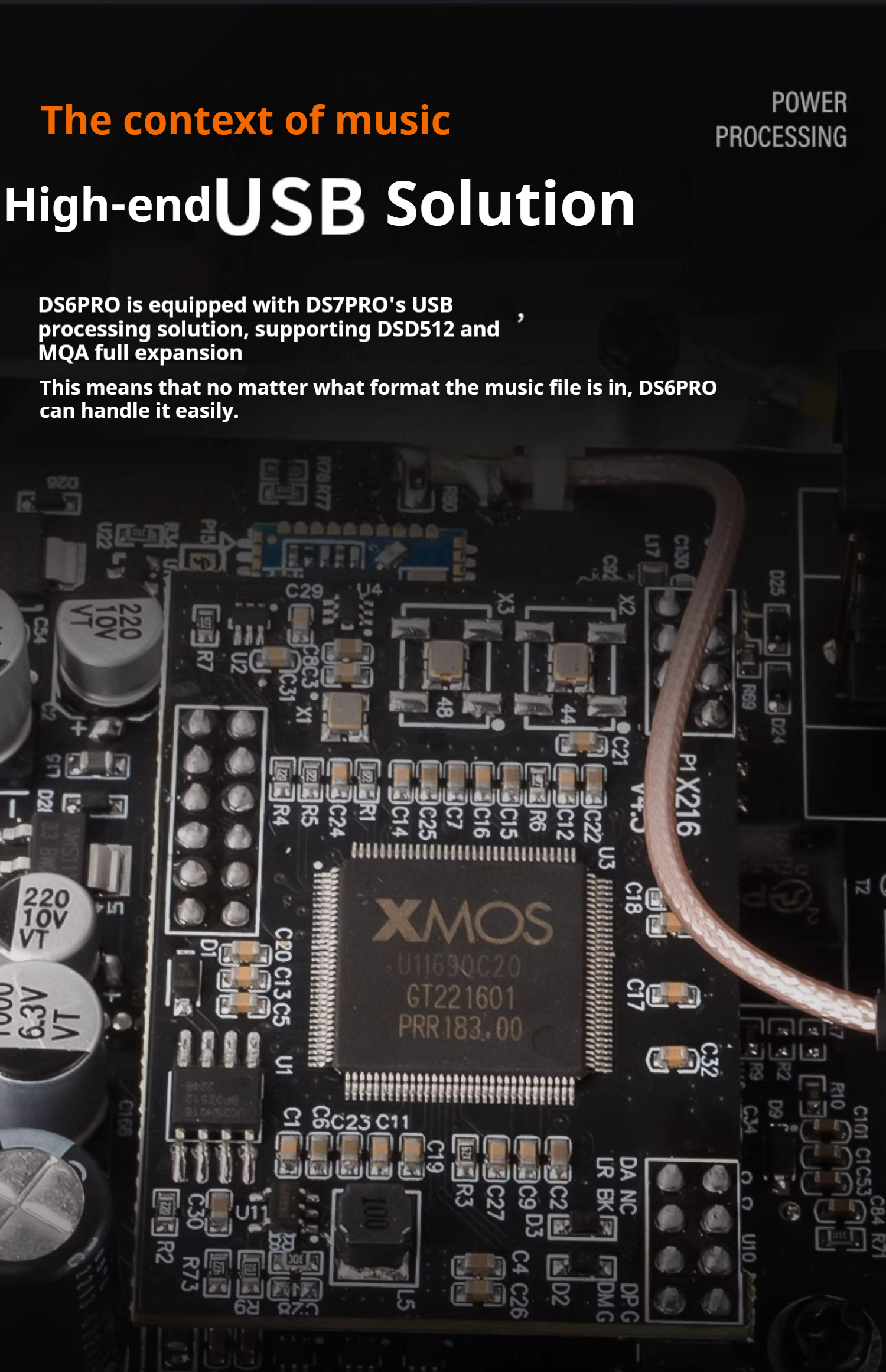

Audio Processor: The second generation XMos interface 16-core processor XU216

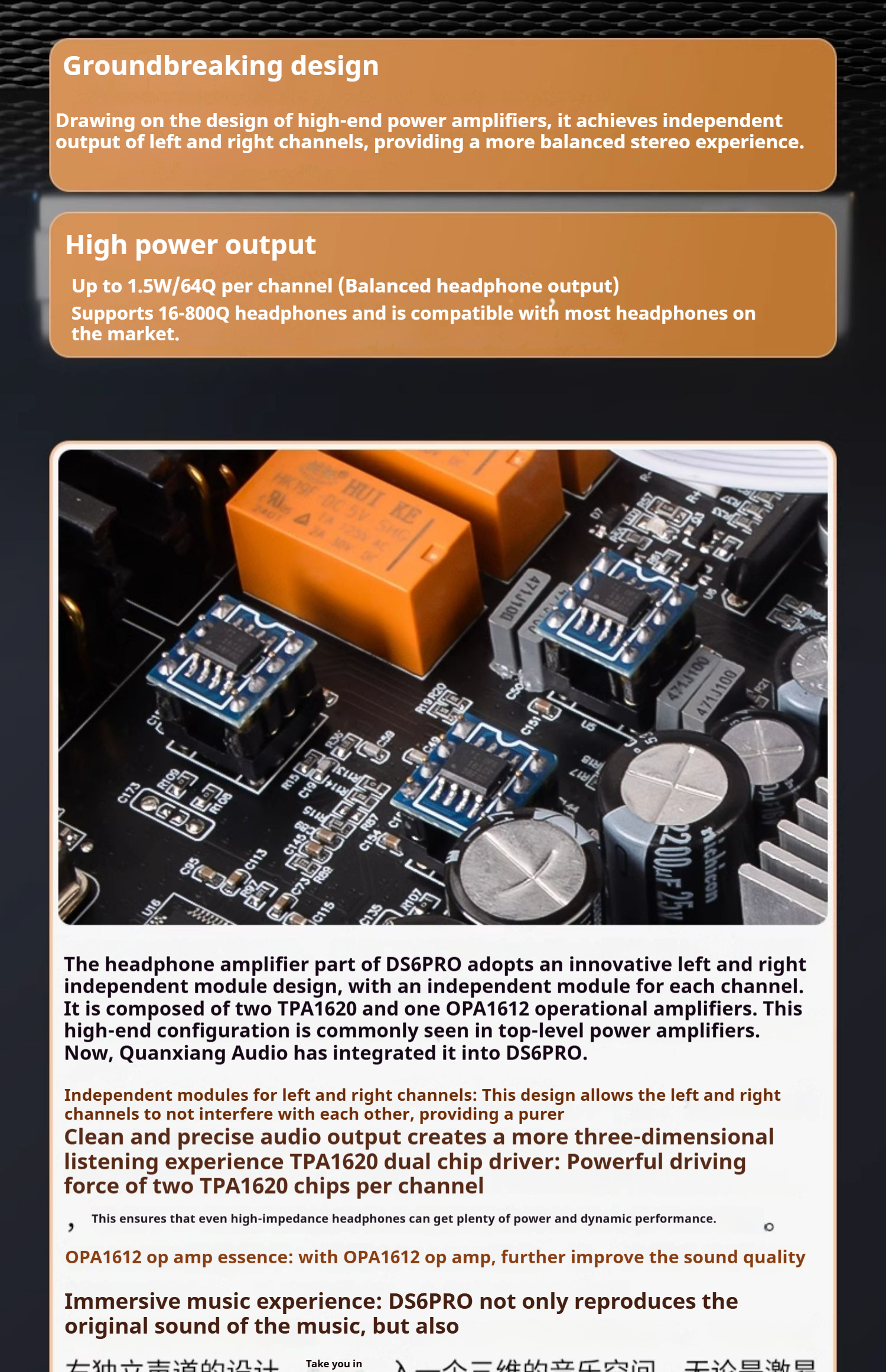

operational amplifier chip:OPA1612*5

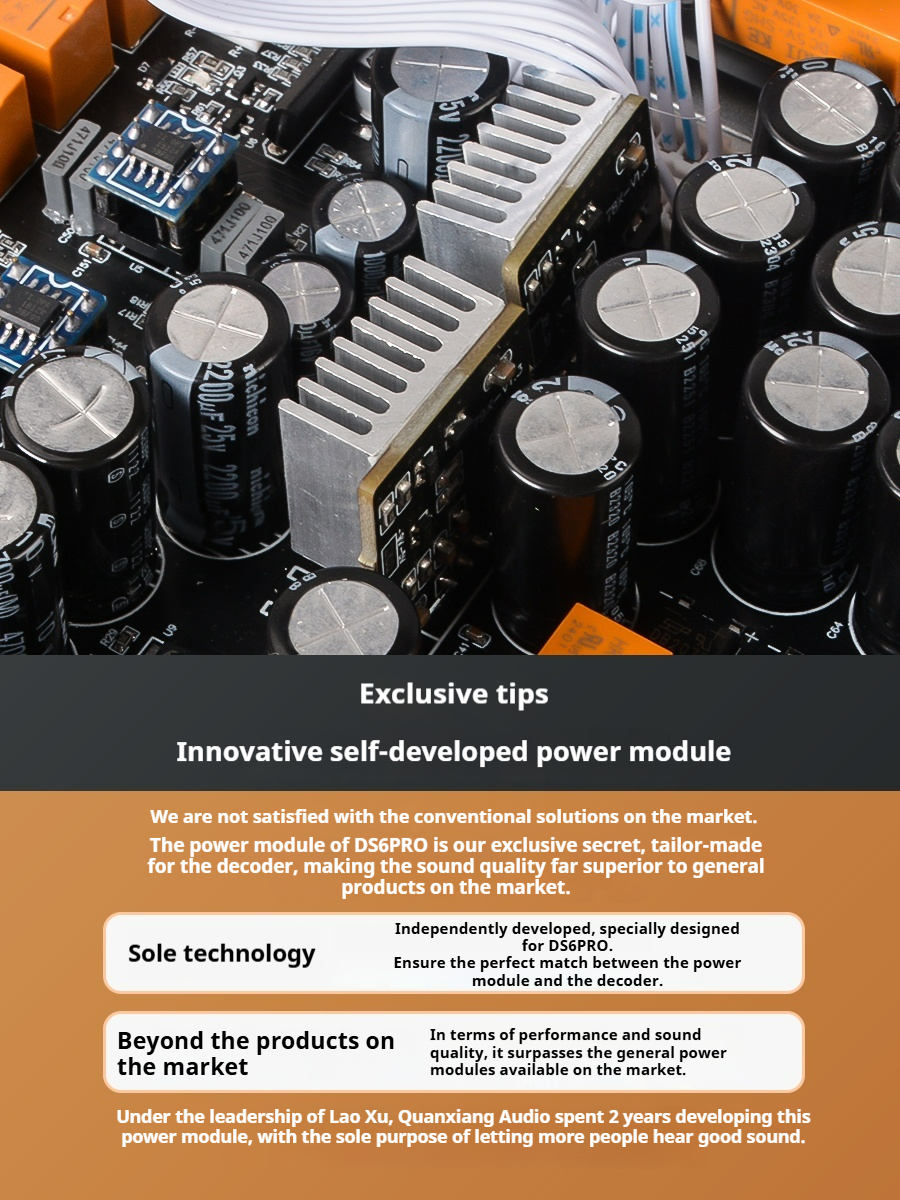

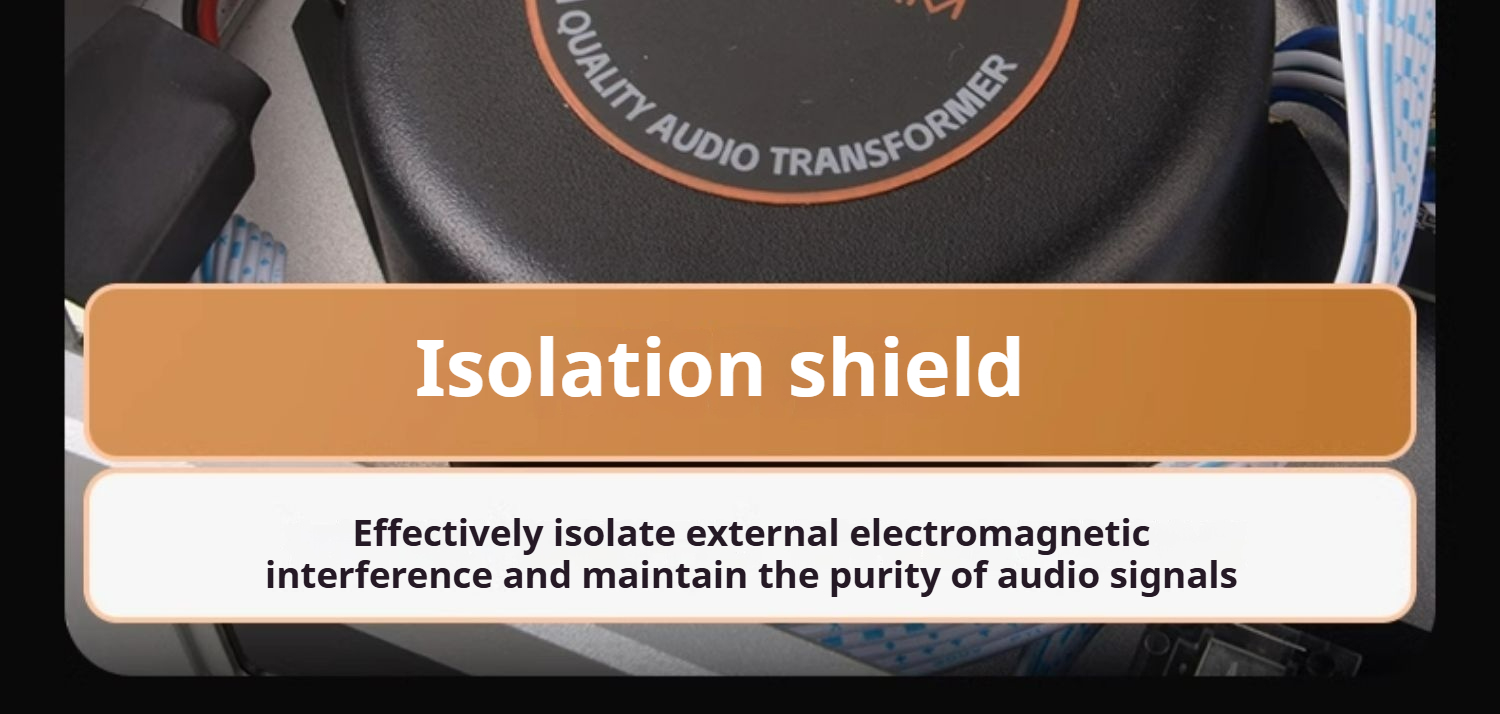

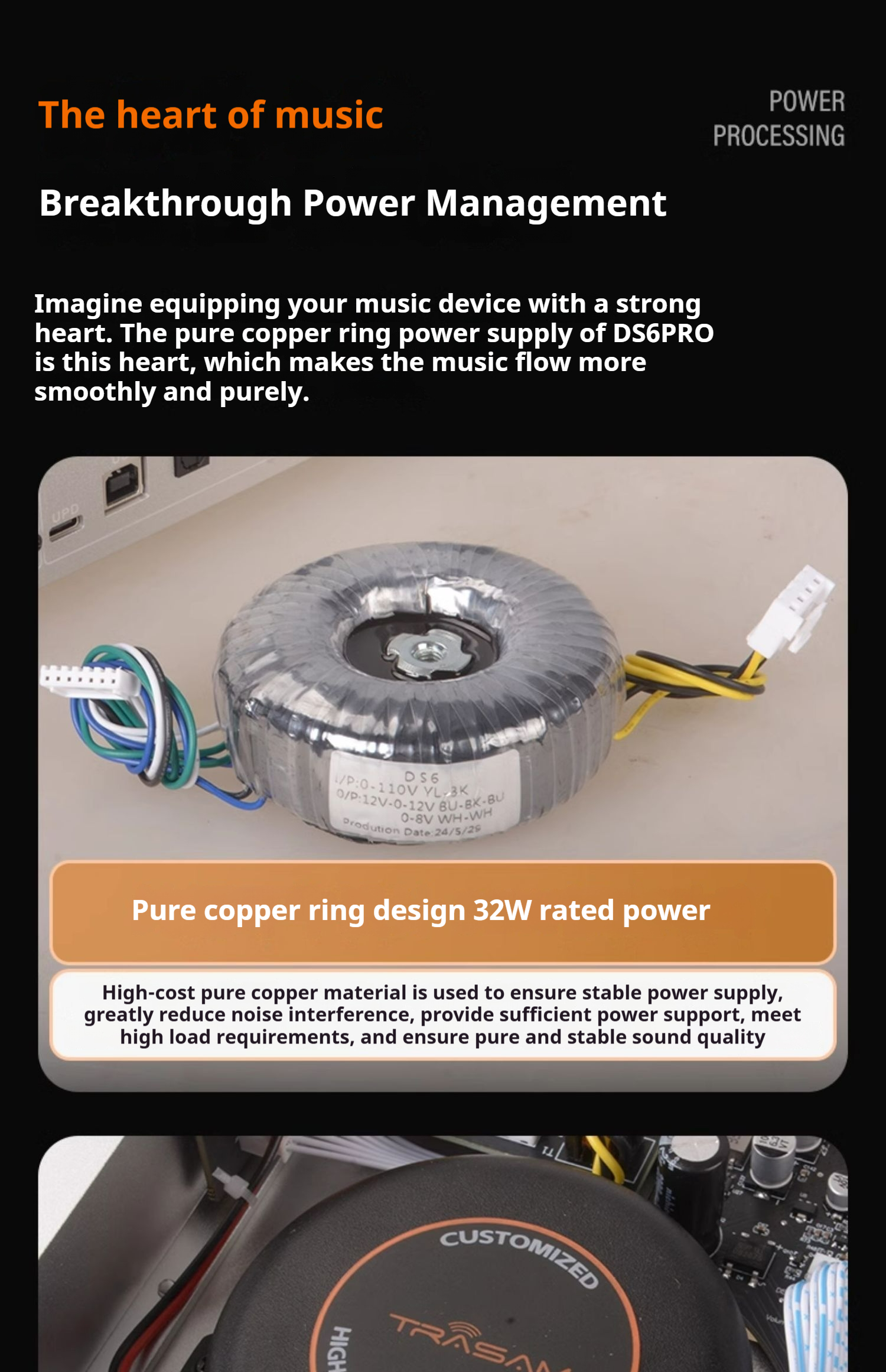

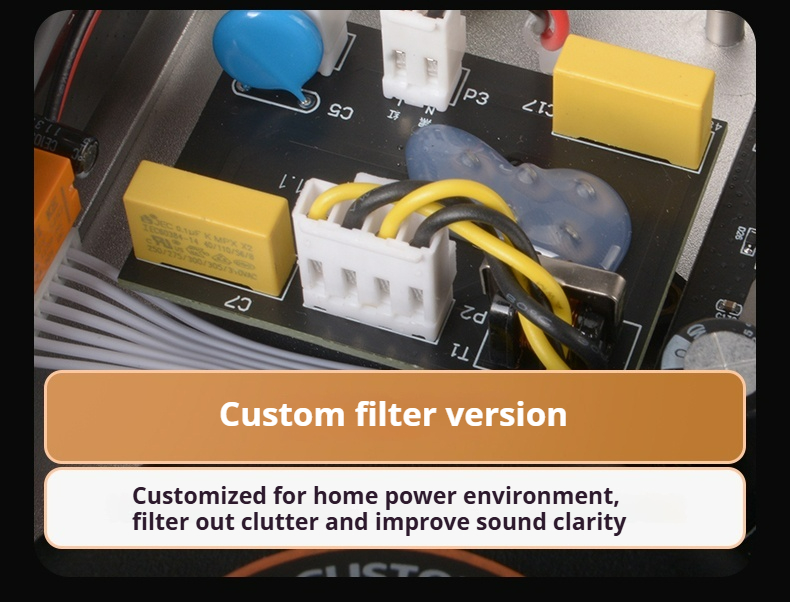

Power supply:Audio-specific anti-interference toroldal transformer

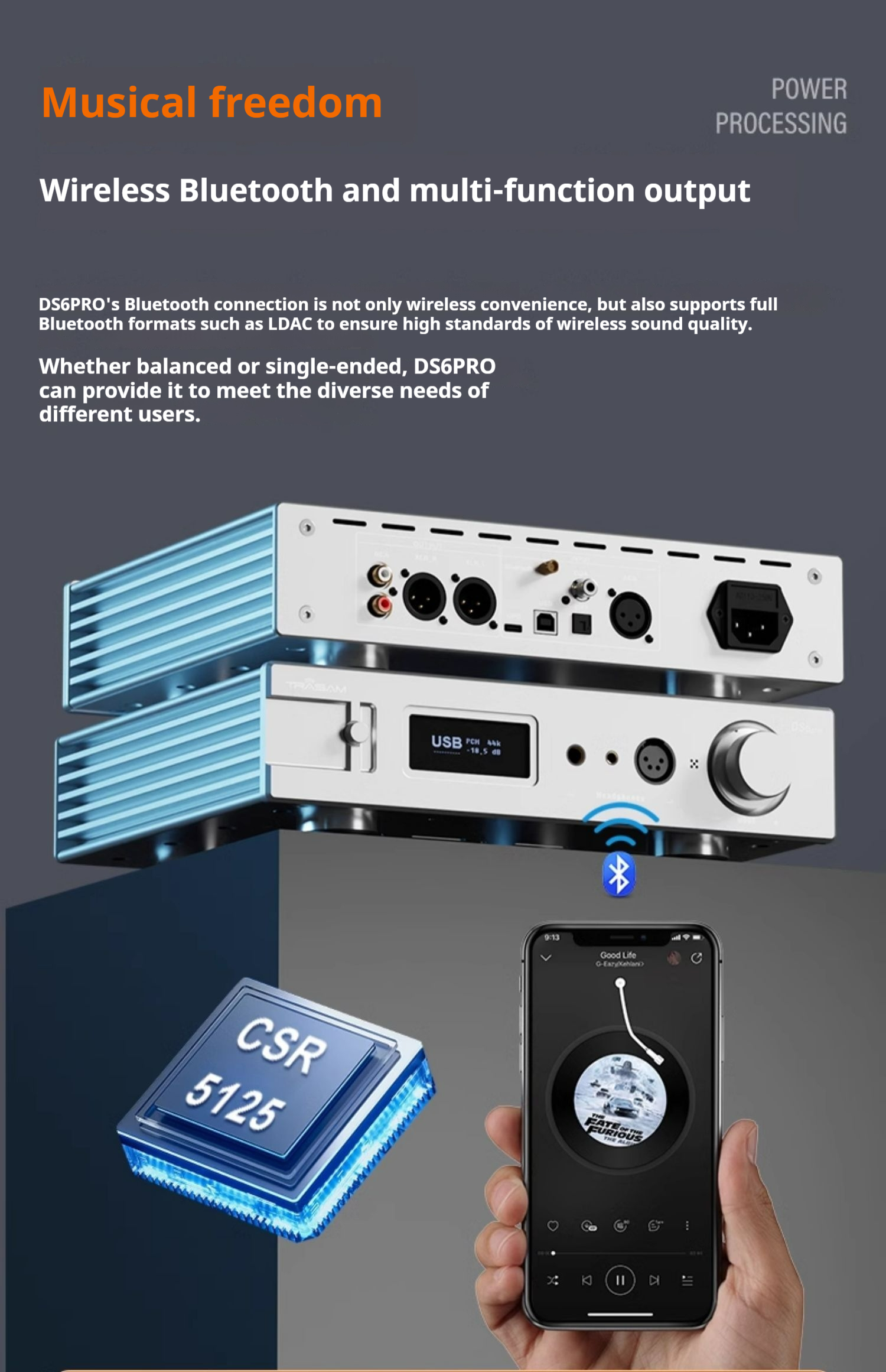

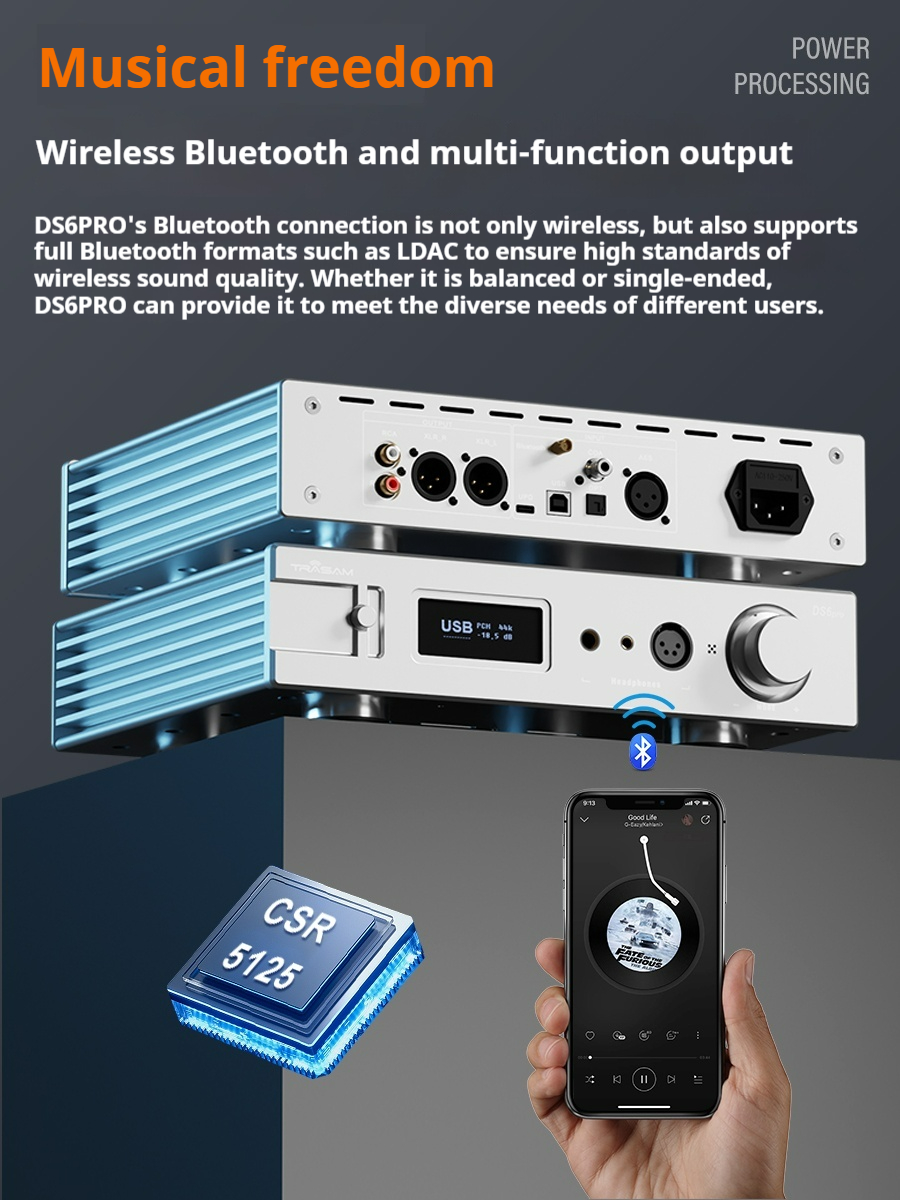

Bluetooth Audio Input:Qualcomm QCC5125; Bluetooth moduleBluetooth version:5.0;Support APTX/APTX-LL/APTXHD/LDAC/SBC/AACBluetooth Audio

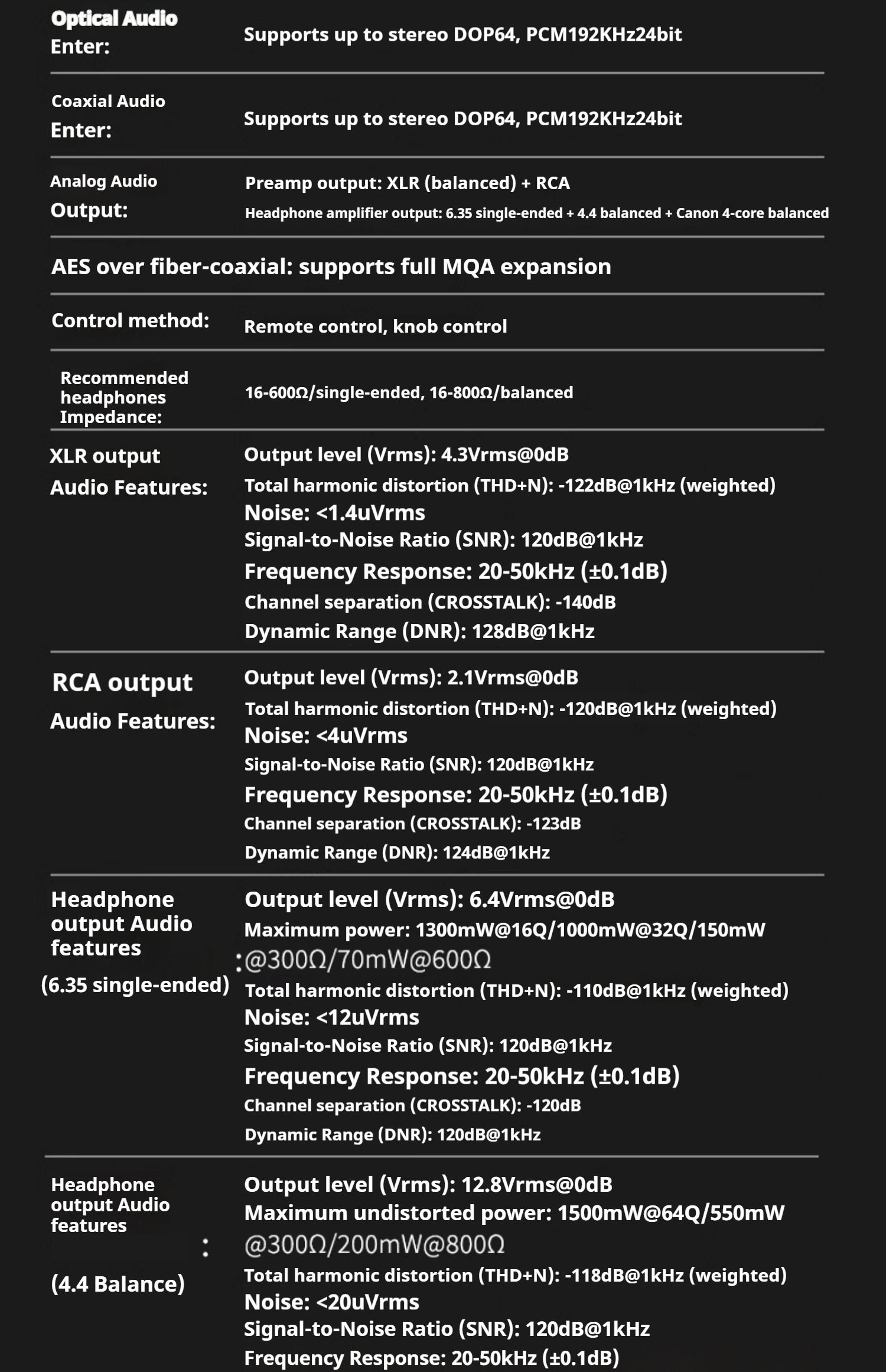

Optical Audio Enter:Supports up to stereo DOP64,PCM192KHz24bit
Coaxial Audio Enter:Supports up to stereo DOP64,PCM192KHz24bit

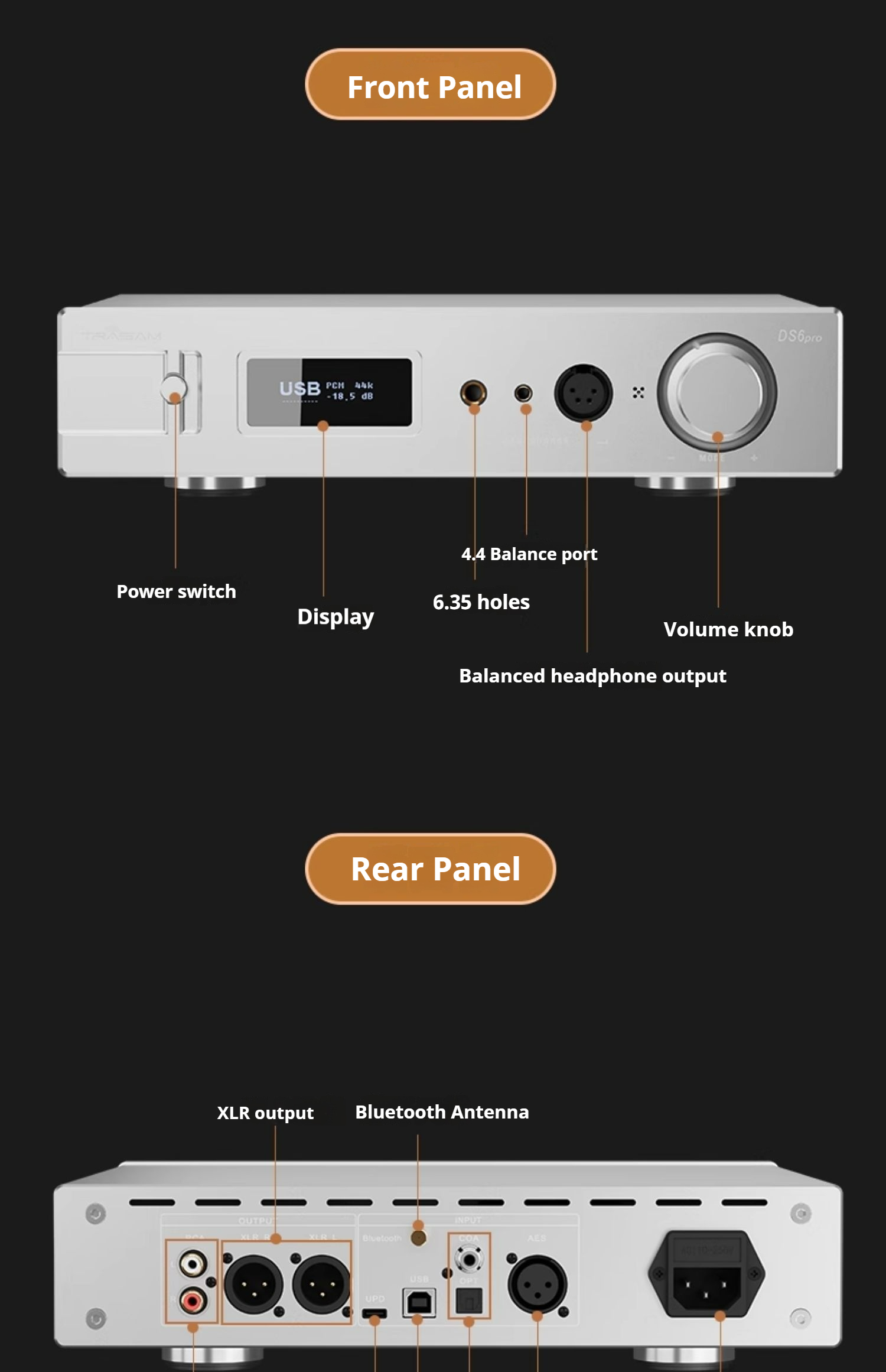

Analog Audio Output:Preamp output;XLR(balanced)+RCAHeadphone amplificr output: 6,35 single-endcd + 4.4 balanced + Canon 4-core balanced
AES over fiber-coaxial:  Supports full MQA expansion
Recommended headphones Impedance:16-800Ω/single-ended, 16-800Ω/balanced
XLR outputAudio Features:Output level (Vrms): 4.3Vrms@0dBTotal harmonic distortion (THD+N):-122dB@1kHz(weighted)Noise:<1.4uVrmsSignal-to-Noise Ratio (SNR):120dB@1kHzFrequency Response:20-50kHz(±0.1dB)Channel separation(CROSSTALK): -140dBDynamic Range(DNR): 128dB@1kHz
RCA output Audio Features:Output level(Vrms):2.1Vrms@0dB
Total harmonic distortion (THD+N):-120dB@1kHz (weighted)Noise: <4uVrmsSignal-to-Noise Ratio(SNR): 120dB@1kHzFrequency Response:20-50kHz(±0.1dB)Channel separation(CROSSTALK):-123dB
Dynamic Range (DNR): 124dB@1kHz
Headphoneoutput Audio features(6.35 single-ended):Qutputlevel(Vrms):6,4Vrms@0dB
Maximum power:1300mW@160/1000mW@320/150mW @3000/70mW@6000
Total harmonic distortion (THD+N):-110dB@1kHz (weighted)Noise:<12uVrmssignal-to-Noise Ratio (SNR):120dB@1kHZFrequency Response:20-50kHz(+0.1dB)Channel separation (CROSSTALK):-120dB
Channel separation(CROSSTALK):-123dBDynamic Range (DNR):125dB@1kHz

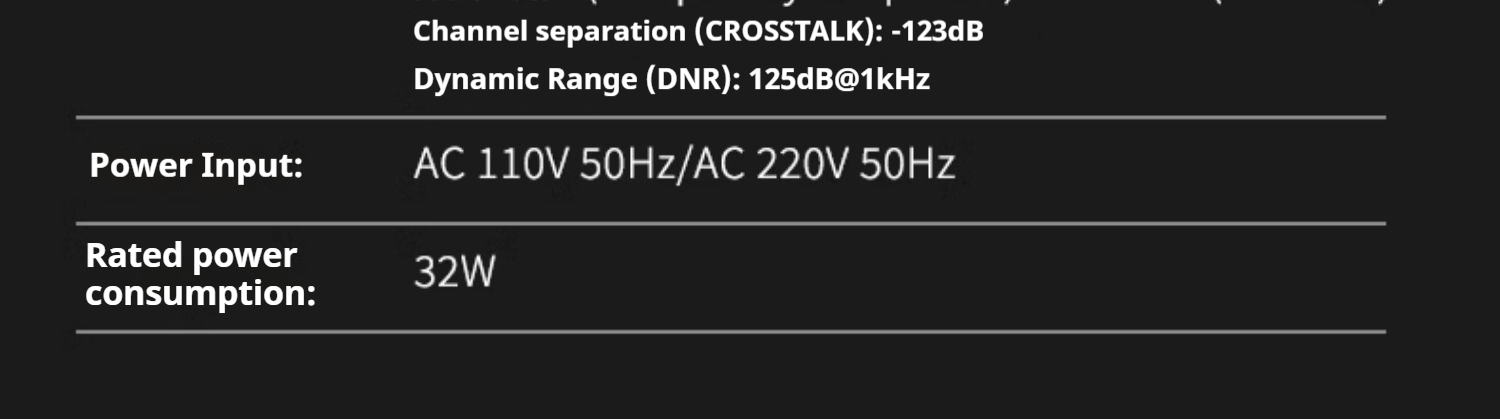

Power Input:AC 110V 50Hz/AC 220V 50Hz
Rated powerconsumption:32W
