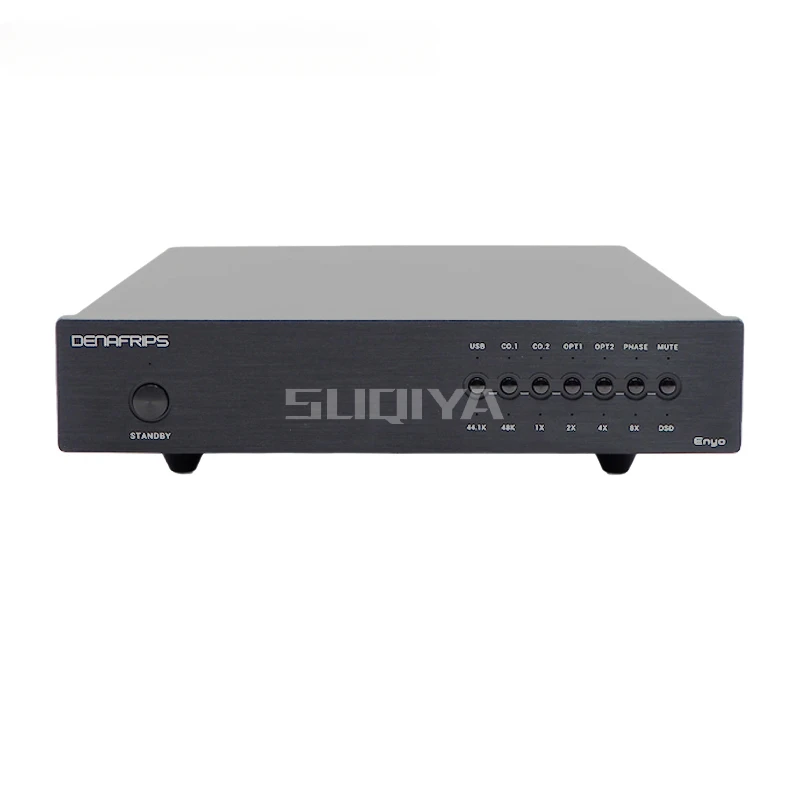

SUQIYA-Enyo Digital Audio Decoder Low Noise Power Supply R2S+DSD Architecture FIFO Buffer

R2R +DSD architecture
True balanced 24-bit R2R +6-bit DSD (32-stage F FIR filter)
Low thermal effect, high precision hand-matched 0.01% resistors
Nanosecond crystals
45.1548MHz, 49.152MHz
Low noise power supplies
FIFO buffers
Digital signal processing via FPGA
DSD1024, PCM1536 support USB input
Proprietary USB audio solution via STM32F446 advanced MCU based on AMR
Licensed Thesycon USB driver for Windows platform
Driverless on Mac & Linux
DSD64-DoP connects all inputs
DSD1024*only for USB input phase control processor
24-bit/44.1, 48, 88.2, 96, 176.4, 192KHz on all inputs
1536kHz* on USB input
Sampling mode: Oversampling OS/Non-oversampling NOS

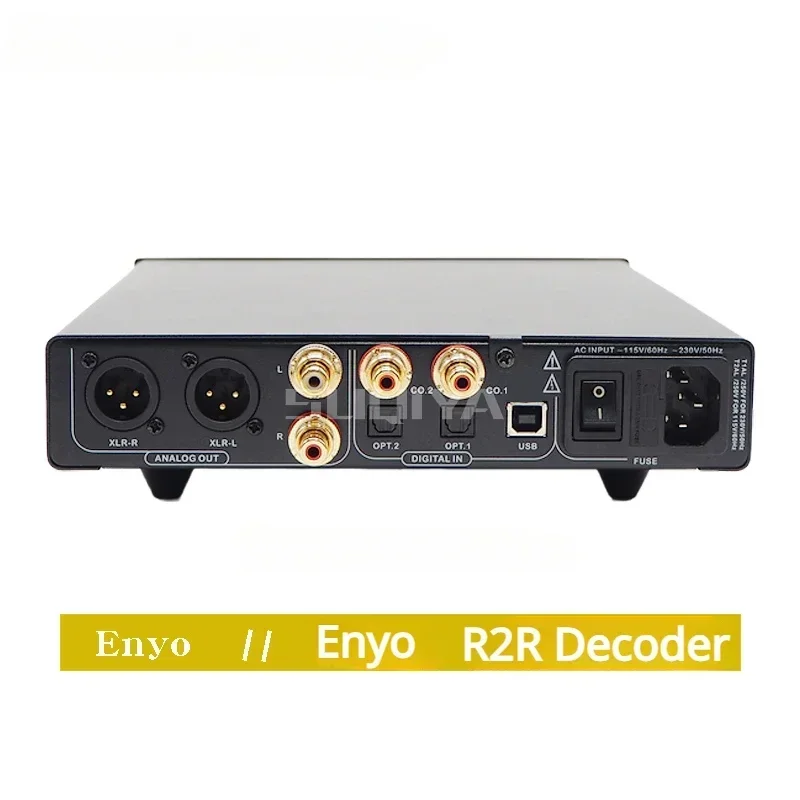

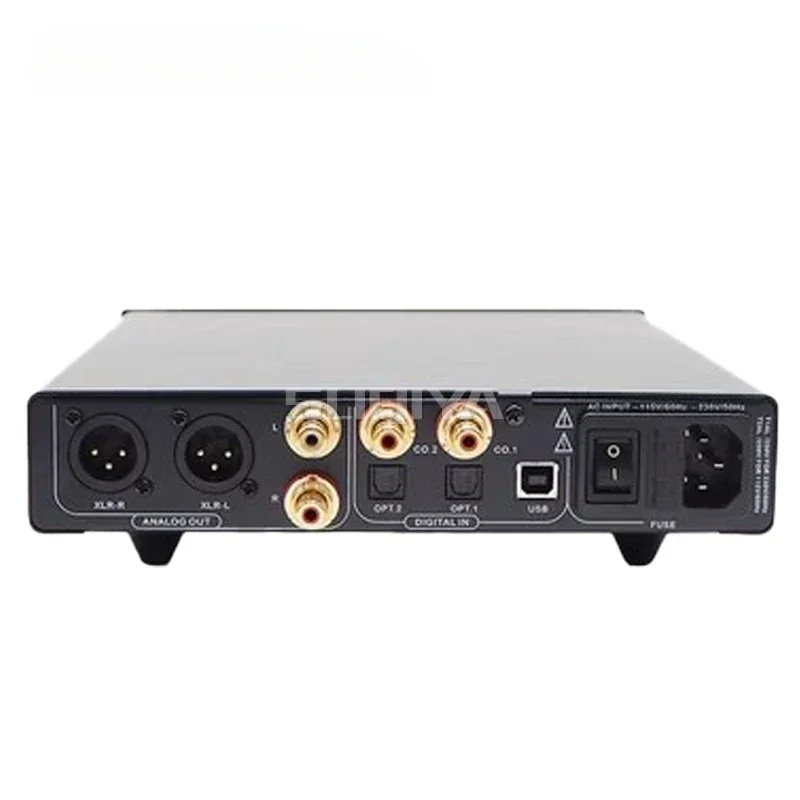

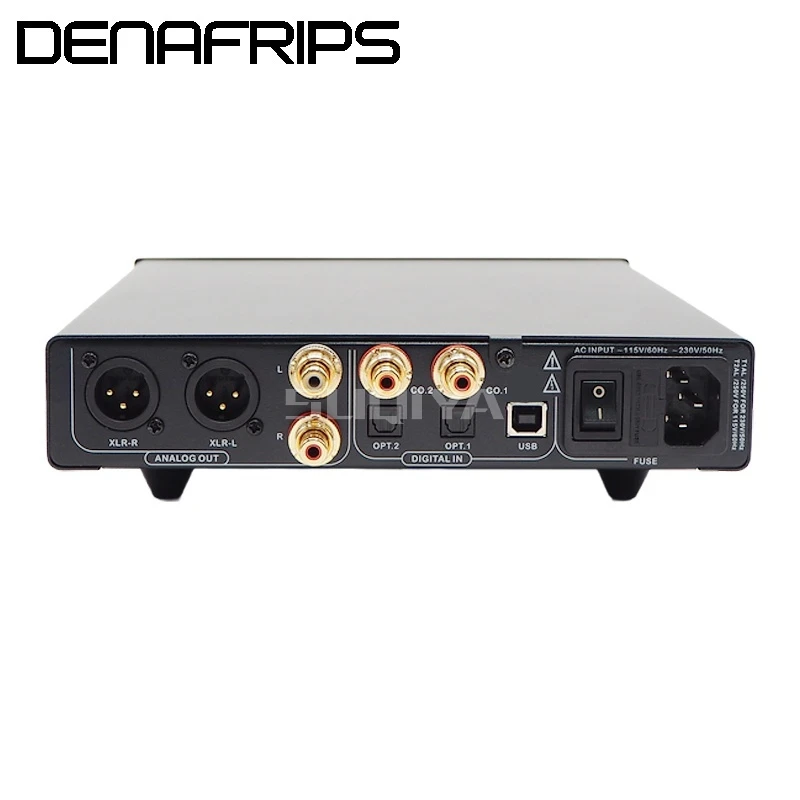

Digital input
C01 C02 Input
OPT1 OPT2 Input
USB Input
Analog Output
RCA at 2.0Vrms, 625Ω
XLR at 4. 0Vrms, 1250Ω
Frequency Response: 20-70KHz -3dB
Total Harmonic Error +N: 0.004%
Signal to Noise Ratio: 115dB
Dynamic Range: >119dB
Stereo Crosstalk: -124dB
AC Power Requirement: 100-240VAC, 50/60Hz (Worldwide Voltage, Manual Selector)
Fuse: T2A/250VAC. 5x20mm 2A Slow Blow
Power Consumption: ≤20W
Dimensions: 215W X 230D X45H (inch + 18mm)
Package Size: 375X 330X115mm
Package Contents: DAC*1 without power cord and remote control.
Weight: 3.5kg
Color: Black
