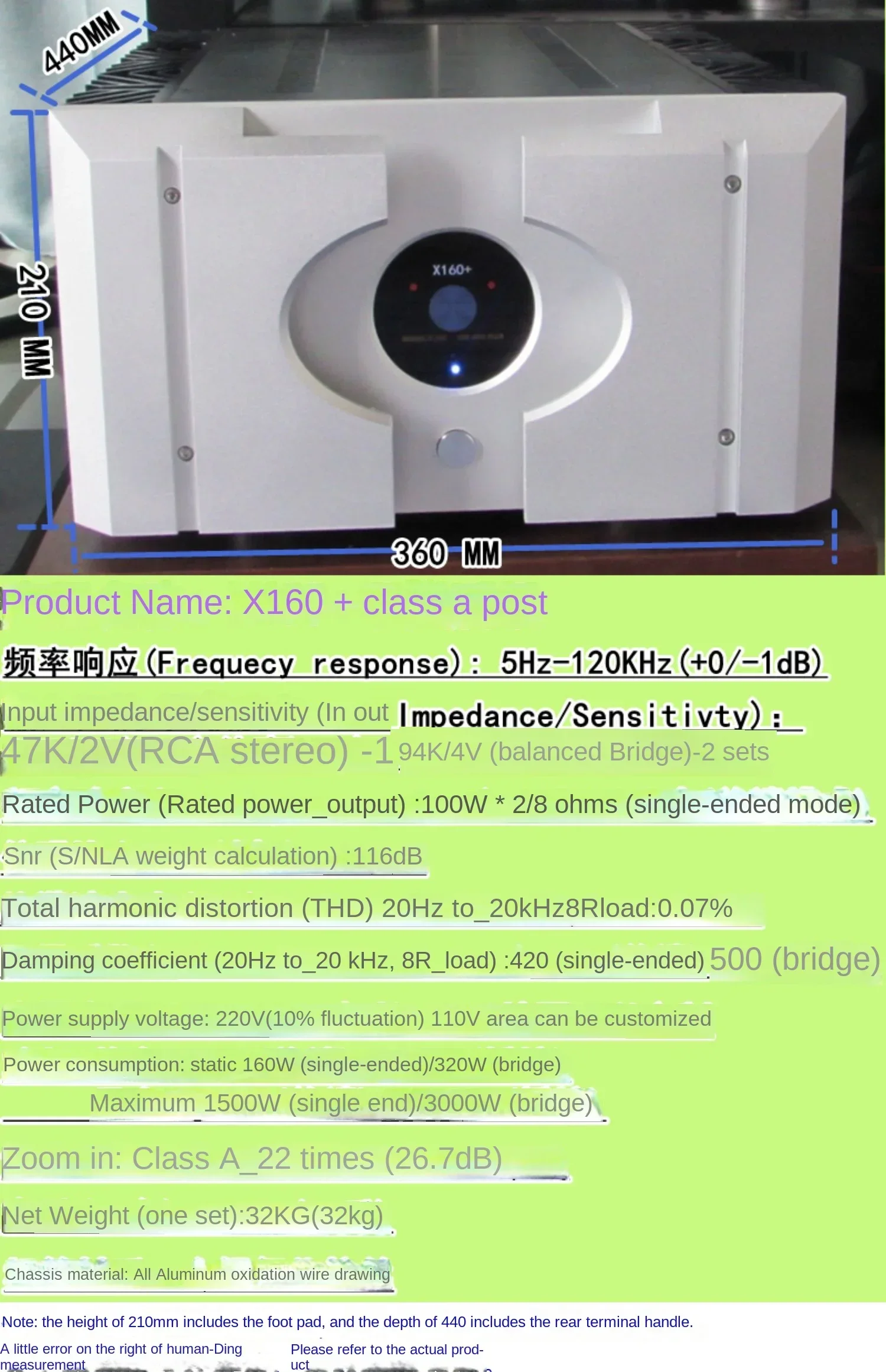

Product Parameters::

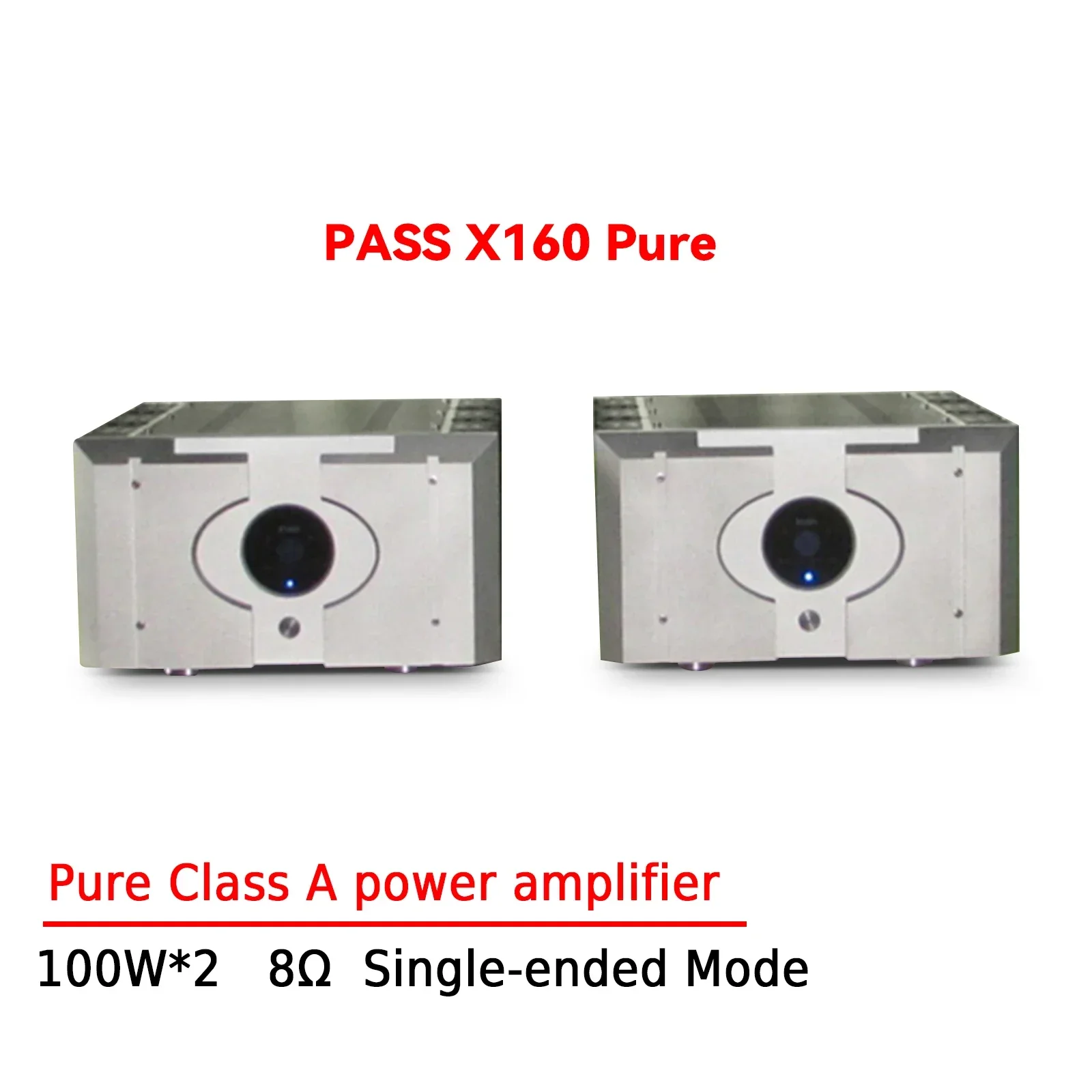

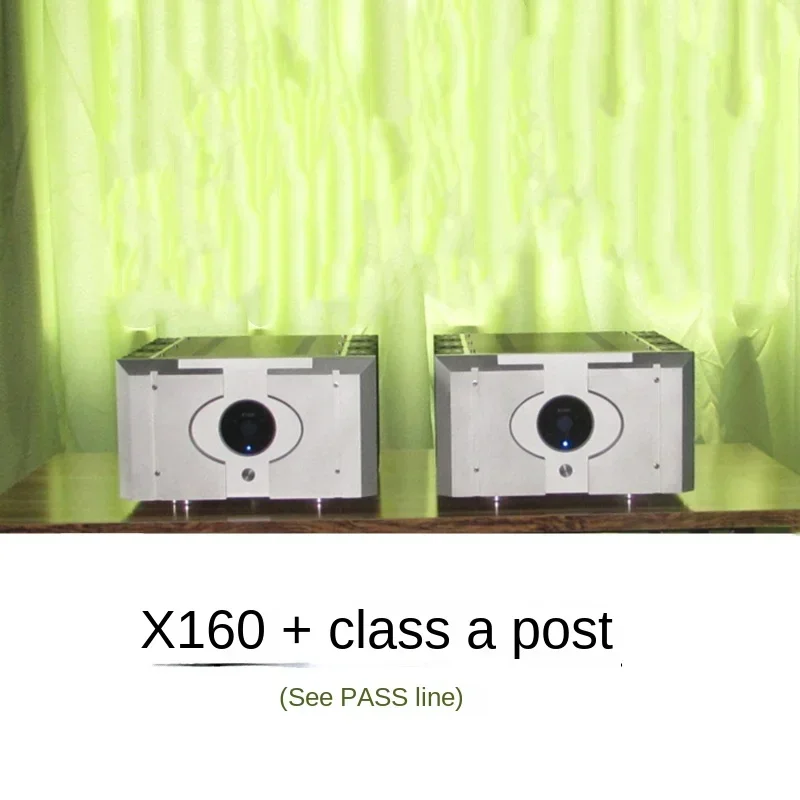

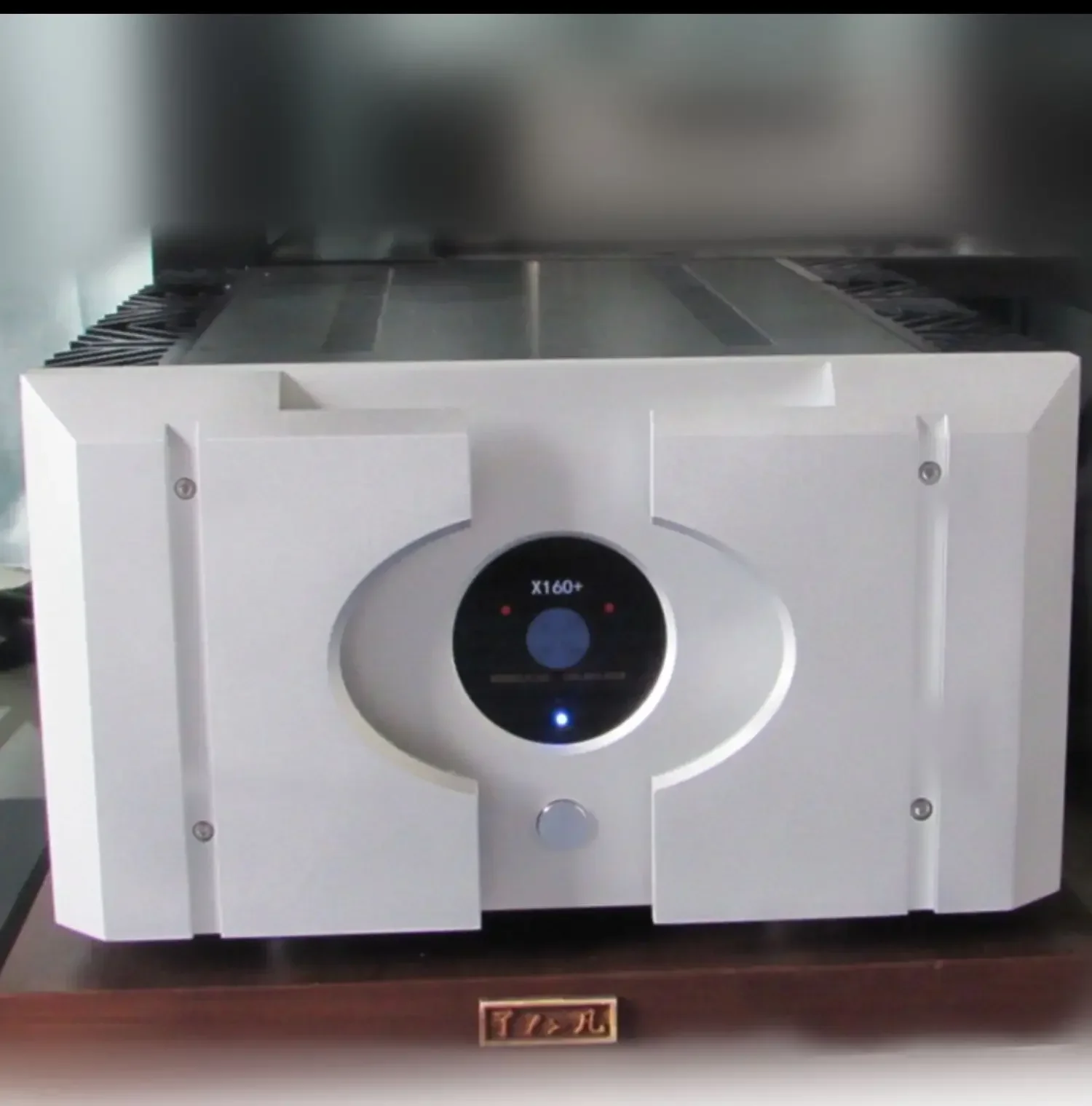

Product name: X160+ Class A power amplifier
Frequency response (Fre que cy_response): 5Hz-120KHz (+0/=1dB)
Input impedance/sensitivity (In out_Impedance/Sensitiv ty):

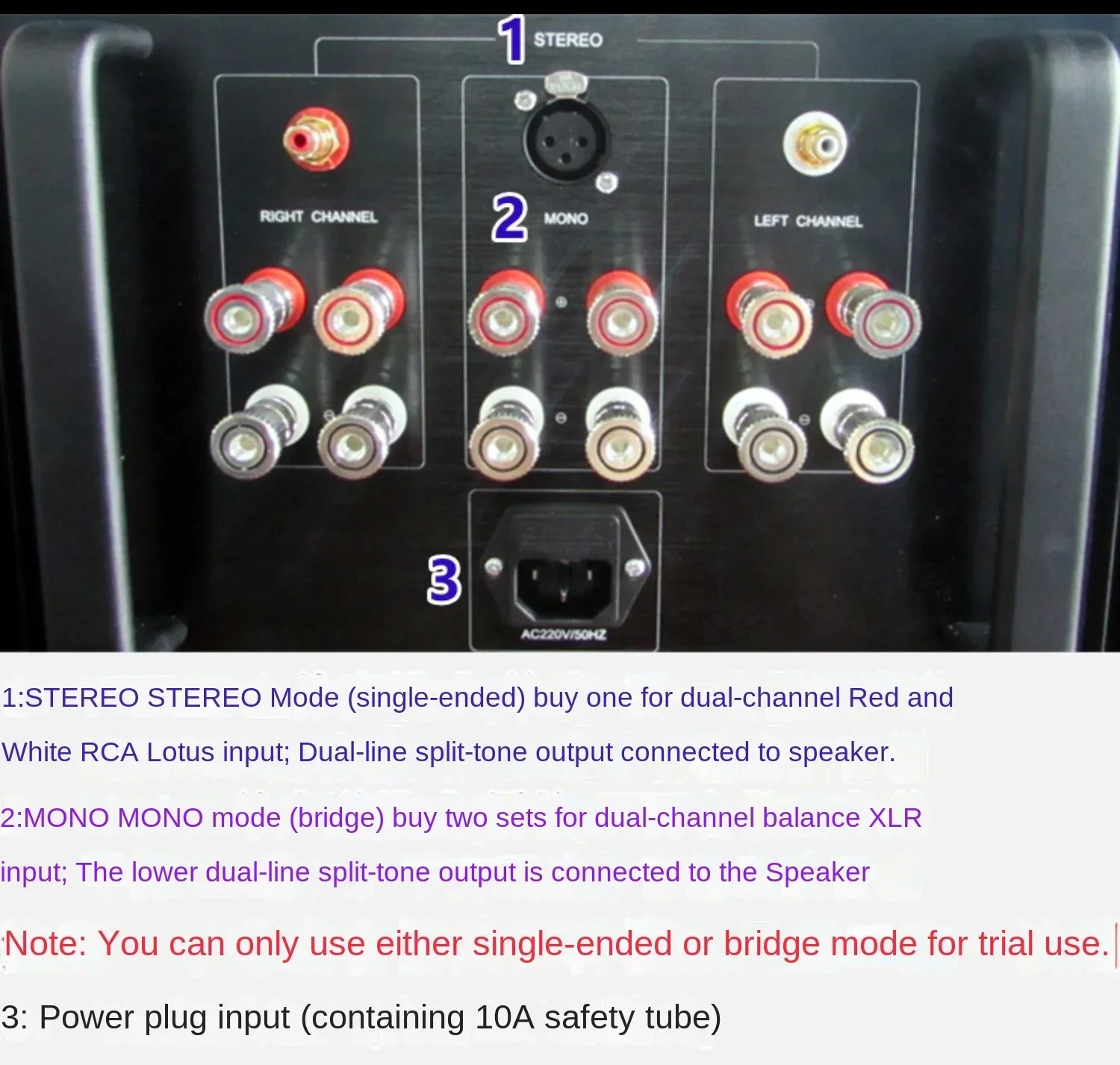

47K/2V (RCA stereo) -1 set 94K/4V (balanced bridge) =2 sets
Rated power (Rated power_output): 100W*2/8 ohms (single-ended mode)
Signal-to-noise ratio (S/N_A weighting): 116dB
Total harmonic distortion (THD) _20Hz to_20kHz_8Rload: 0.07%
Damping coefficient (20Hzto20kHz.8R_load): 420 (single-ended) 500 (bridged) Power supply voltage: 220V (10% fluctuation) 110V area can be customized
Power consumption: static 160 watts (single-ended)/320 watts (bridged)
Maximum 1500 watts (single-ended)/3000 watts (bridged)
Amplification working mode: Class A 22 times (26.7dB)
Net weight (one set): 32KG (64 pounds)
Chassis material: all aluminum oxidation brushed
