Line characteristics

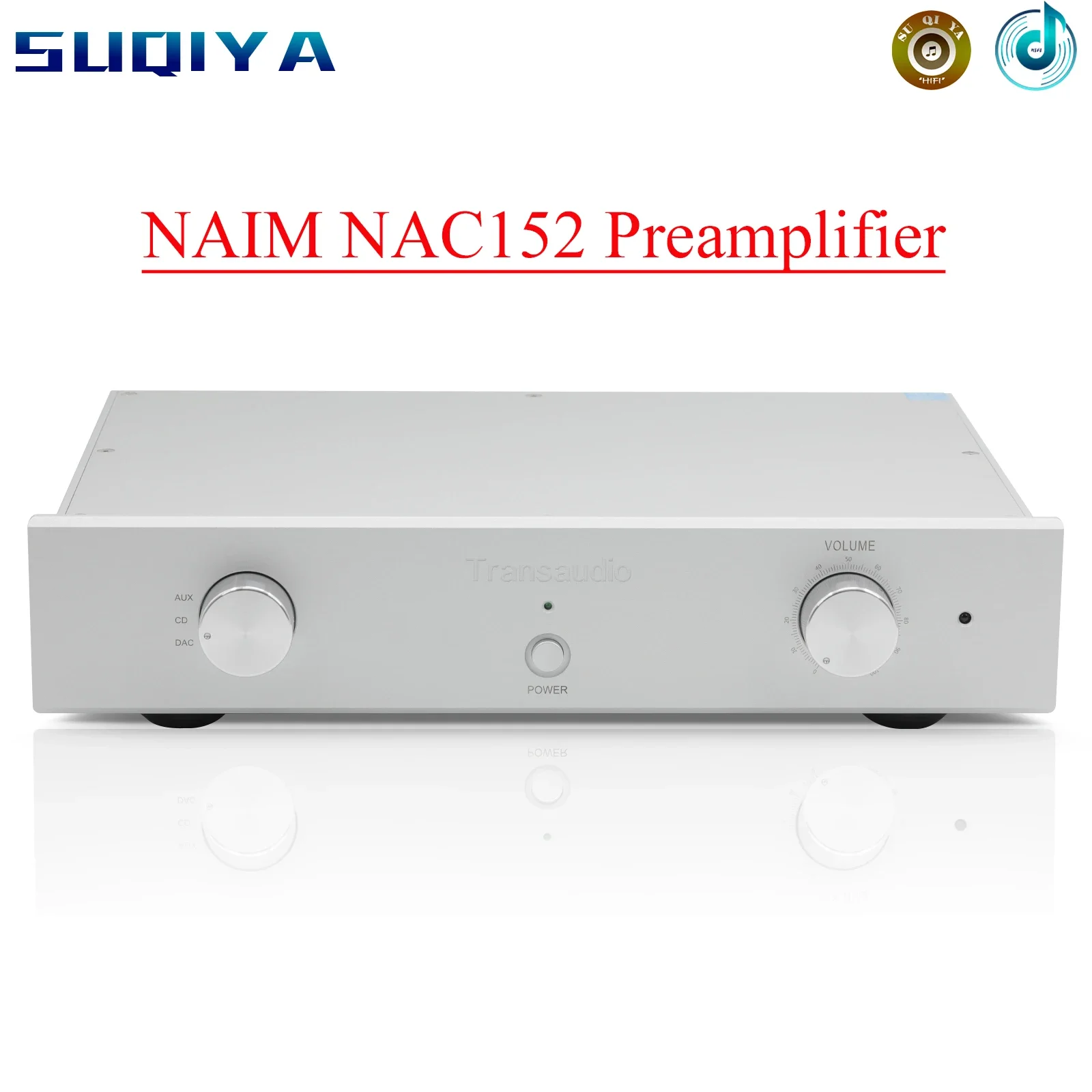

Originated from naim's flagship preamplifier NAC152, the circuit is exactly the same as the original machine
Careful pairing, debugging, testing and production

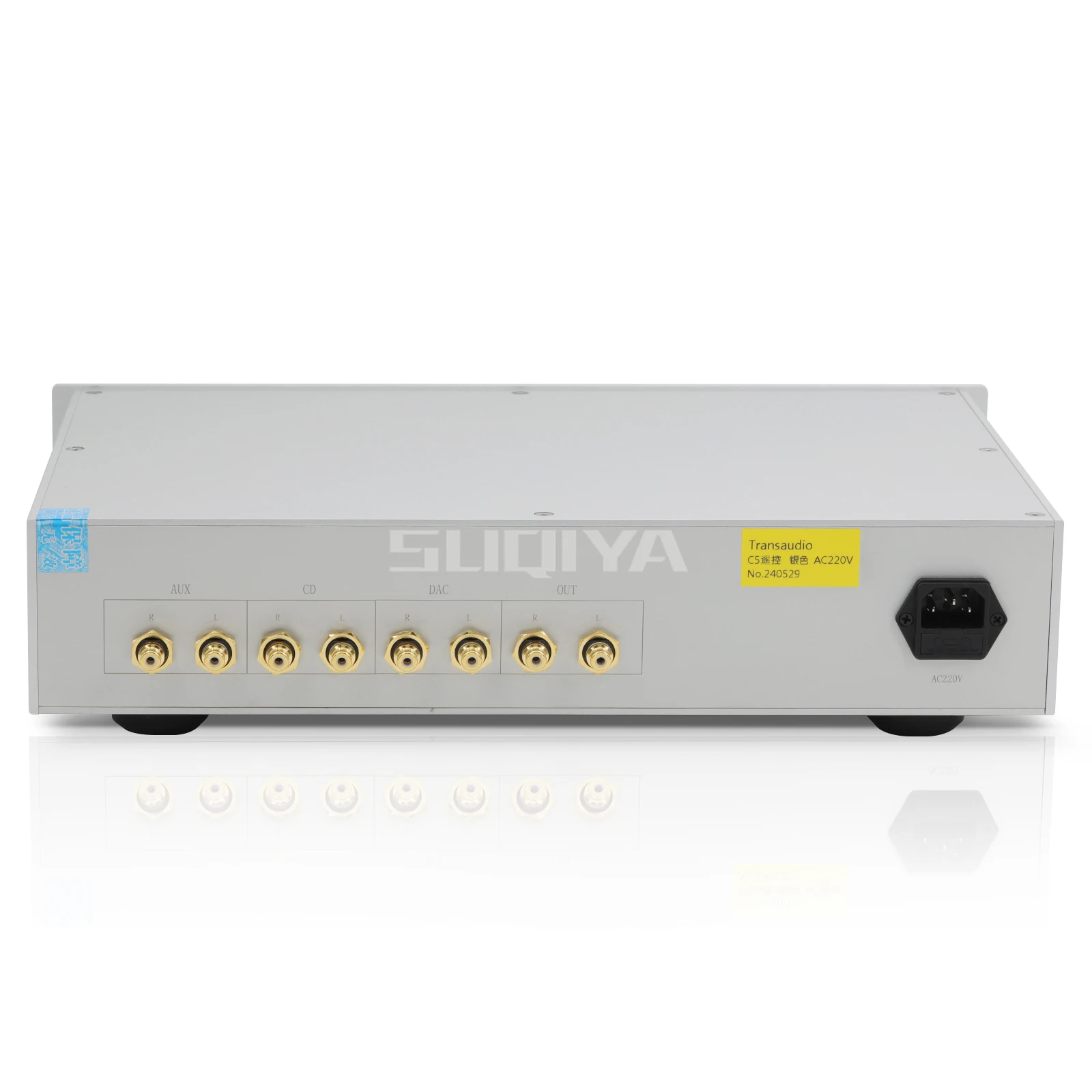

3 single-ended inputs, 1 single-ended output
The left and right channels are independently powered and electrically completely separated, which is better than the original machine.

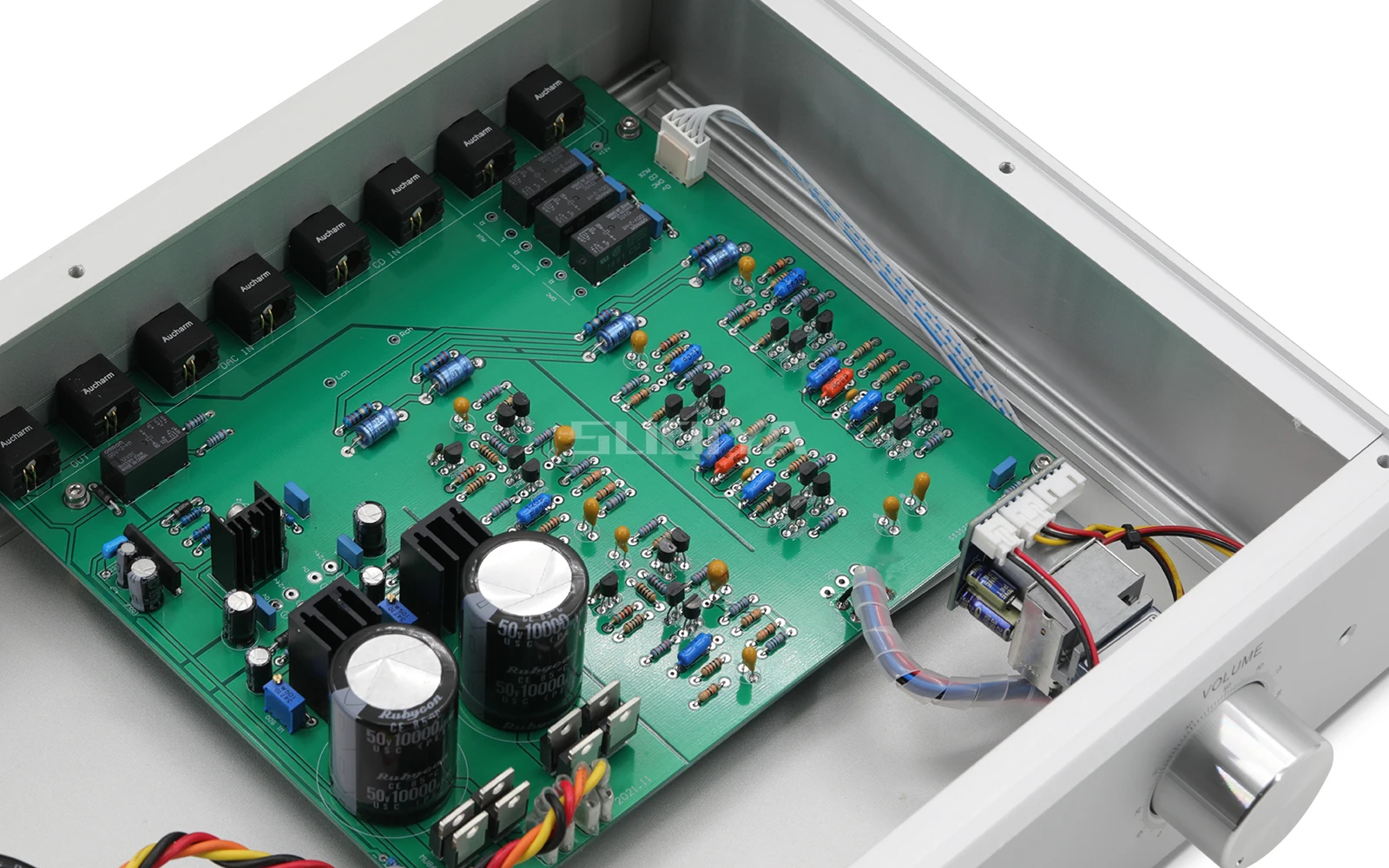

Fully discrete component design
Listening experience
C5 is a single-ended Class A preamplifier that can make your ears smell oil. Its core circuit is derived from more than 20,000 Mingdu 152
The C5 surpasses the original machine in terms of craftsmanship and sound quality.
In terms of sound quality, the unique Class A circuit gives C5 an extraordinary and unforgettable sound that will make you addicted to it.
C5 has a high cost performance and can easily challenge preamplifiers that cost more than 10 times its price. It is your best choice.
The indelible sound is addictive as soon as you listen to it. The actual sound is dynamic, the mid-range has good moistness, the high and low frequencies have high extension, and it has enough moisture. It is a product recognized by experienced audiophiles.
Production materials

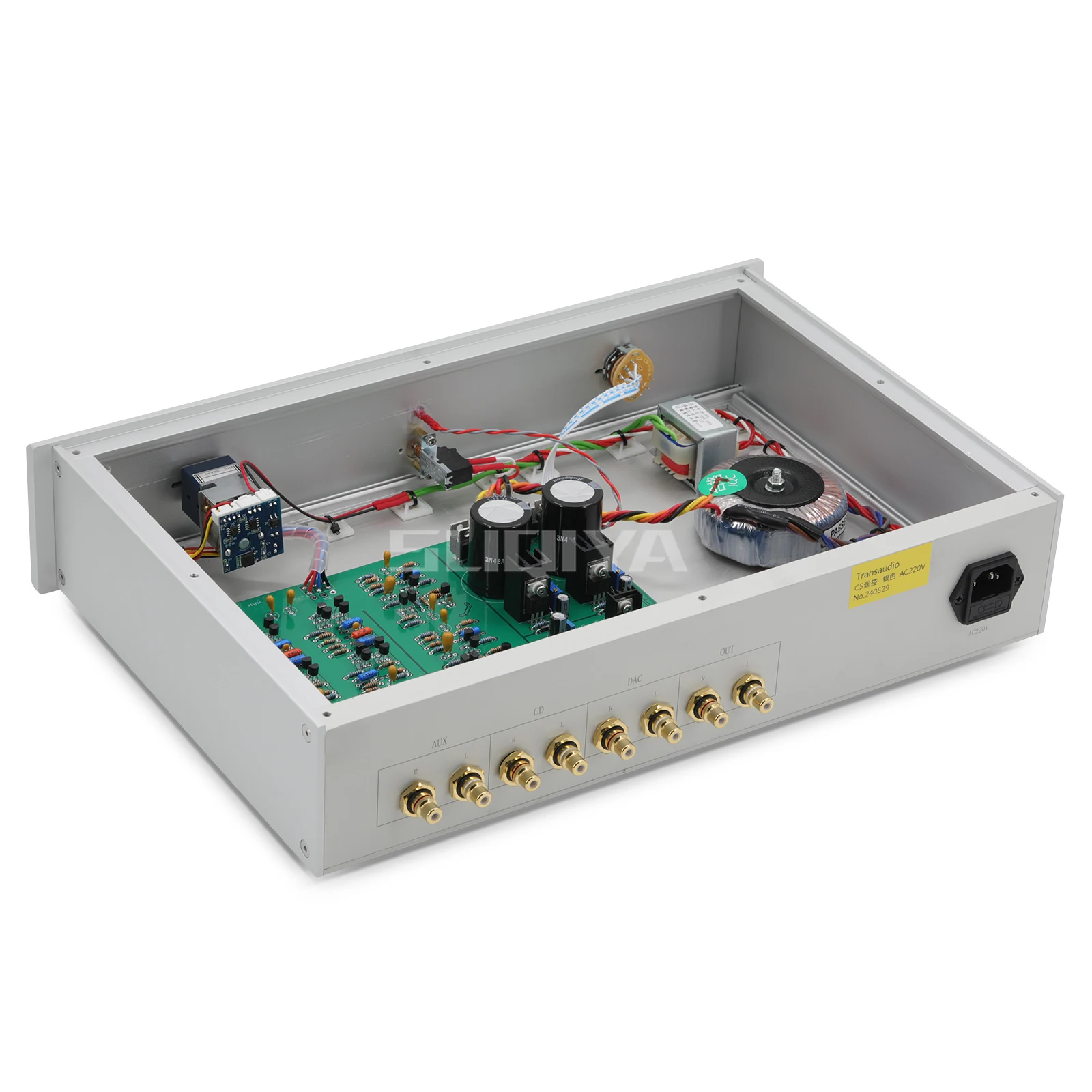

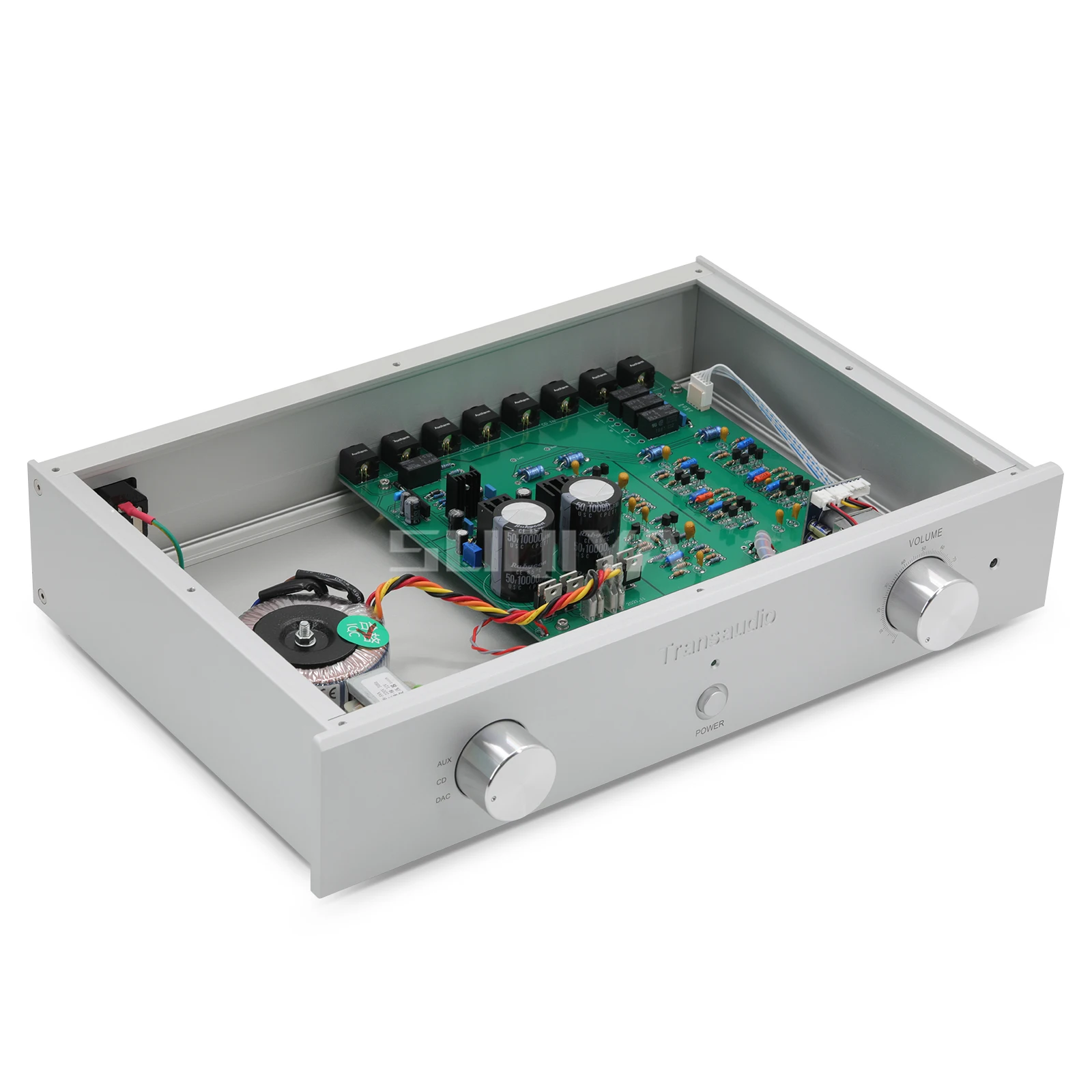

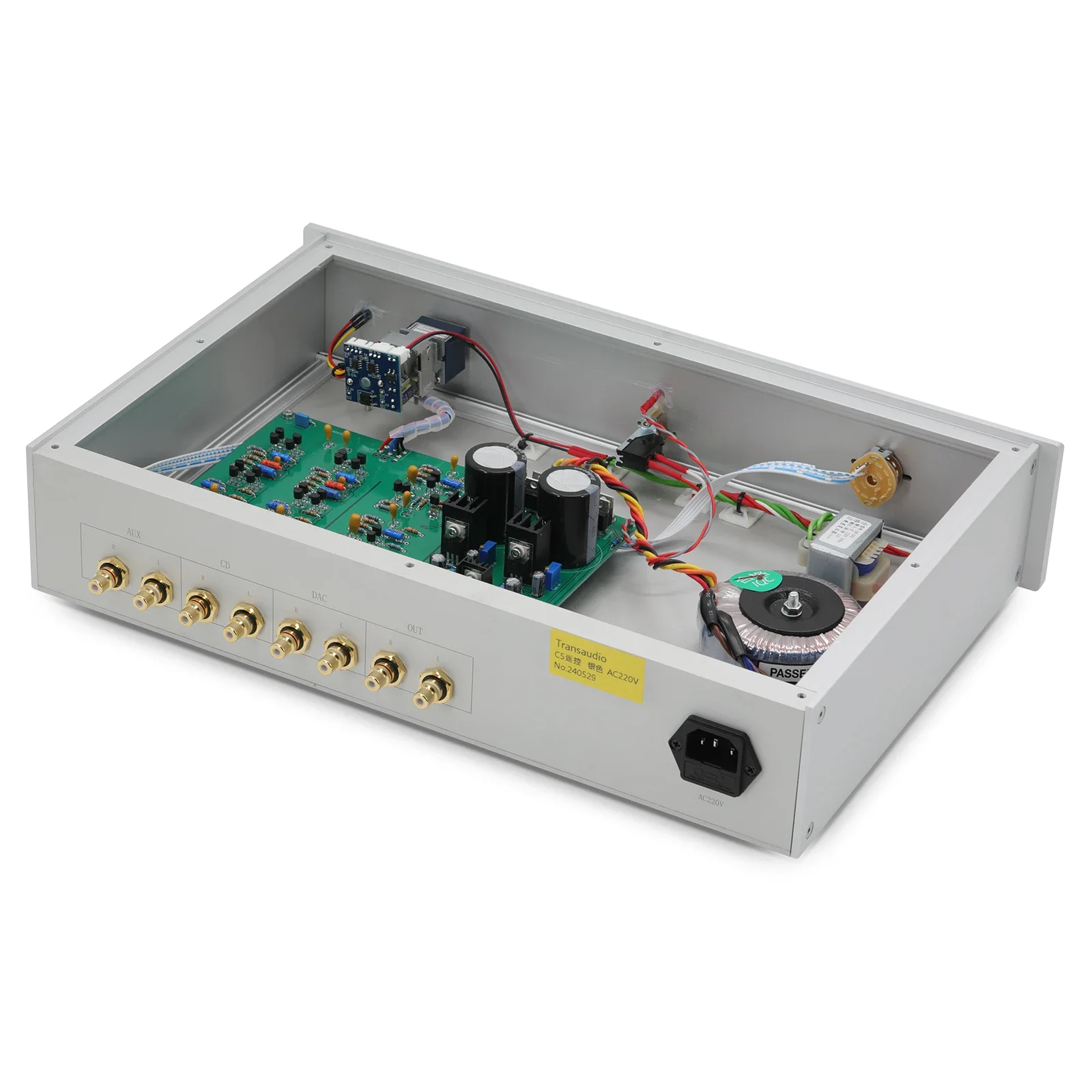

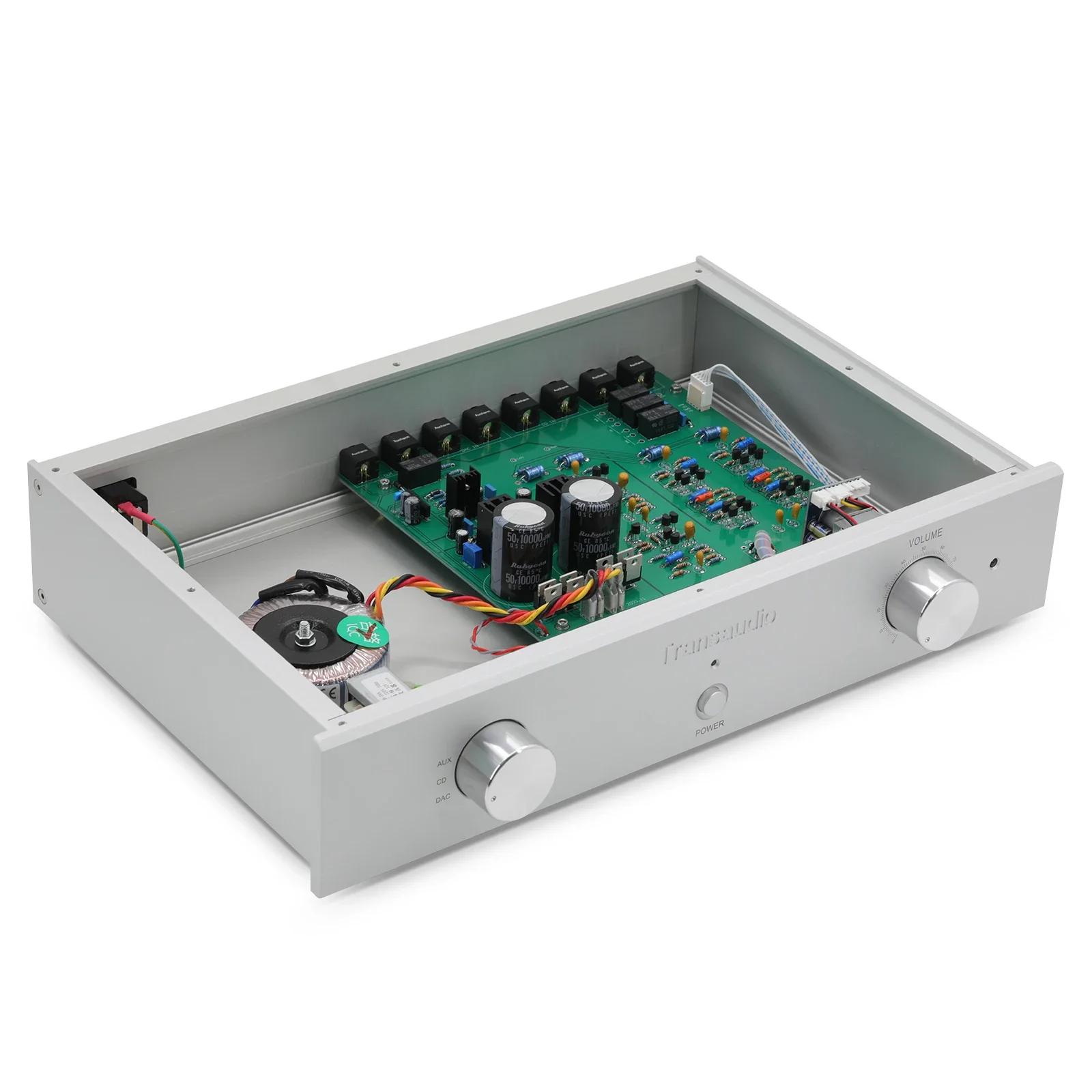

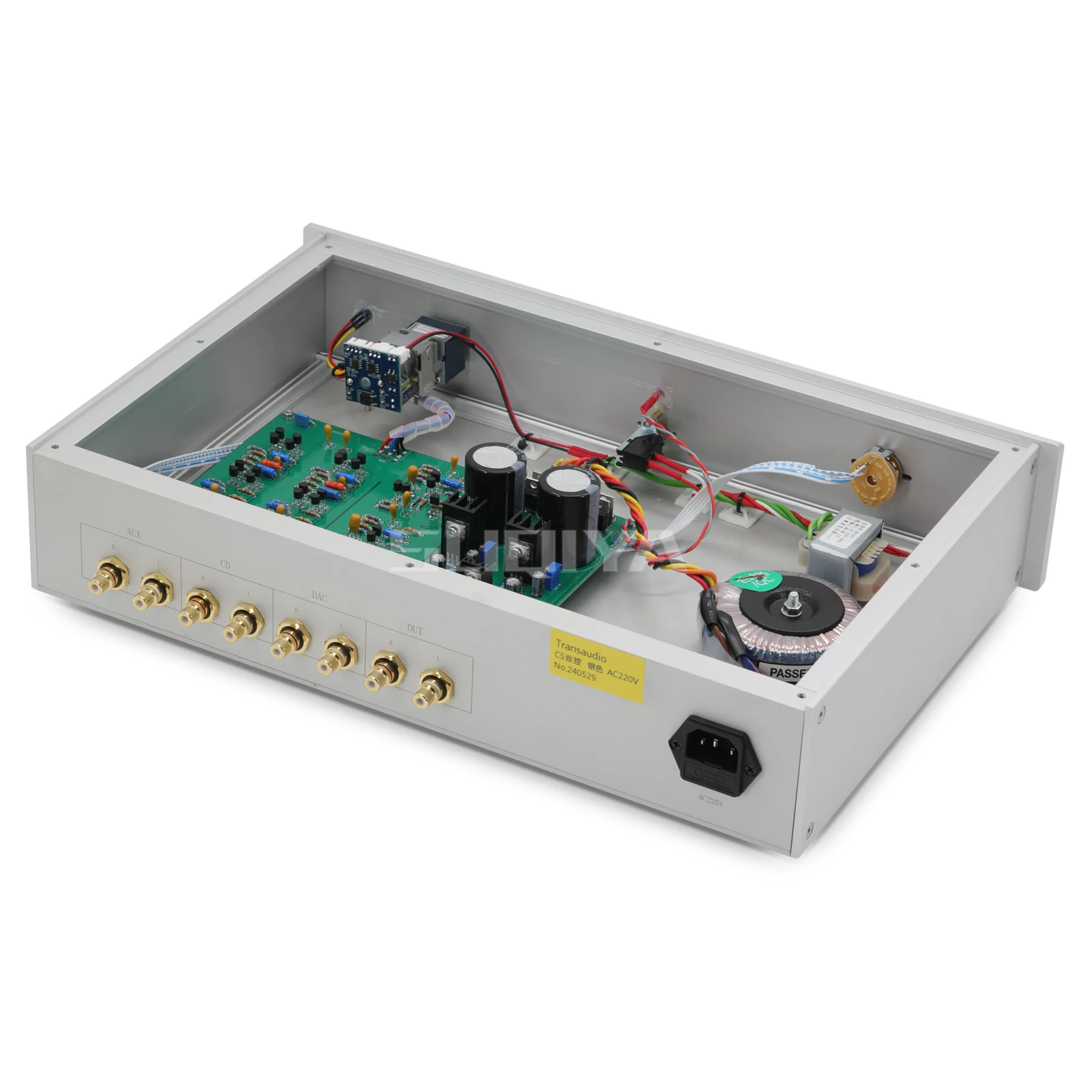

CNC processed all-aluminum chassis 430*80*280mm, total machine weight 7kg
The transistors are the same as those used in the original machine.

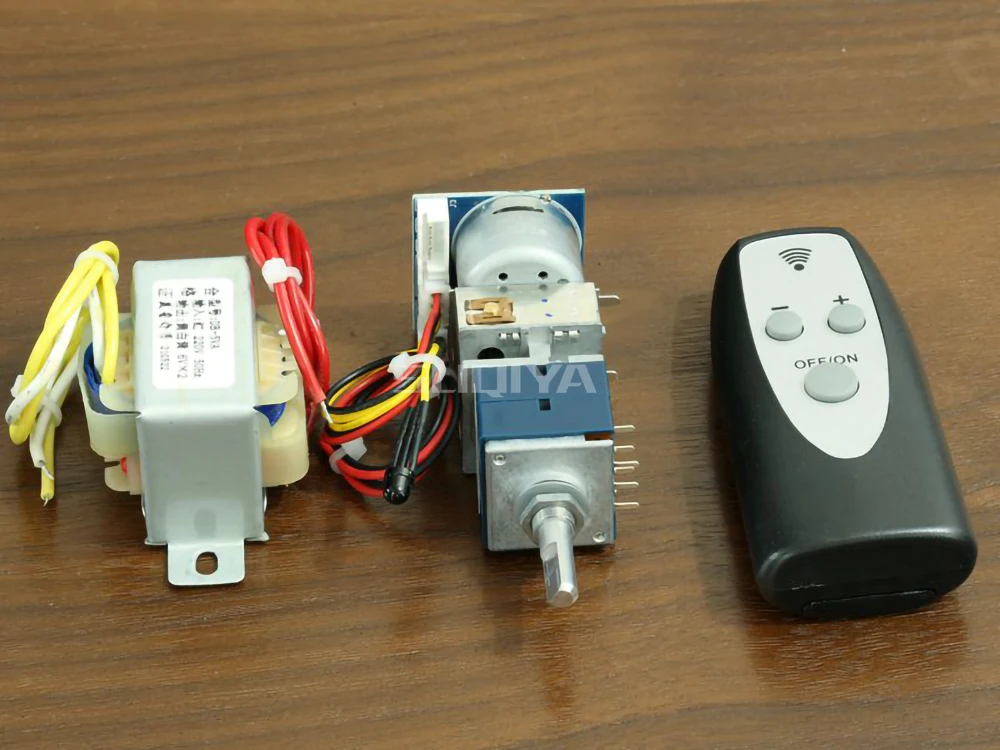

ALPS27 large potentiometer can be added with remote control to adjust the volume

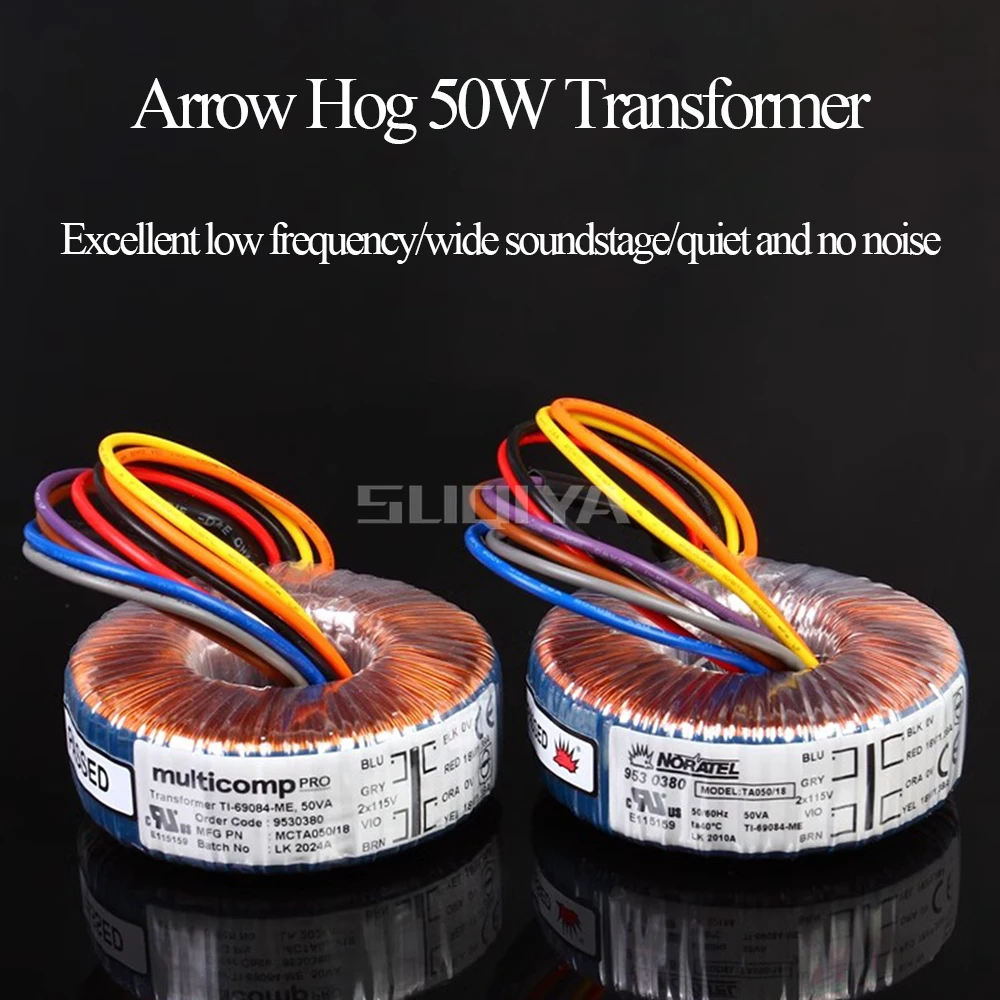

50W Porcupine toroidal transformer power supply supports AC110V or AC230V power supply
Small signal line Taiwan Teflon oxygen-free copper wire
Pure copper Taiwan-made high-quality RCA terminals
The whole machine uses recently produced fever capacitors
Fully imported resistors and adjustable potentiometers
AP assisted design and test parameters

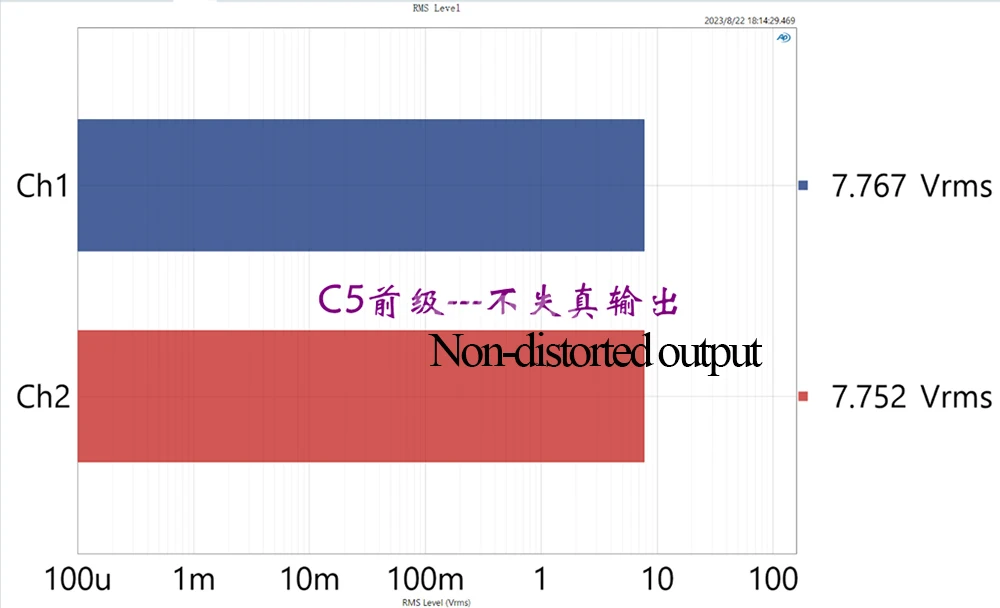

Output effective value: 7.7V

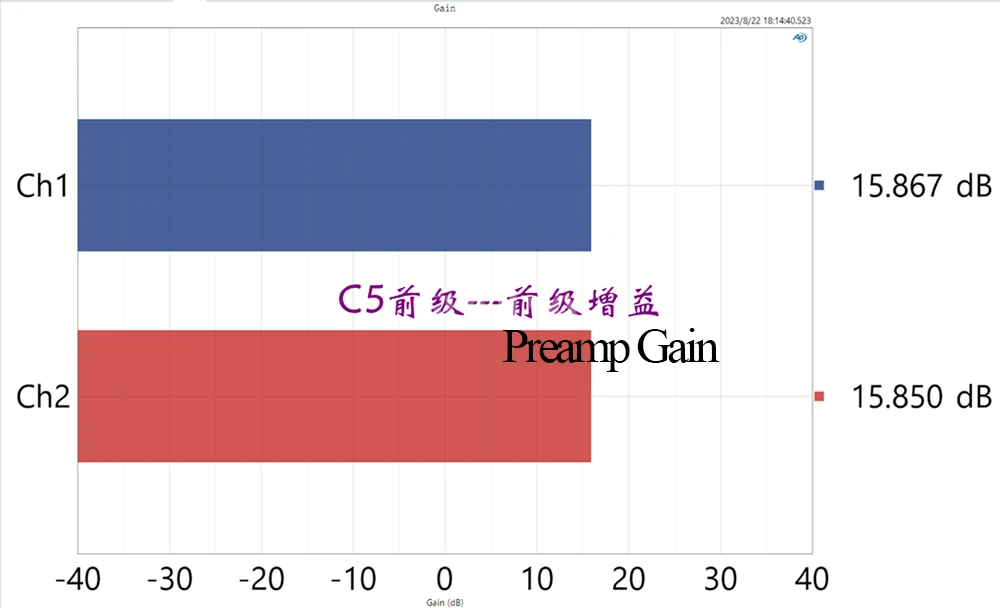

Channel gain: 15.8dB 6.228 times

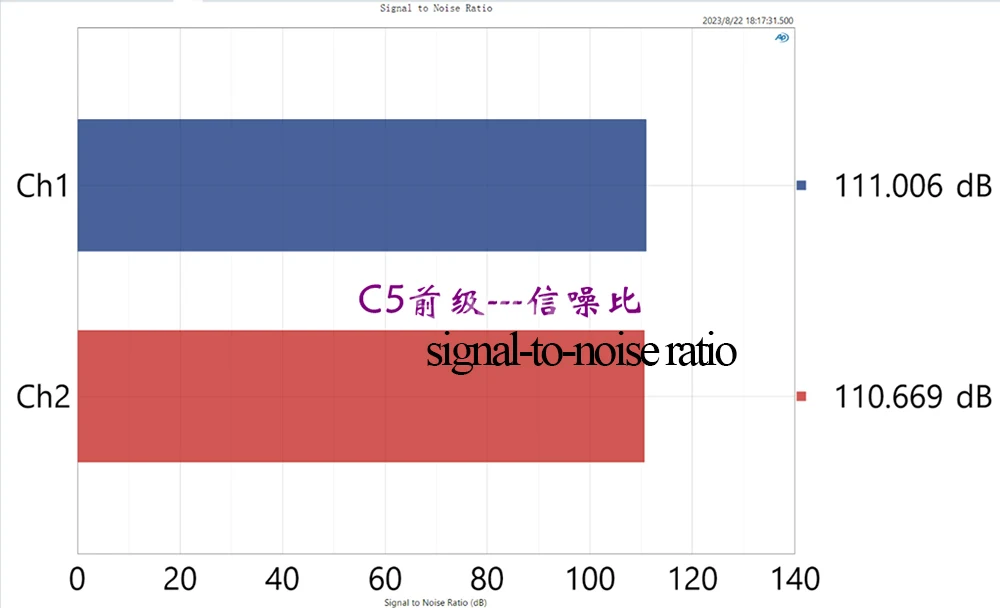

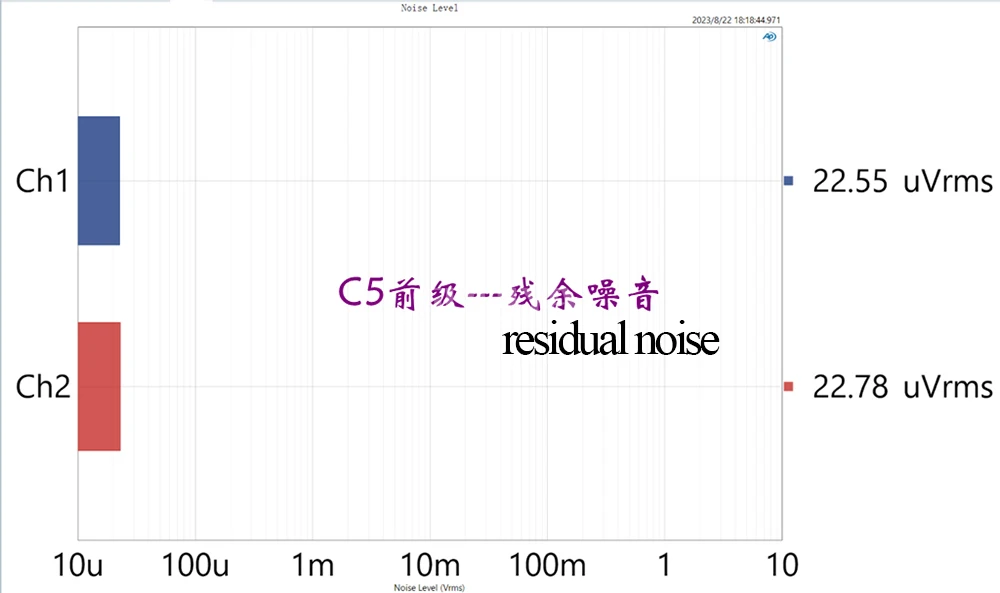

Signal-to-noise ratio: 111dB
Dynamic range: 111dB

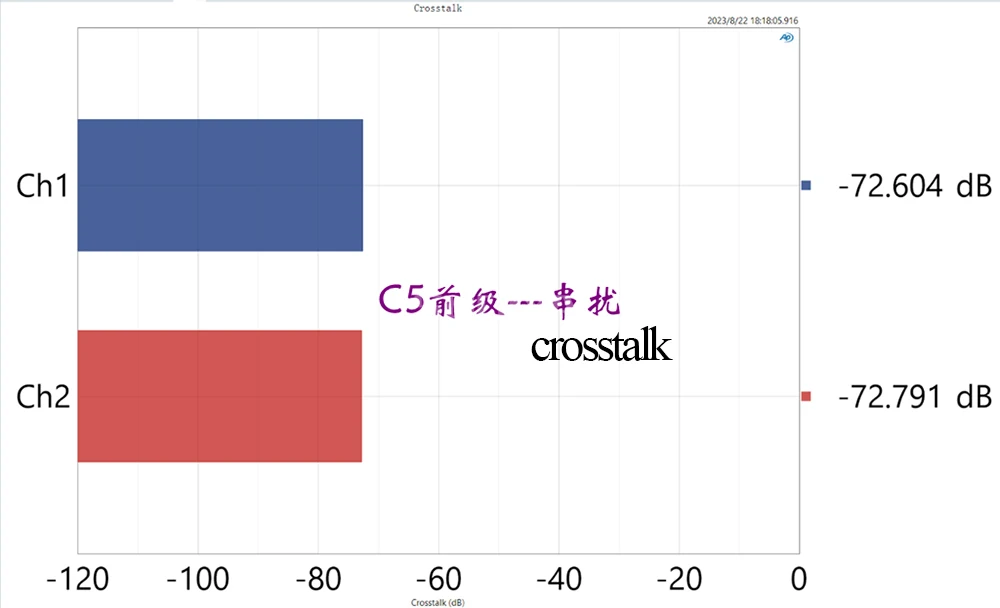

Channel crosstalk: -72.6dB

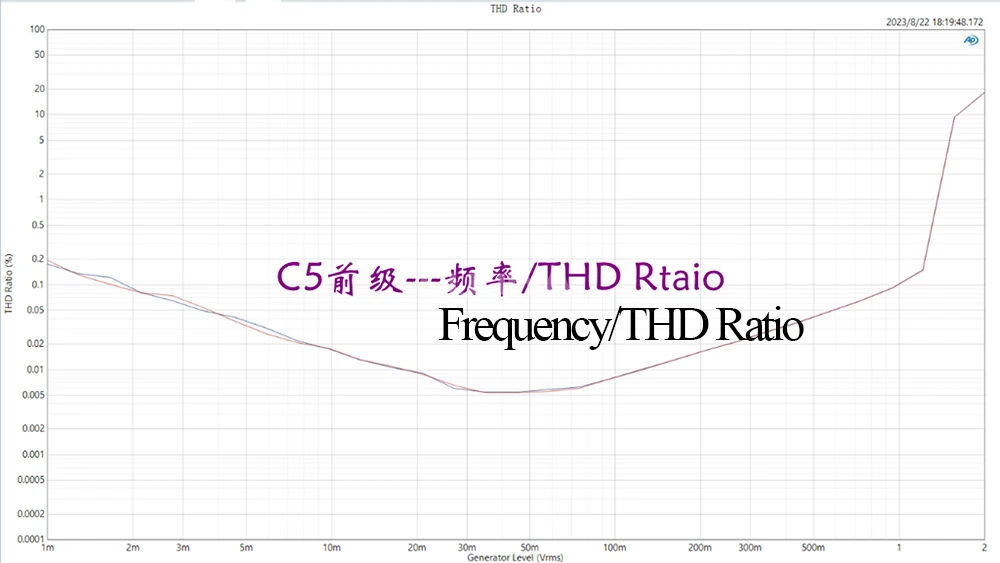

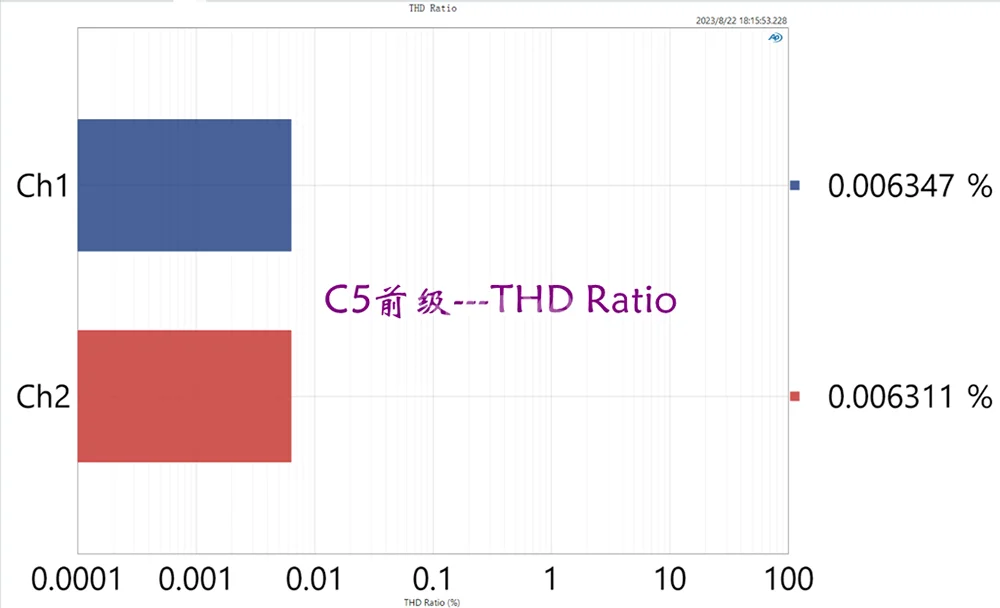

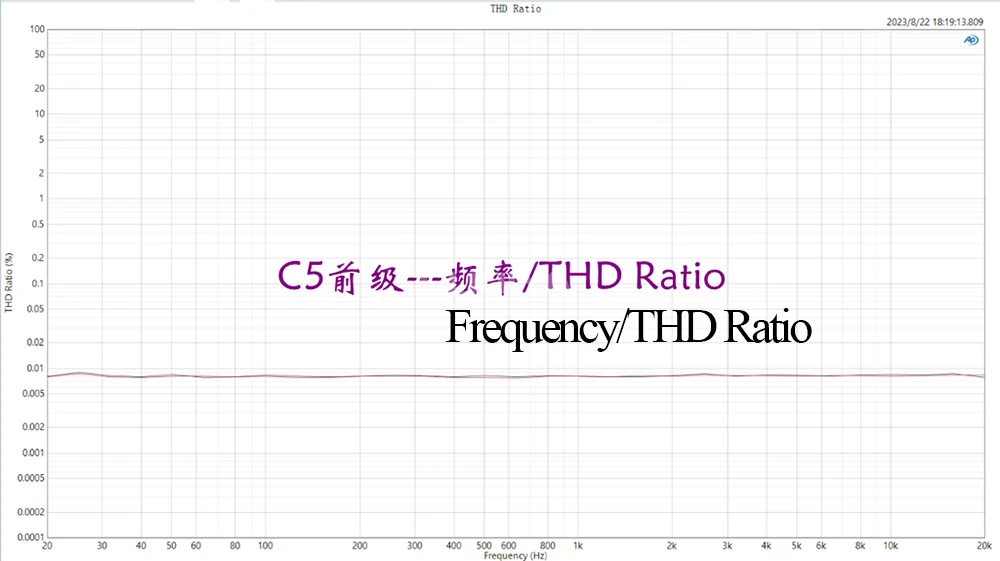

THD distortion: 0.006%

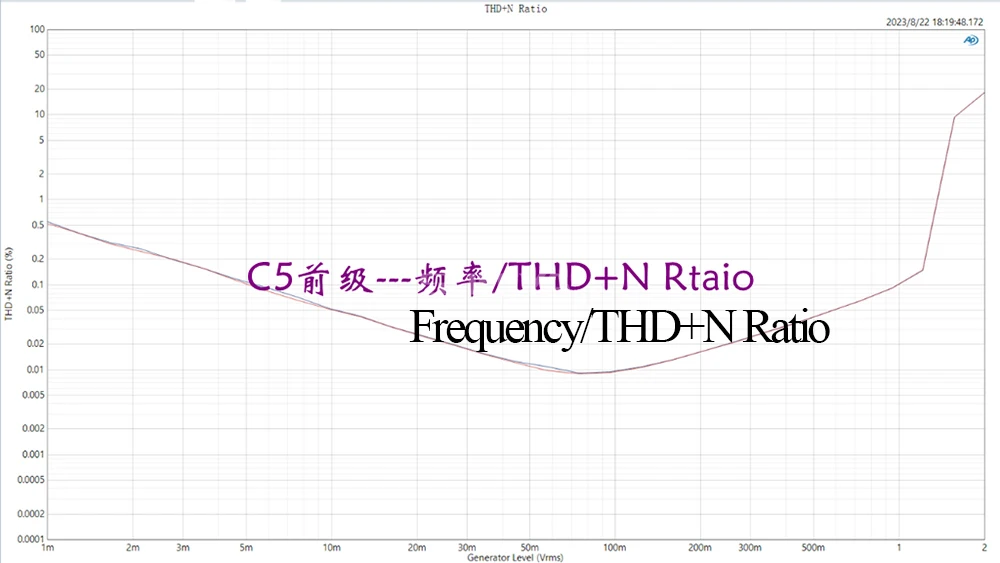

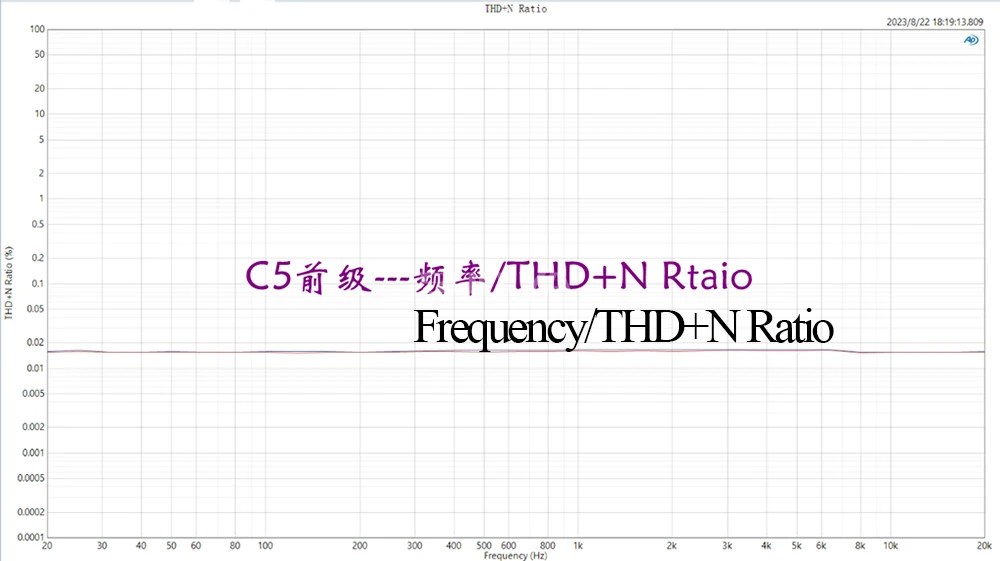

THD+N distortion: 0.009%

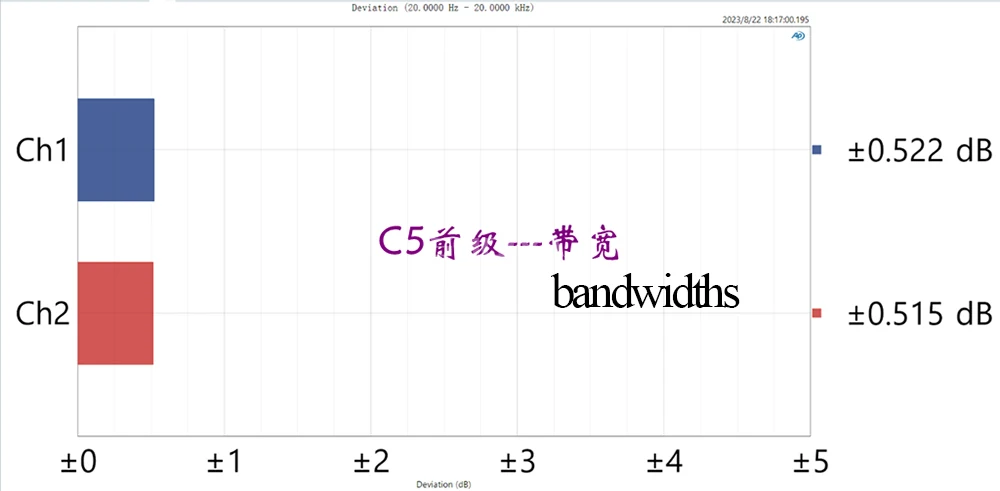

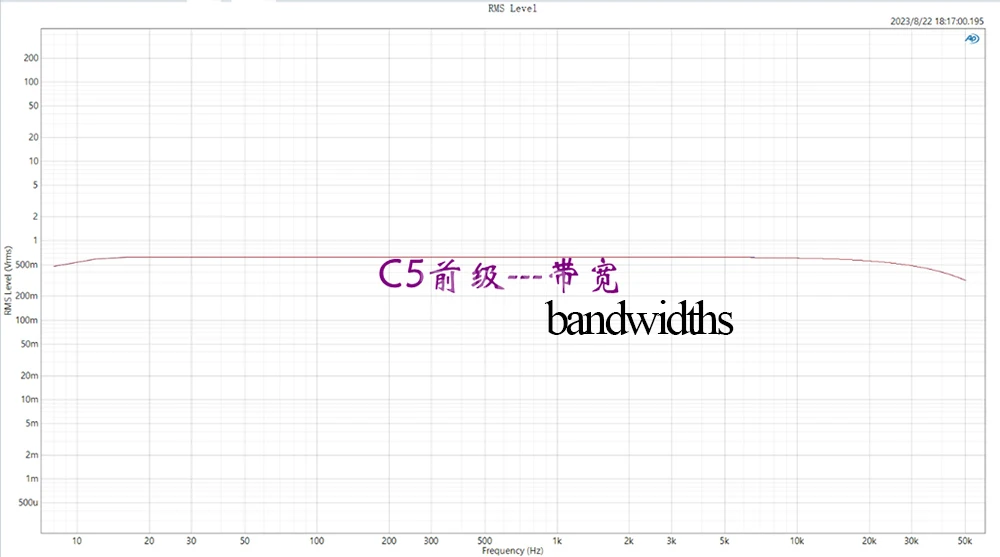

Frequency response bandwidth: ±0.51dB
Quality assurance
In order to ensure quality, every complete unit of Transsion undergoes comprehensive AP testing to ensure that it meets the design specifications.
Tests include: bandwidth, noise (signal-to-noise ratio), dynamic range, distortion, intermodulation distortion, channel separation, amplification, etc.
72 hours of copying of the whole machine, 1 hour of copying of the 8 ohm amplifier at full load, more than 1 hour of listening
Note: This product does not include a power cord
