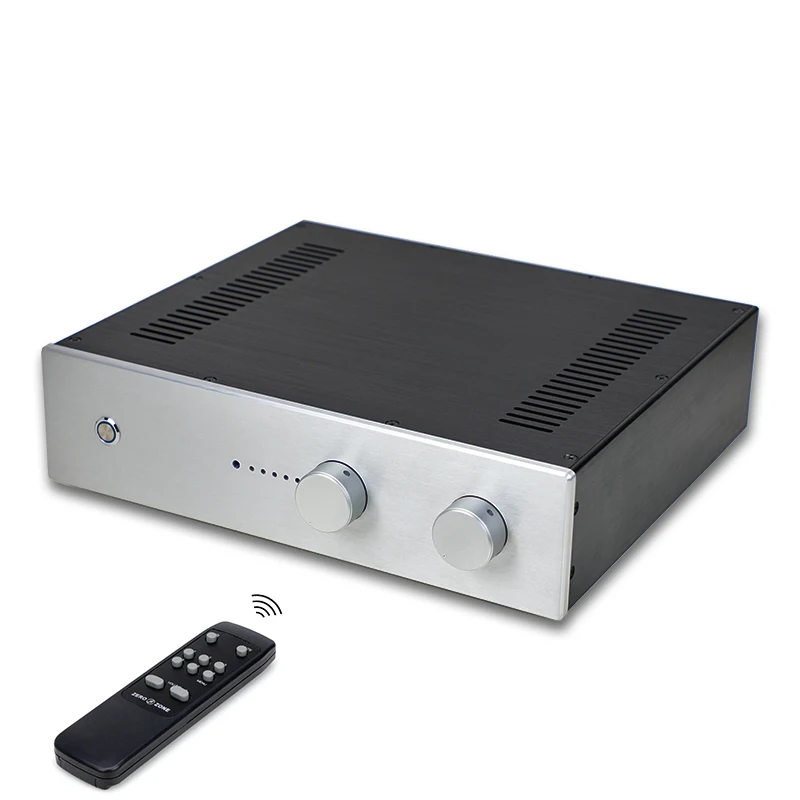

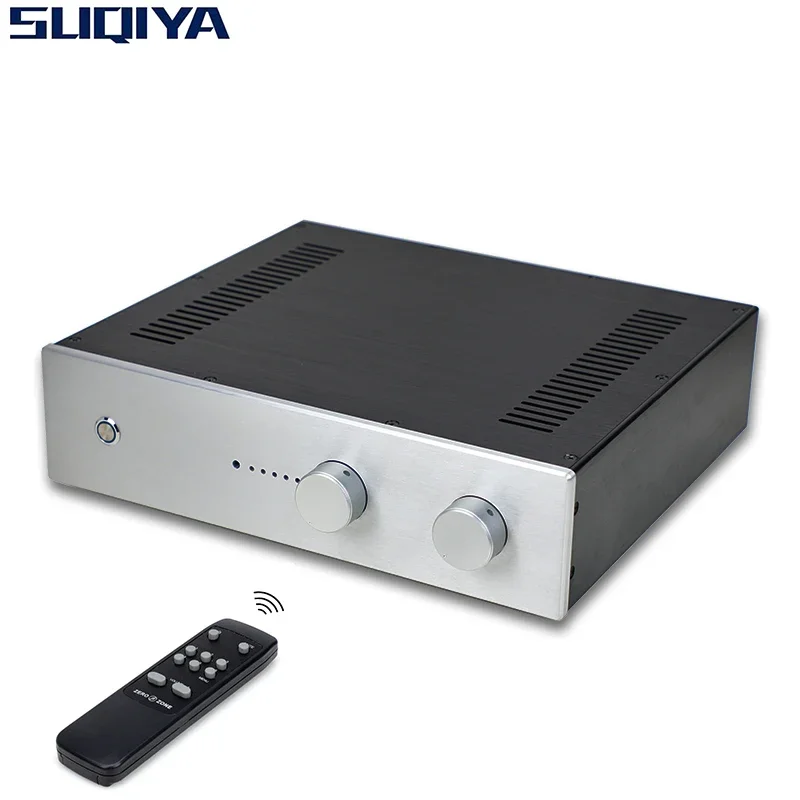

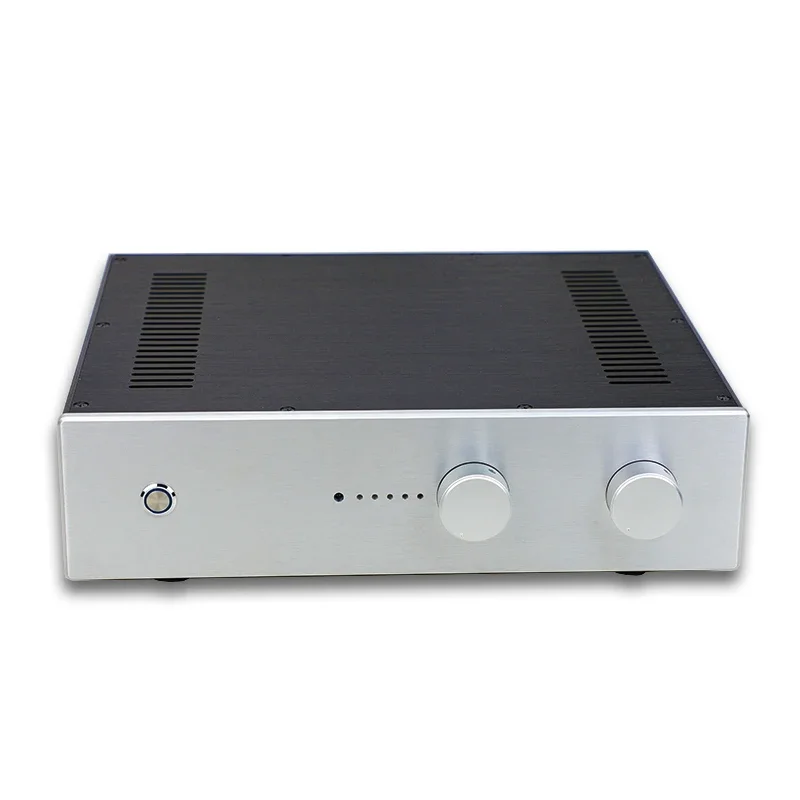

SUQIYA-Remote 12AX7 Tube Preamplifier Base on Conrad-johnson CL Preamp 4 Channels RCA Remote Control Switch Input

Product Description

Work voltage :AC115V and AC230V optional

Use 4PC Shuguang 12AX7B tubes.

Hi end Oxygen-free copper R-core transformer

Origianl Japan ALPS Potentiometer.

Taiwan high quality frosted Pure copper RCA terminals.

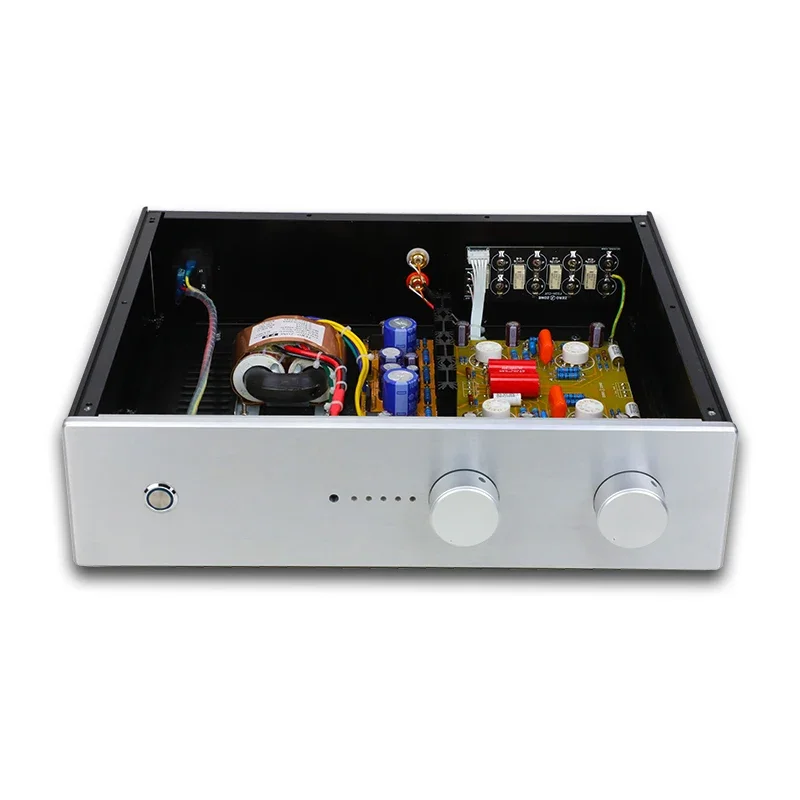

Full aluminum chassis + Stainless steel switch

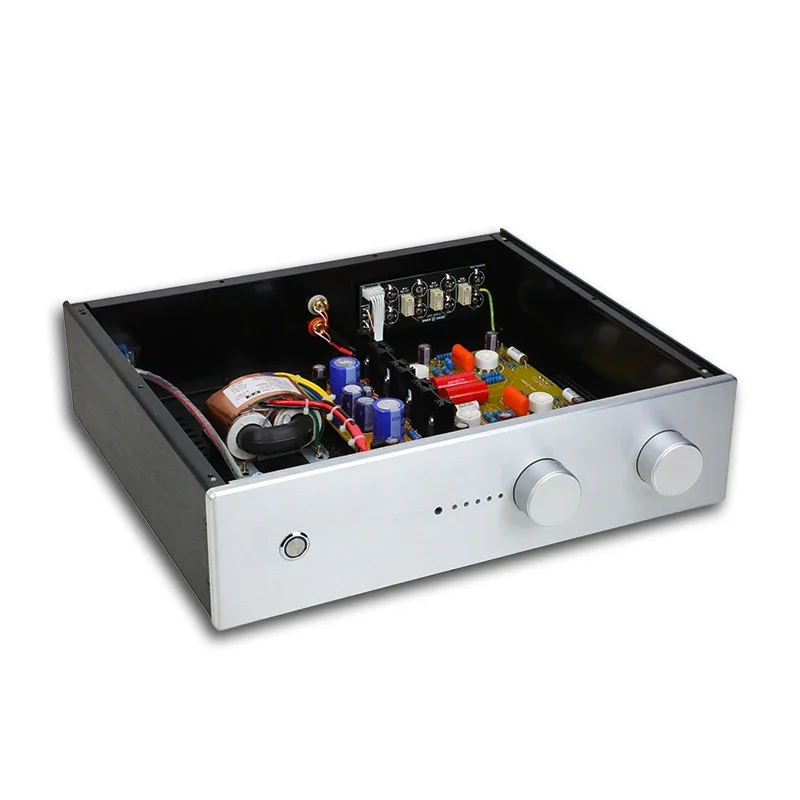

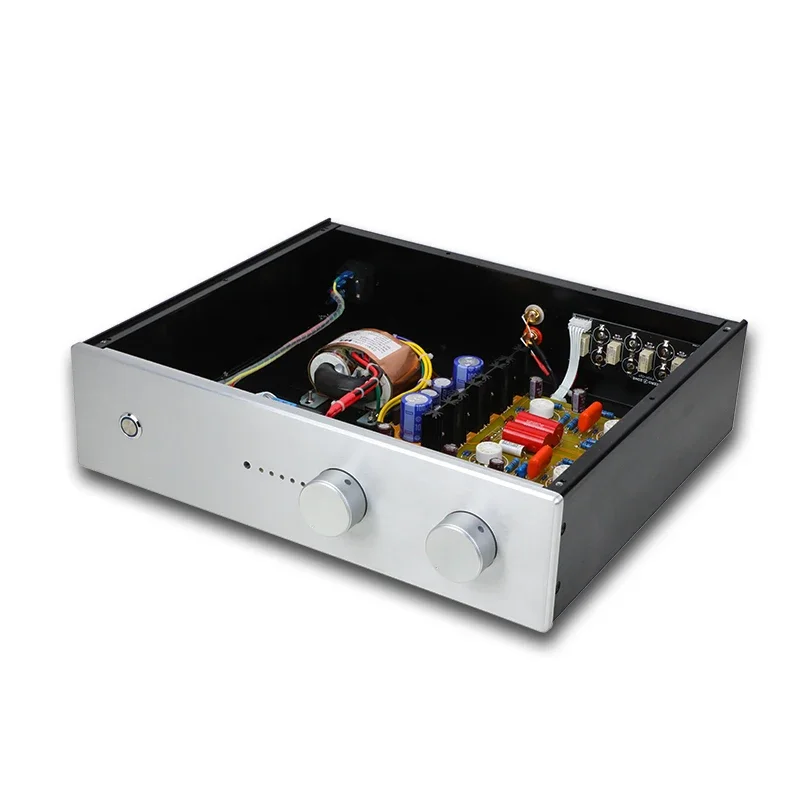

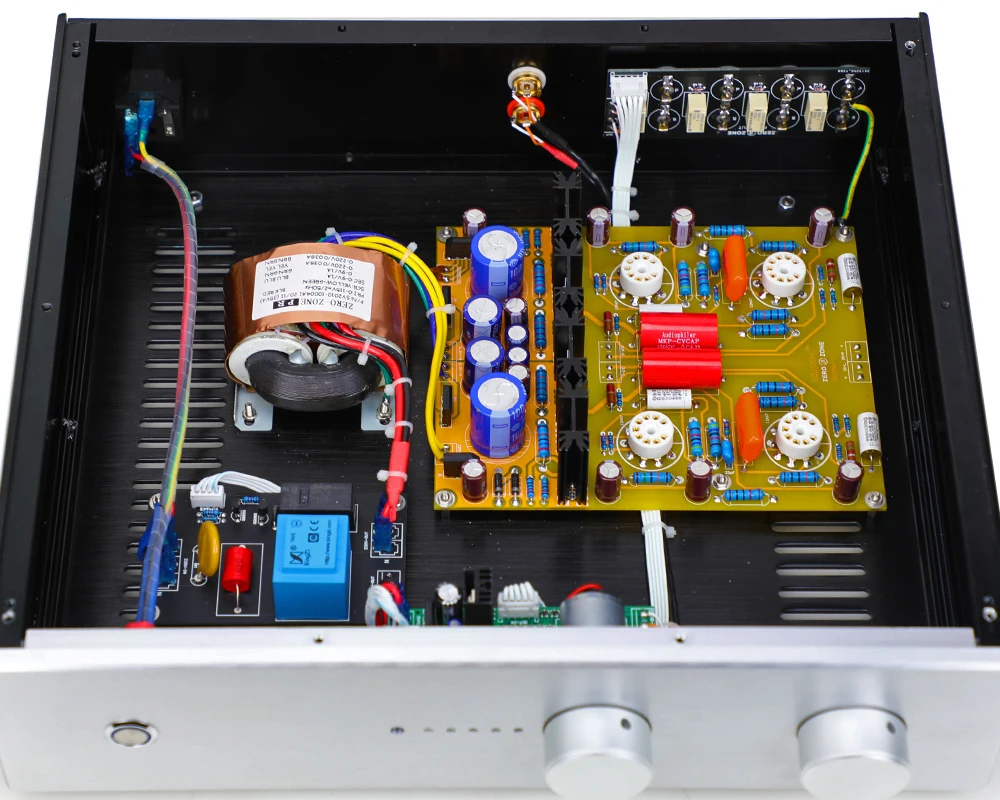

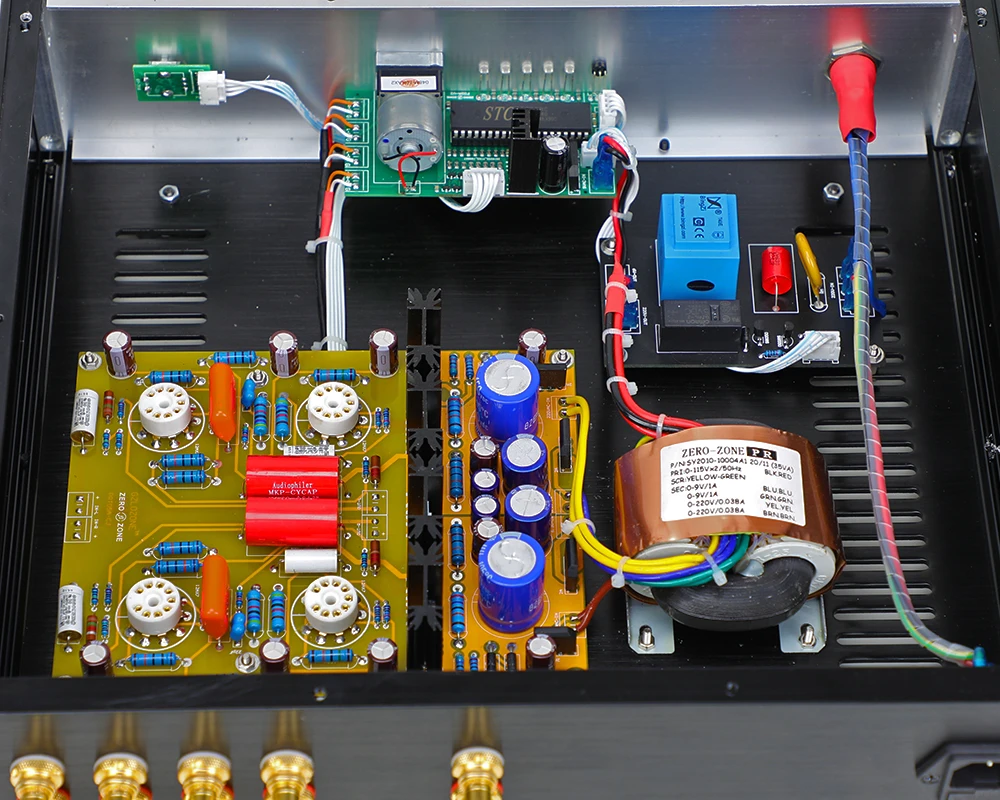

This preamp is reference the famous conrad-johnson CL Circuit , designed with double-single independent design, physically separated 100% left and right channels, independent hierarchical grounding.

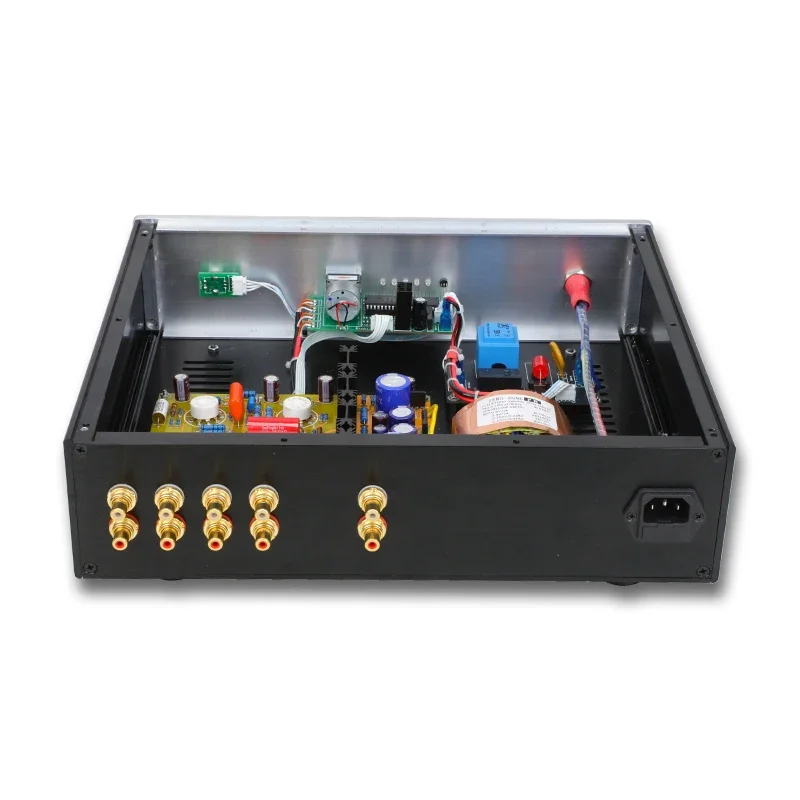

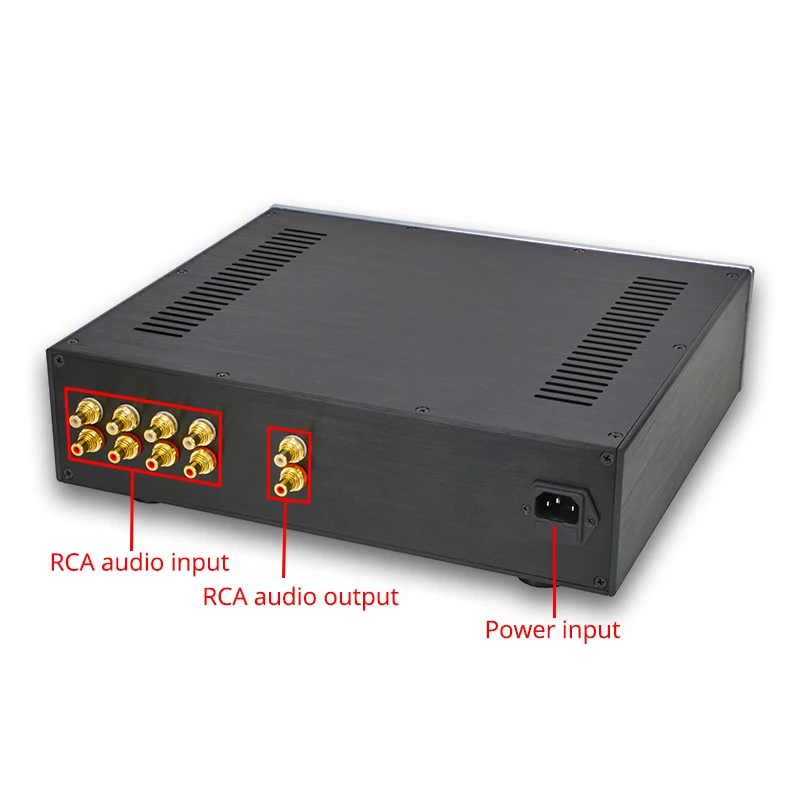

4 ways audio input options

1 way audio output

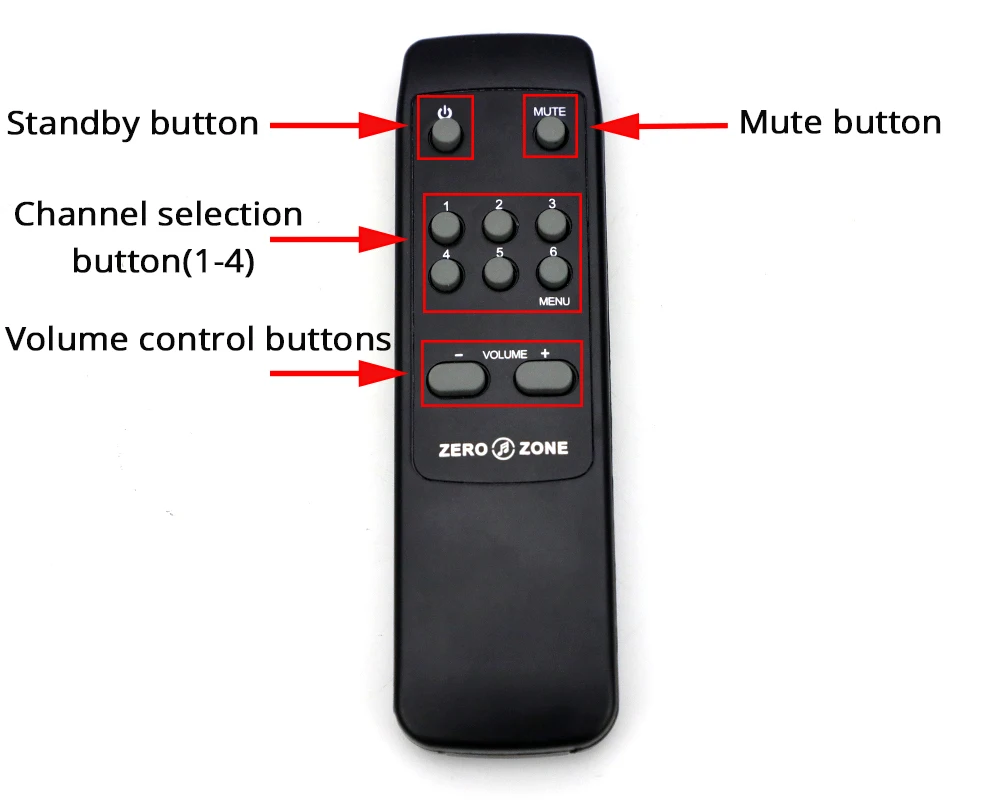

Remote control function:
Power on/off
Input choose
Adjust volume
Mute
Memory
One key return

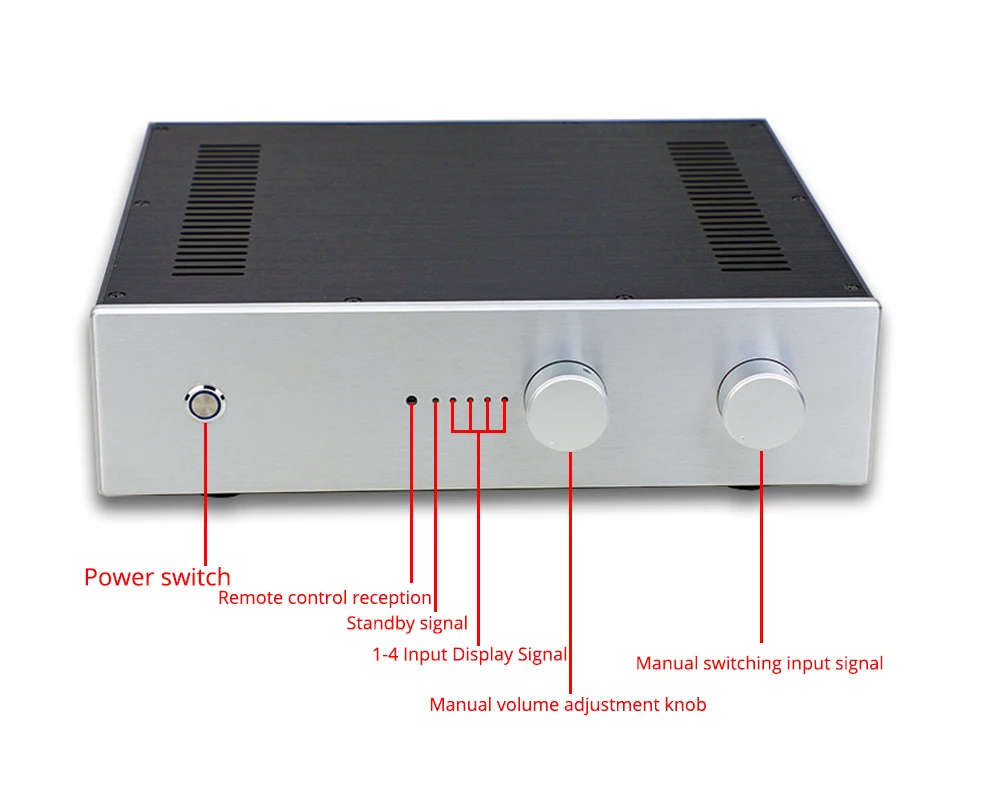

Encoder function:

Press the power switch on the left encoder, and rotate the audio input left and right.
Press the right encoder to turn off, and rotate left and right to switch input.

Detailed parameters

Gain: about 10 times.

input impedance:47K

SNR: 90dB

Frequency response: 10Hz–30KHz

Distortion: ≤1%.

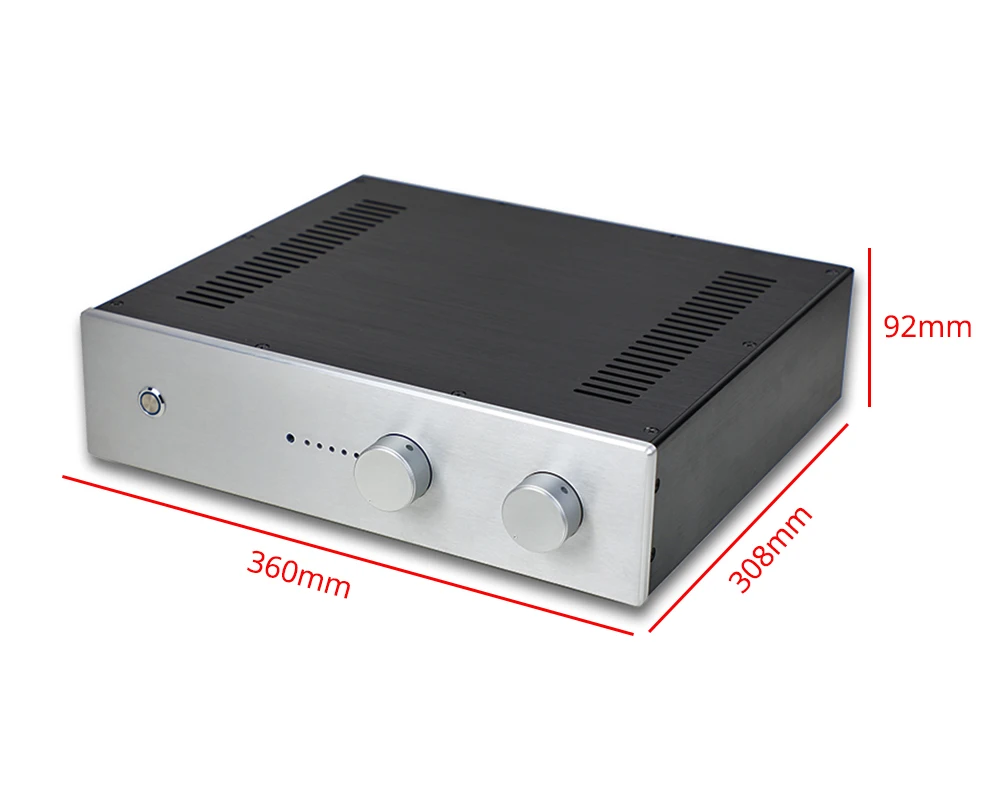

Machine size:360mmX92mmX308mm (excluding protrusions)

The list of goods

SHUGUANG 12AX7B Tube Version:PRT05A Conrad-Johnson CL preamplifier X1 Contains 4PCS shuguang tube Matching remote control (no battery)

PSVANE ECC83 Tube Version:PRT05A Conrad-Johnson CL preamplifier X1 Contains 4PCS PSVANE ECC83 tube Matching remote control (no battery)

EH 12AX7 Tube Version:PRT05A Conrad-Johnson CL preamplifier X1 Contains 4PCS EH 12AX7 tube Matching remote control (no battery)

Without Tube Version:PRT05A Conrad-Johnson CL preamplifier X1 Contains Without tube Matching remote control (no battery)
