Product parameters:
Model: BRZHIFISU10PRO

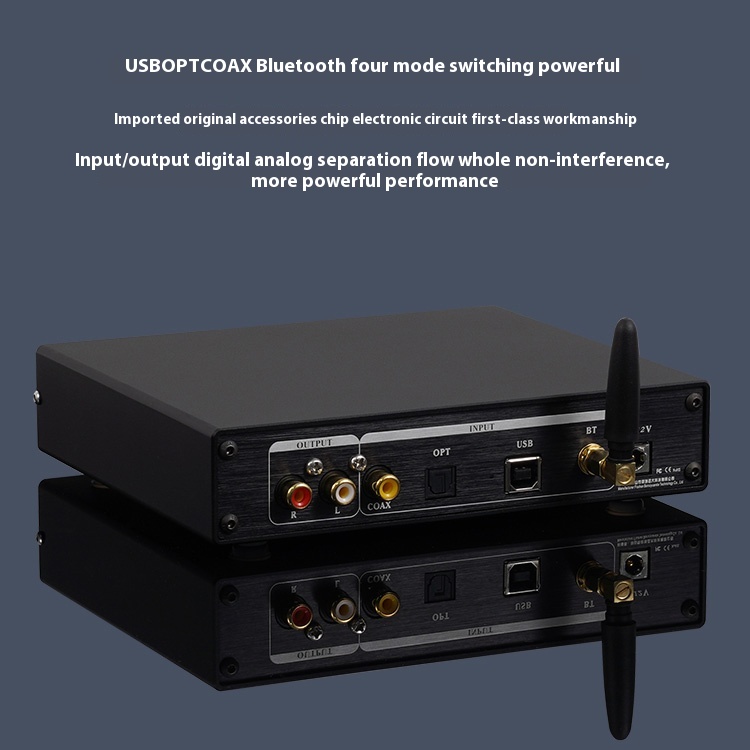

Input method: USB-PC (supports OTG), optical fiber, coaxial Bluetooth 5.4
Output method: RCA single-ended line, 3.5MM headphone jack
THD+N: >0.0001%@1KHZ
Signal-to-noise ratio: >124dB
Headphone amplifier power: 1200MW
Headphone resistance: 32-600Ω
Dimensions: 165MM*(length) 139MM*(depth) 40MM*(height)
Gross weight: 1KG

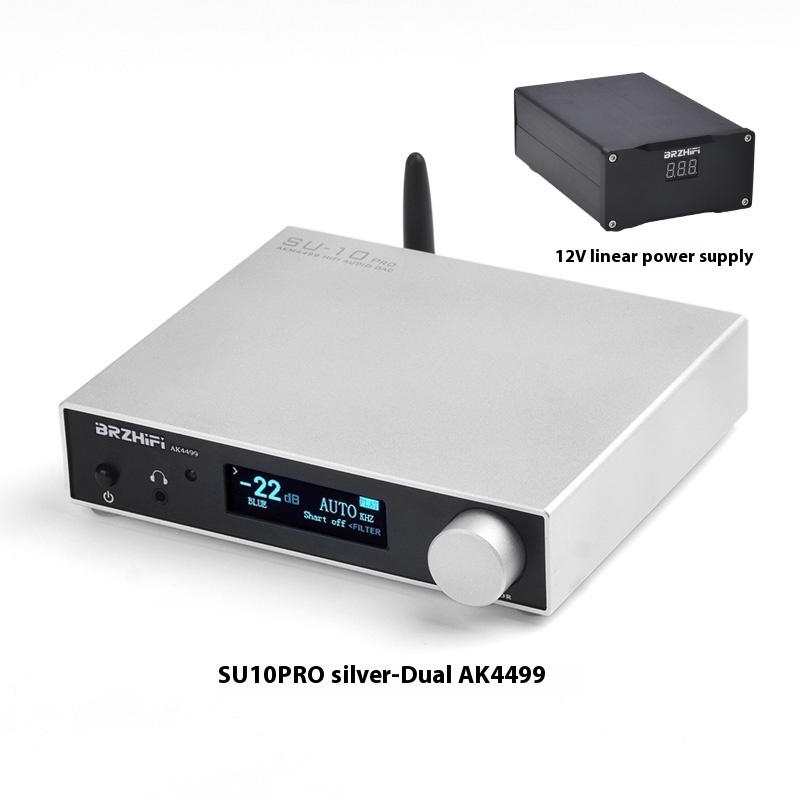

Power supply: DC12V2A(5.5*2.5MM
Sampling rates supported by each input interface:
PCM: 44.1KHZ, 48KHZ, 88.2KHZ, 96KHZ,
176.4KHZ, 192KHZ, 352.8KHZ, 384KHZ
US B supports all sampling rates, S/PDIF
OPT supports up to 192KHZ]
DSD: 2.8MHZ (DSD64)-DOP, NATIVE
5.6MHZ (DSD128)-DOP, NATIVE
11.2MHZ (DSD256)-NATIVE
22.5792MHZ (DSD512)-NATIVE
USB supports all DSD formats, S/PDIF
OPT does not support DSD
Bit width: up to 32BIT OVER USB
up to 24 BIT OVER S/PDIF, OPT
Bluetooth protocol: LDAC, APTX-HD, APTX, SBC, AAC
Electrical standards of each interface:
1. The USB input socket is a standard USB-B female socket, does not support U disk, and the USB power supply range is 4.5V-5.1V;
2. The SPDIF interface inputs standard S/PDIF signals with an input impedance of 75 ohms
