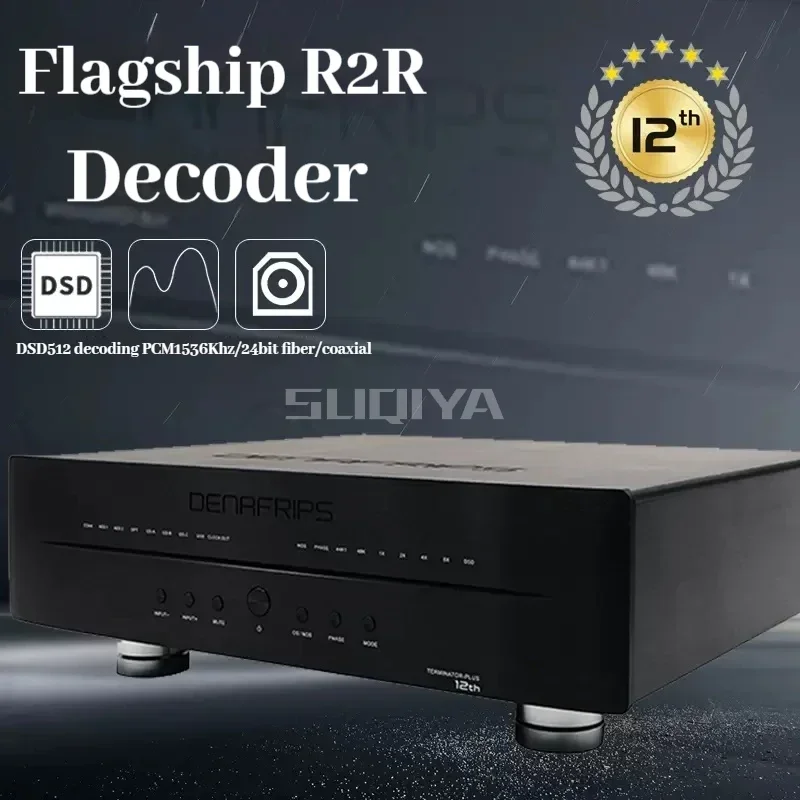

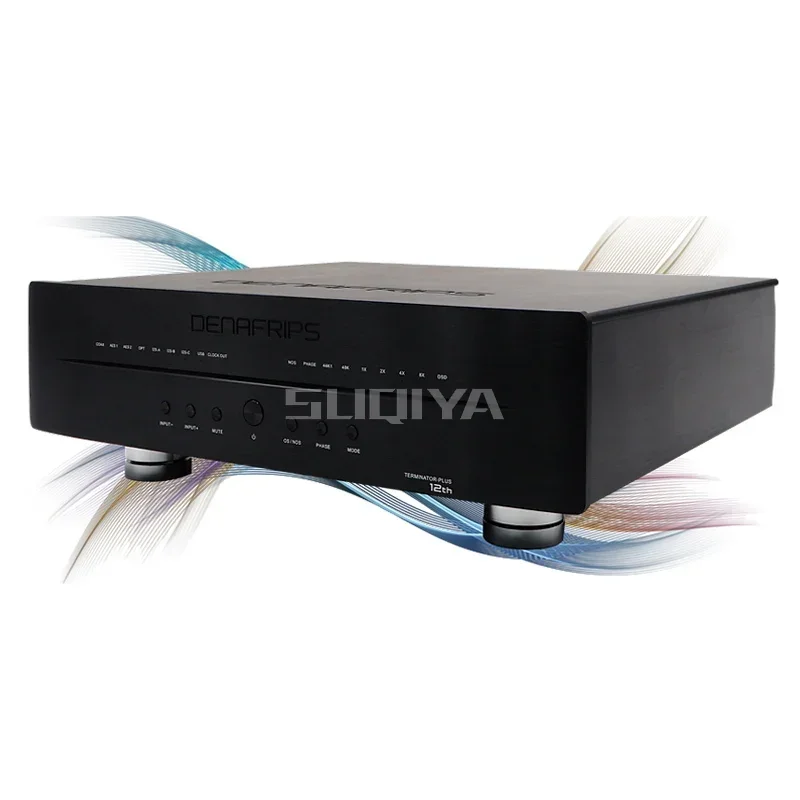

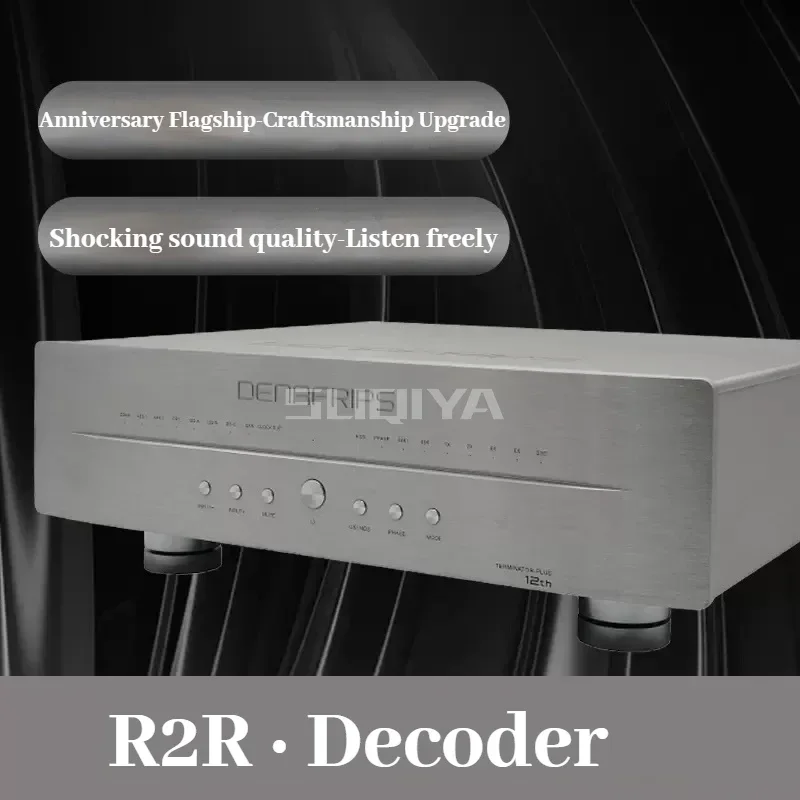

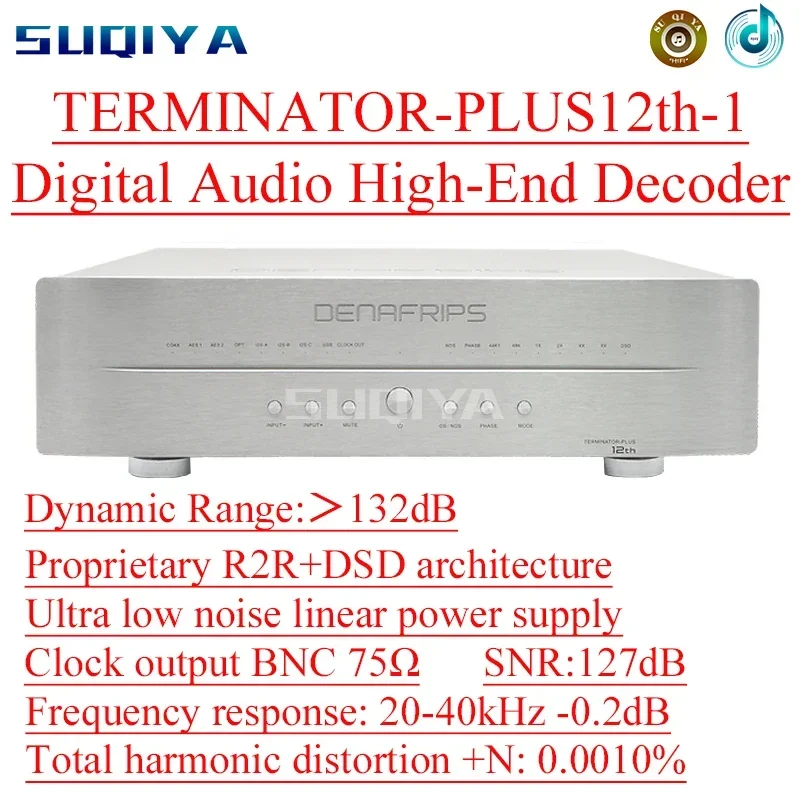

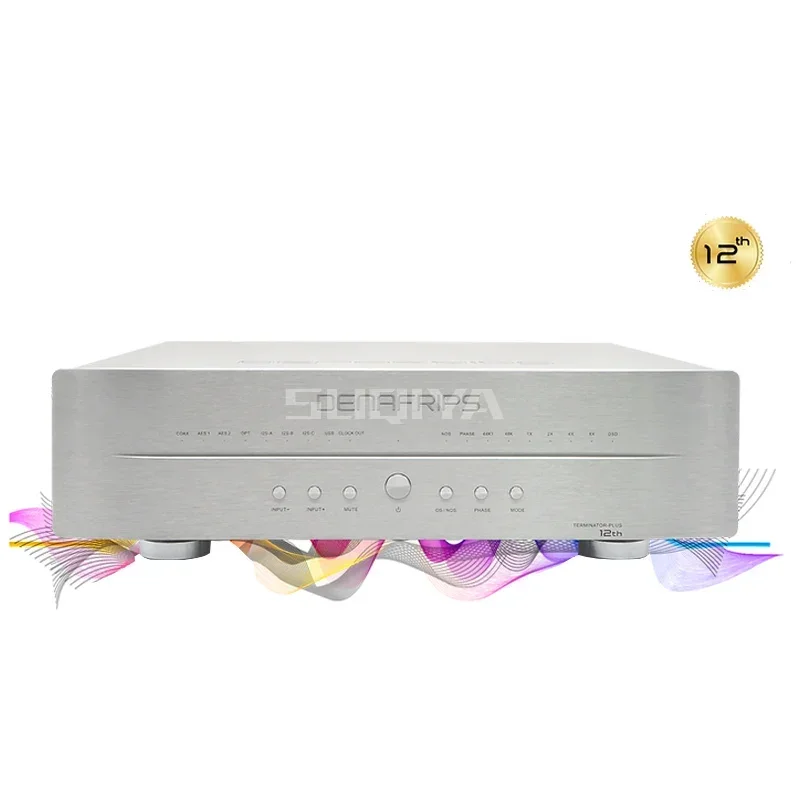

SUQIYA-TERMINATOR-PLUS12th-1 Digital Audio Hi-End Decoder R2R+DSD Architecture Ultra-low Noise Linear Power Supply Clock Output

Technical Highlights

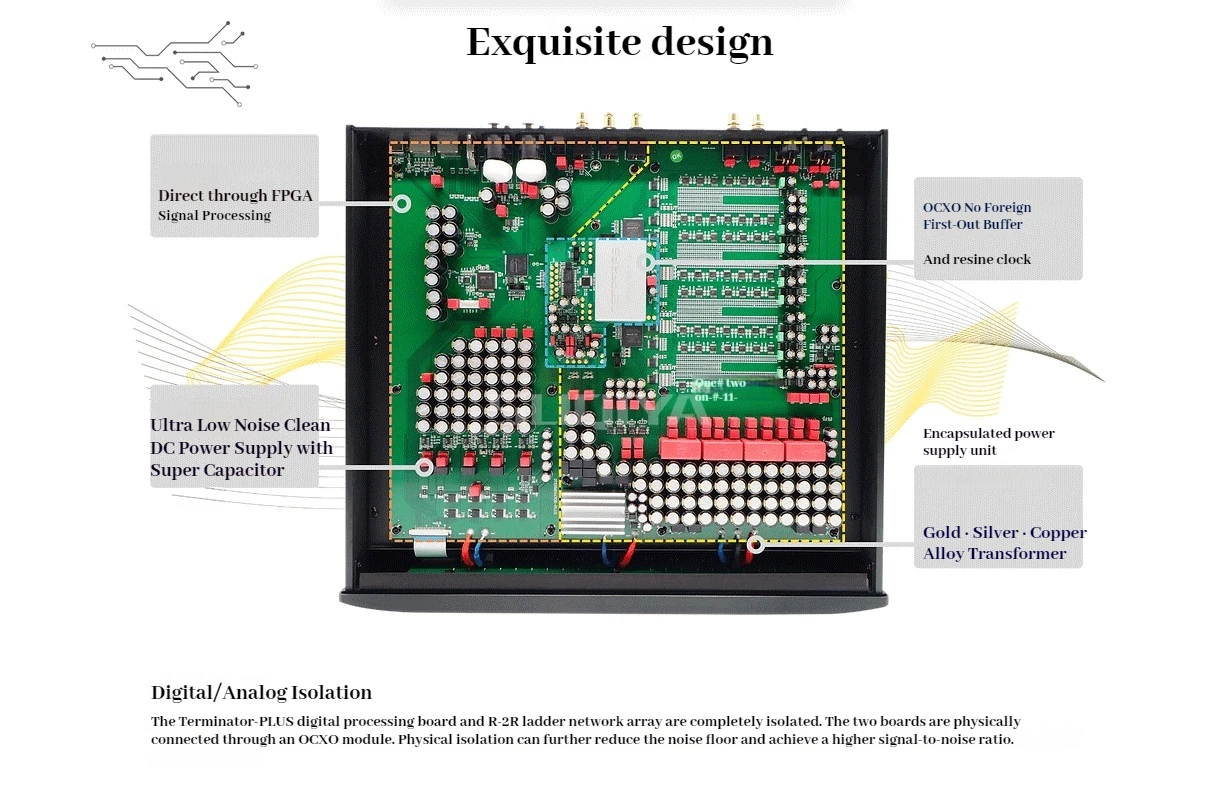

Proprietary R2R + DSD architecture True Balance 26-bit R2R + 6-bit DSD (32-step far infrared filter)
Matched precision thin film 0.005% R-2R network array
Package Flagship ultra-low noise power supply

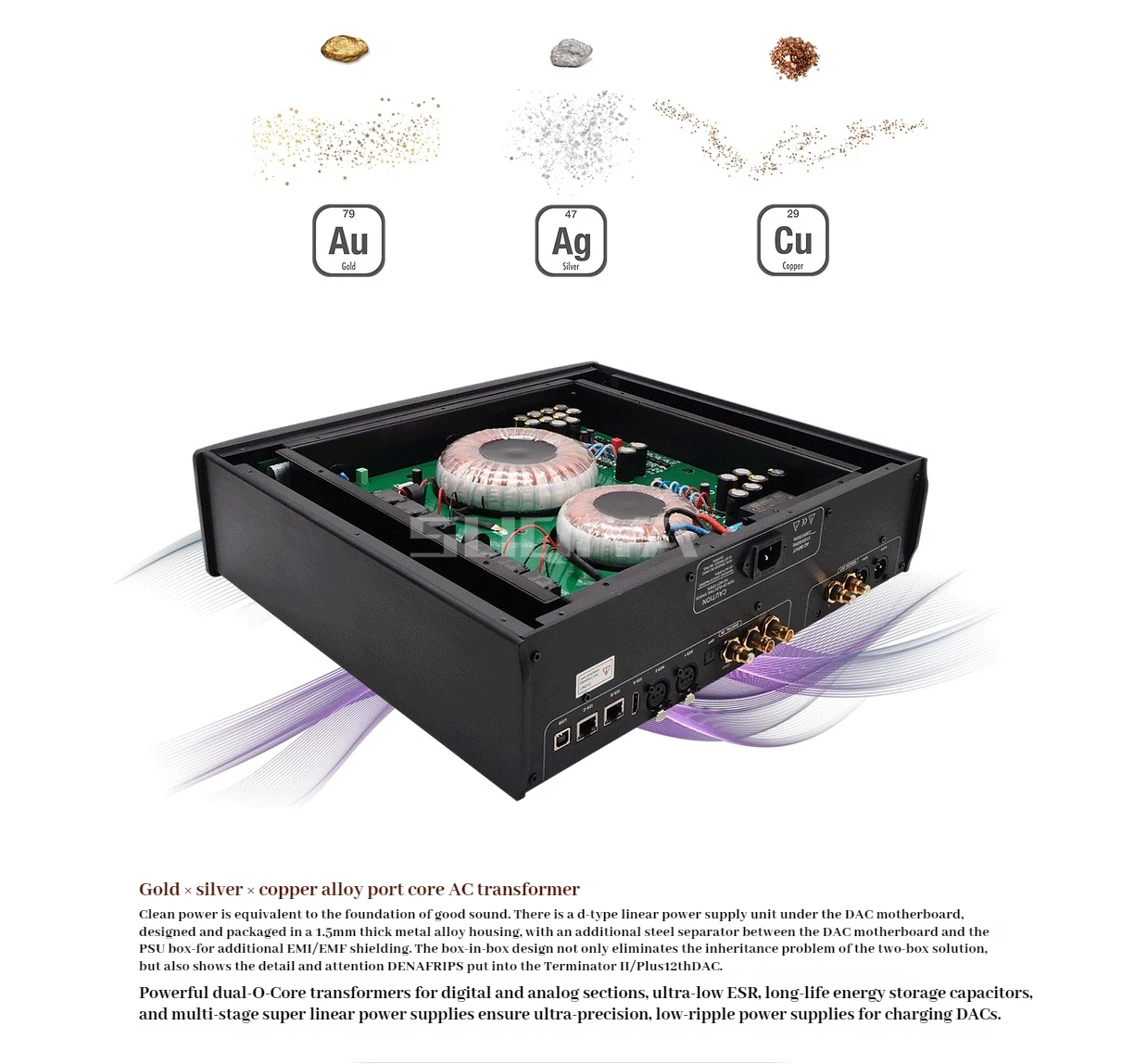

High-purity gold + silver + copper alloy AC transformer High-end oven control crystal OCXO

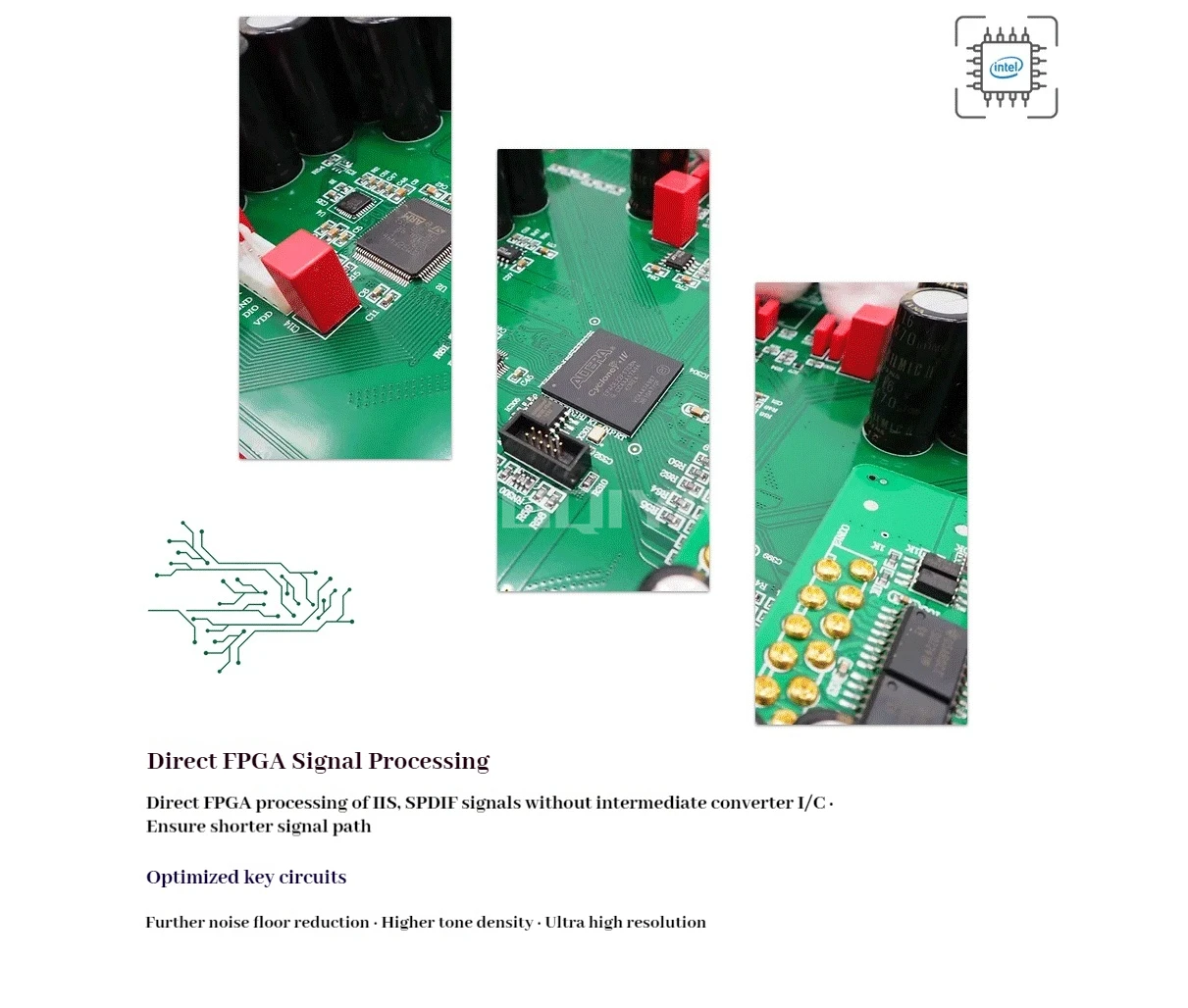

Adaptive FIFO buffer Re-alignment lock Direct digital signal processing FPGA
DSD1024, PCM1536 support USB and I²S input
Proprietary USB audio solution implemented by advanced AMR MCU based on STM32F446 Licensed Sexicon USB driver for Windows platform
Driverless on Mac》Linux
Dual frequency/wave input
Support sharp/slow filter options
I²S pinout configuration
I²S DSD channel swap configuration
L DSD64
DSD1024*support USB only Inputs
Interrupter
24-bit / 44.1, 48, 88.2, 96, 176.4, 192KHz, all inputs supported
1536kHz* on USB and I²S inputs

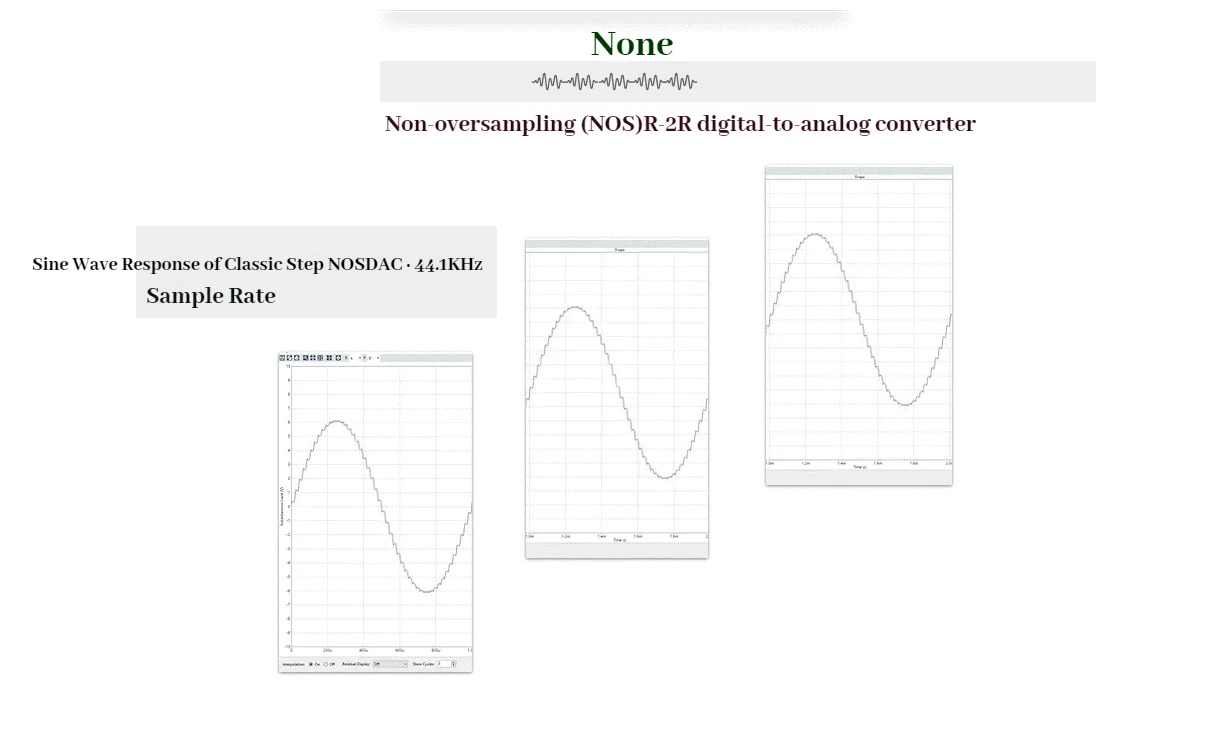

Sampling Mode: Non-oversampling NOS / Oversampling OS

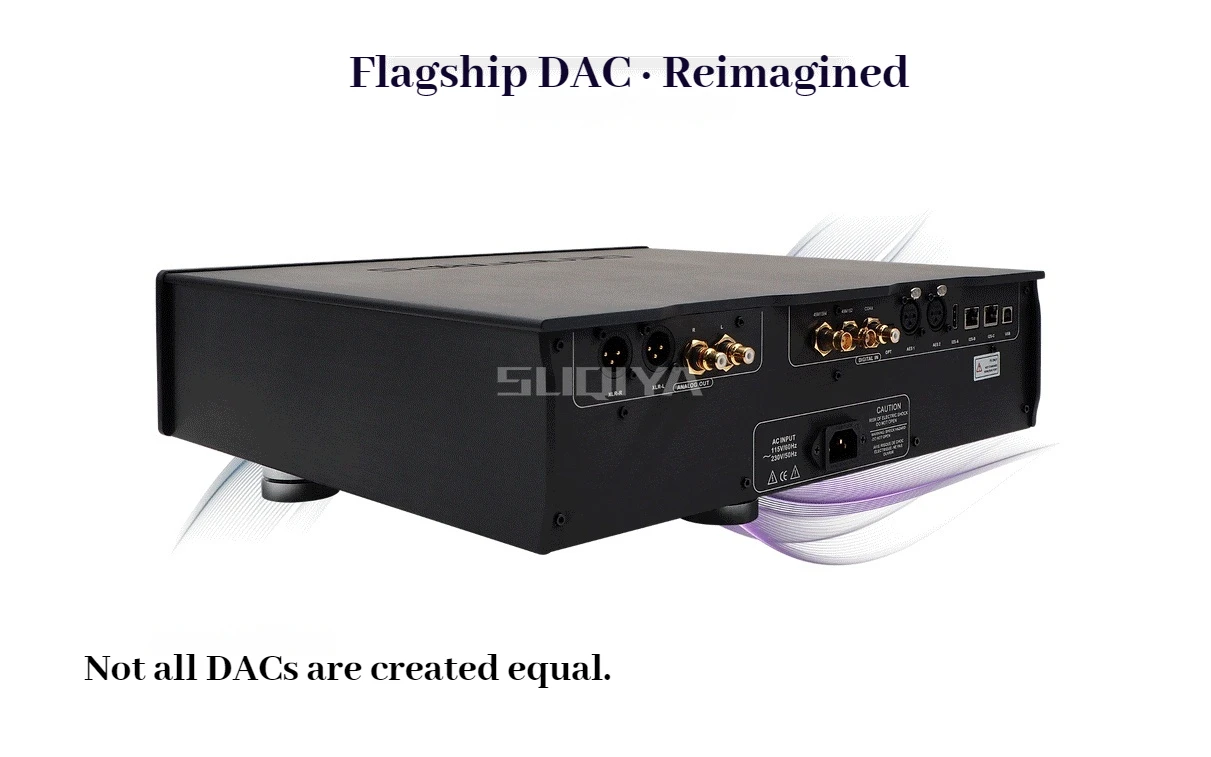

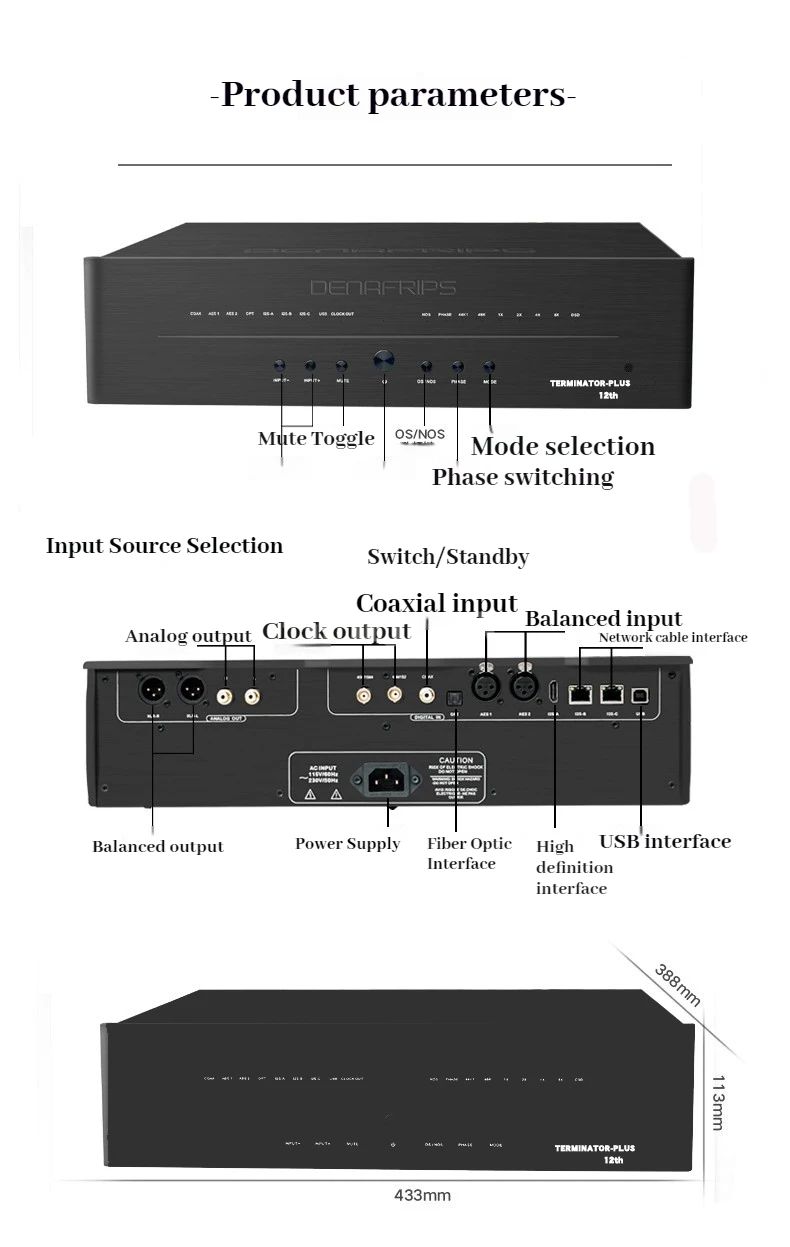

Digital Inputs
Coax via RCA
Directory Link x1
Auto See & See / Emergency Navigation x2
USB2.0 Type B
I2 via HD Graphics
I² via RJ45 Low Voltage Development Module oI²S via RJ45 FET
Analog Outputs
RCA at 2.0Vrms, 625Ω
XLR at 4.0Vrms, 1250Ω

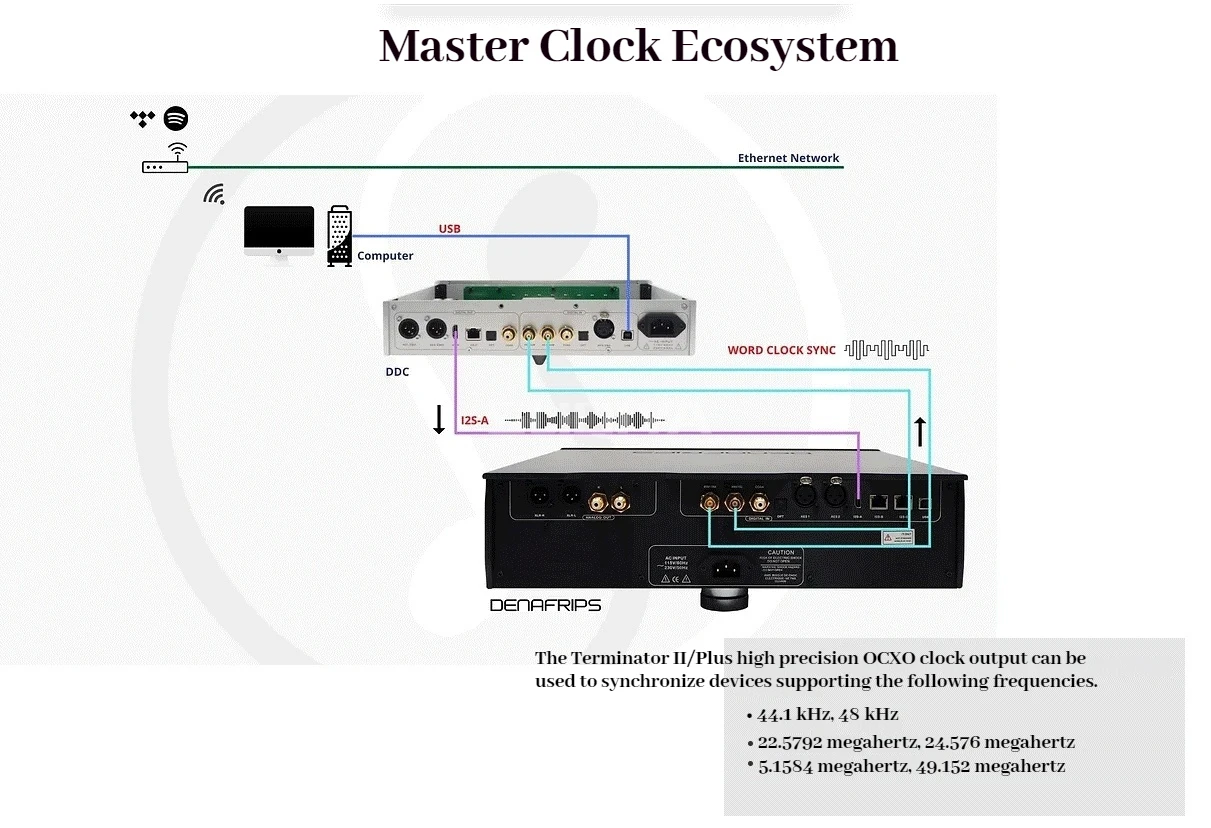

Clock Out BNC 75Ω
44.1kHz, 48kHz
22.5774MHz, 24.576MHz
45.1548MHz, 49.152MHz
Frequency response: 20-40kHz -0.2dB
Total harmonic distortion +N: 0.0010%
Signal to noise ratio: 127dB
Dynamic range: >132dB
Stereo crosstalk: -110dB
AC power requirement: 100-240VAC, 50/60Hz (worldwide voltage) Power consumption: ≤20W
Dimensions: 430Wx380Dx125Hmm (including footer)
Package size: 610x570x275mm
Package contents: D/A converter only, no power cord and remote control.
Weight: 19.0kg

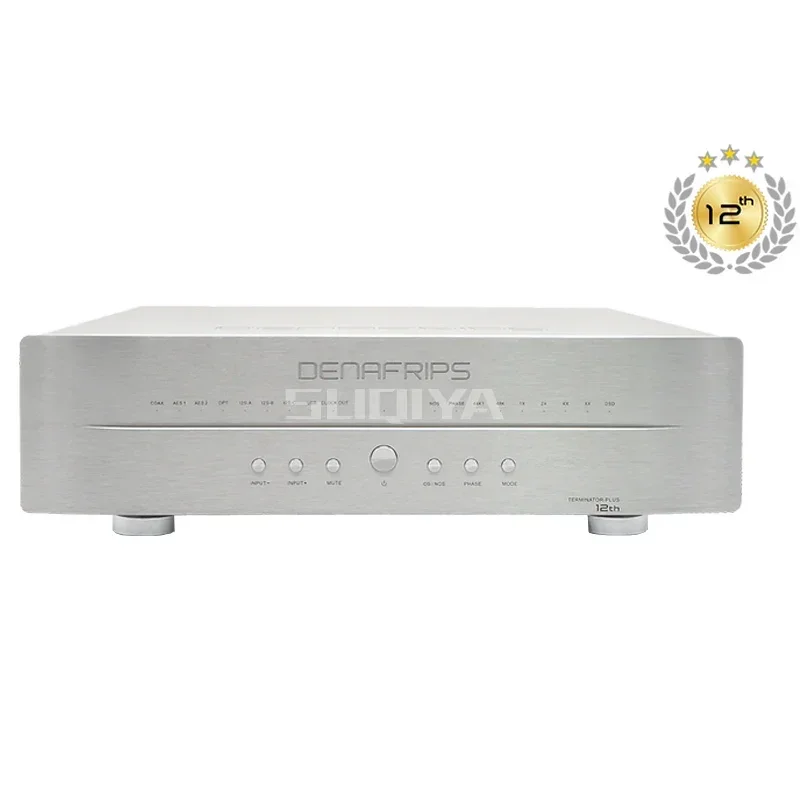

Color: Silver/Black
