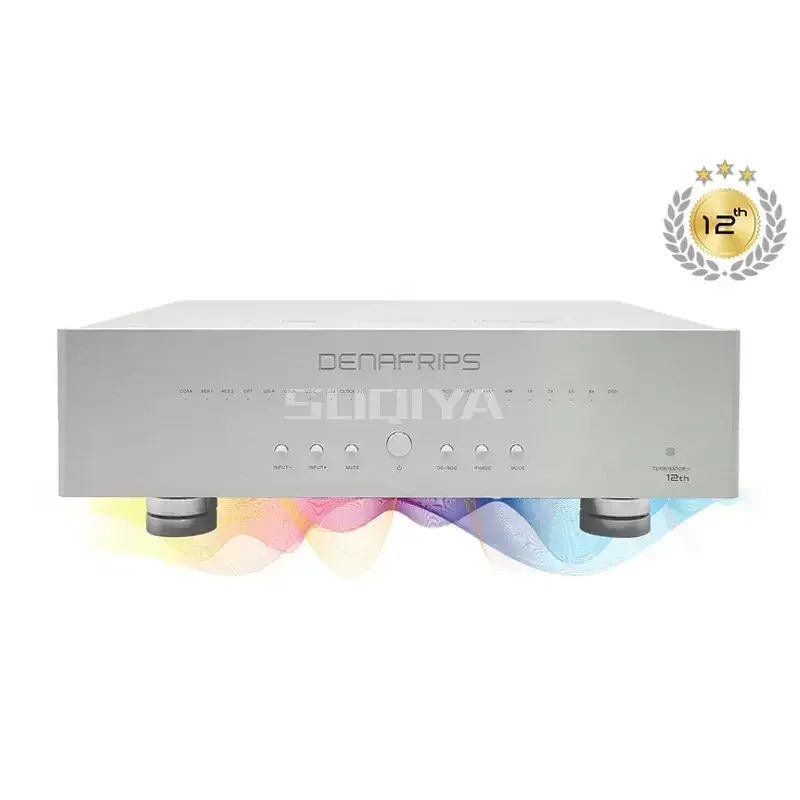

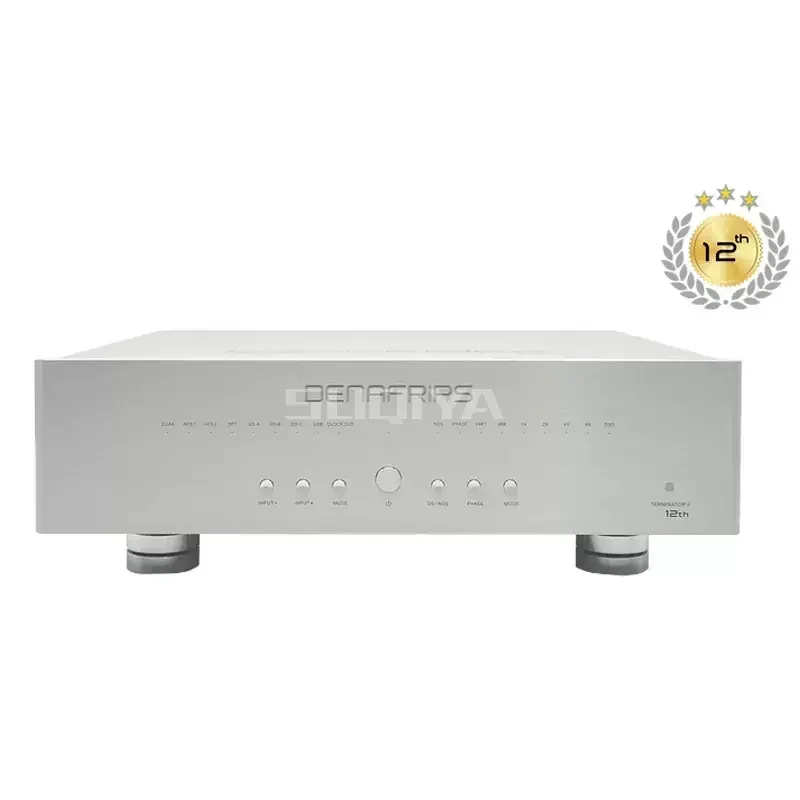

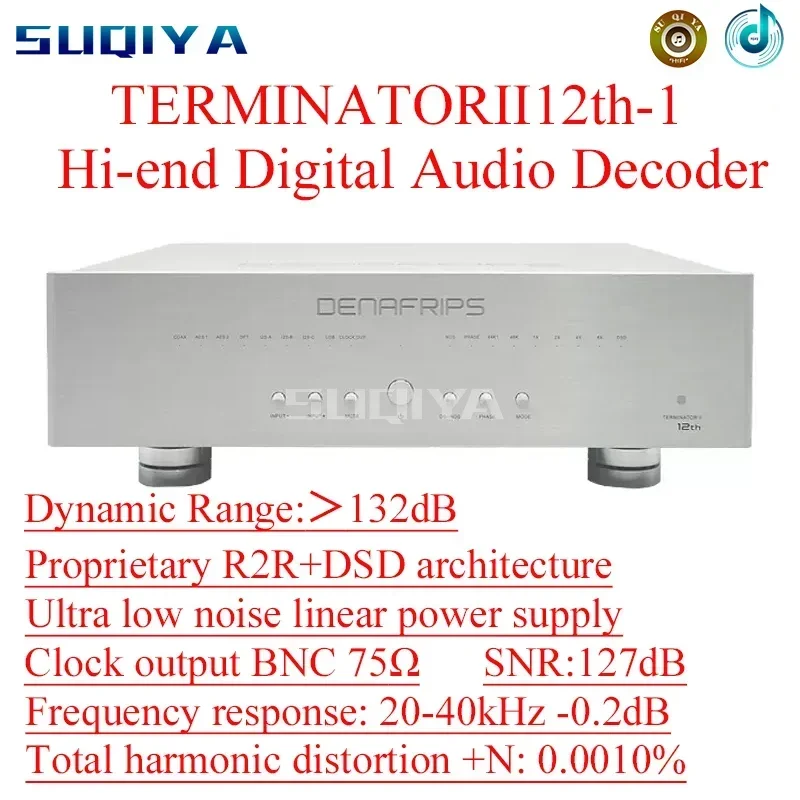

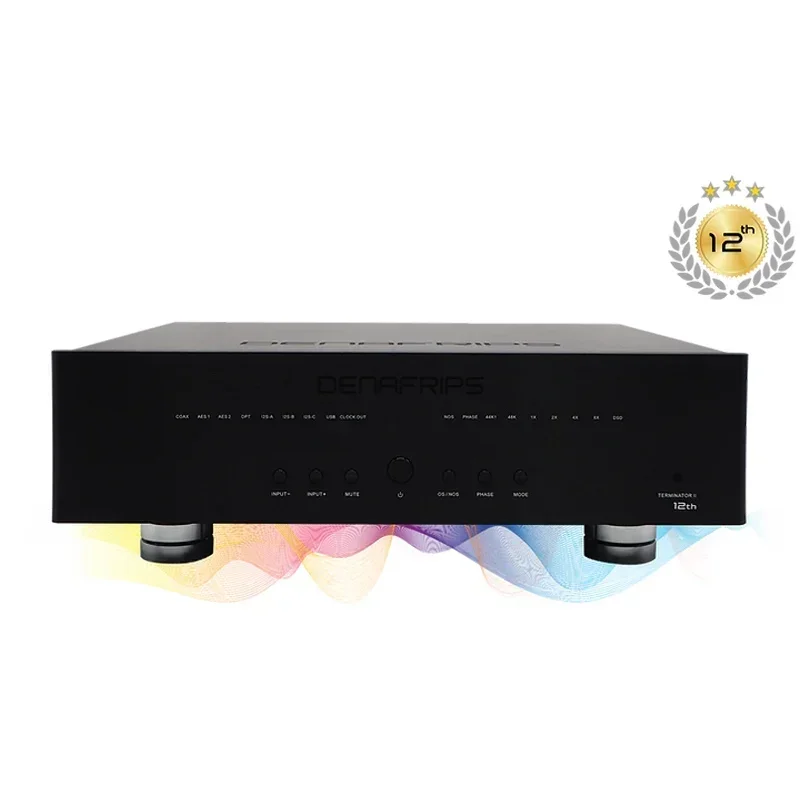

SUQIYA-TERMINATORII12th-1 Digital Audio High-end Decoder R2R+DSD Architecture Ultra-low Noise Linear Power Supply Clock Output

Product Information
Technical Highlights
Proprietary R2R + DSD Architecture
True Balanced 26-bit R2R + 6-bit DSD (32-step Far IR Filter)
Matched Precision Thin Film 0.005% R-2R Network Array
Packaged Flagship Ultra-Low Noise Power Supply

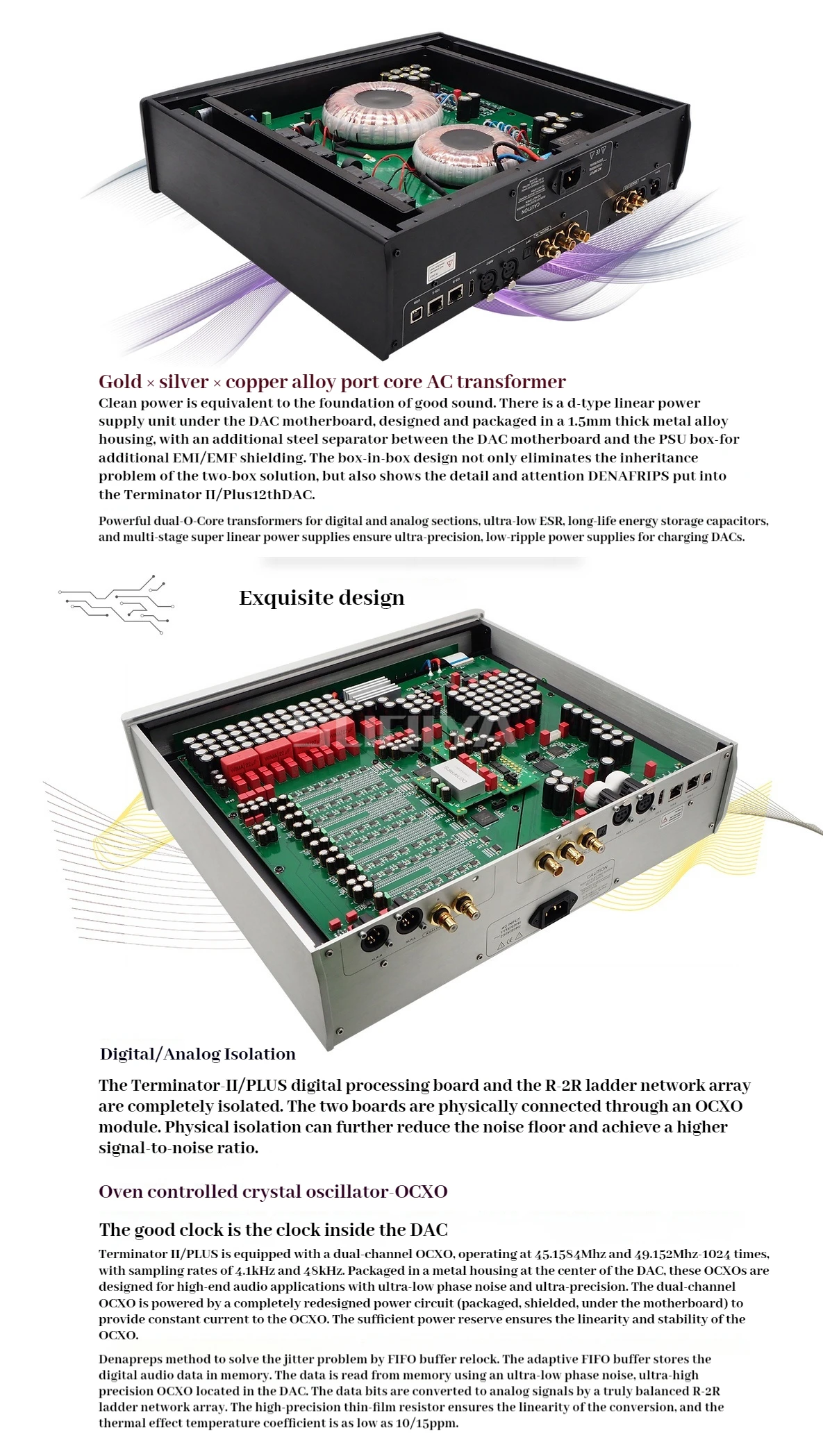

High-Purity Gold + Silver + Copper Alloy AC Transformer
High-End Oven Controlled Crystal OCXO
Adaptive FIFO Buffer Re-Arm Lock

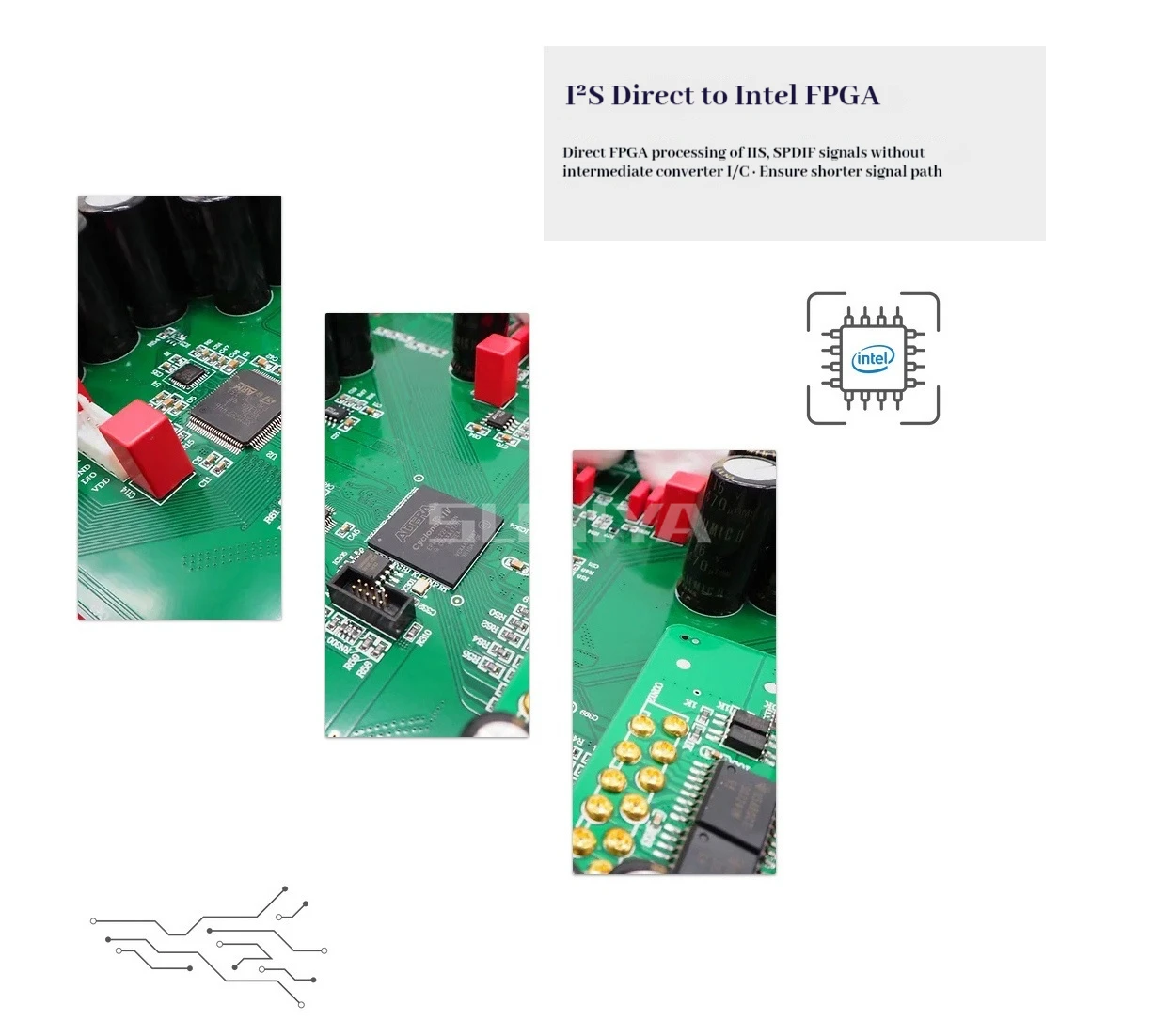

Direct Digital Signal Processing FPGA
DSD1024, PCM1536 Support USB and I²S Inputs
Proprietary USB Audio Solution Implemented by Advanced AMR MCU Based on STM32F446
Licensed SESiCon USB Driver for Windows Platform
Driverless on Mac》Linux
Double Oscillator/Electric Wave Input Support
Sharp/Slow Filter Option
I²S Pinout Configuration
I²SDSD Channel Swap Configuration

DSD64
DSD1024*USB Only Inputs
Interrupter
24-bit / 44.1, 48, 88.2, 96, 176.4, 192KHz, all inputs supported
1536kHz* on USB and I²S inputs

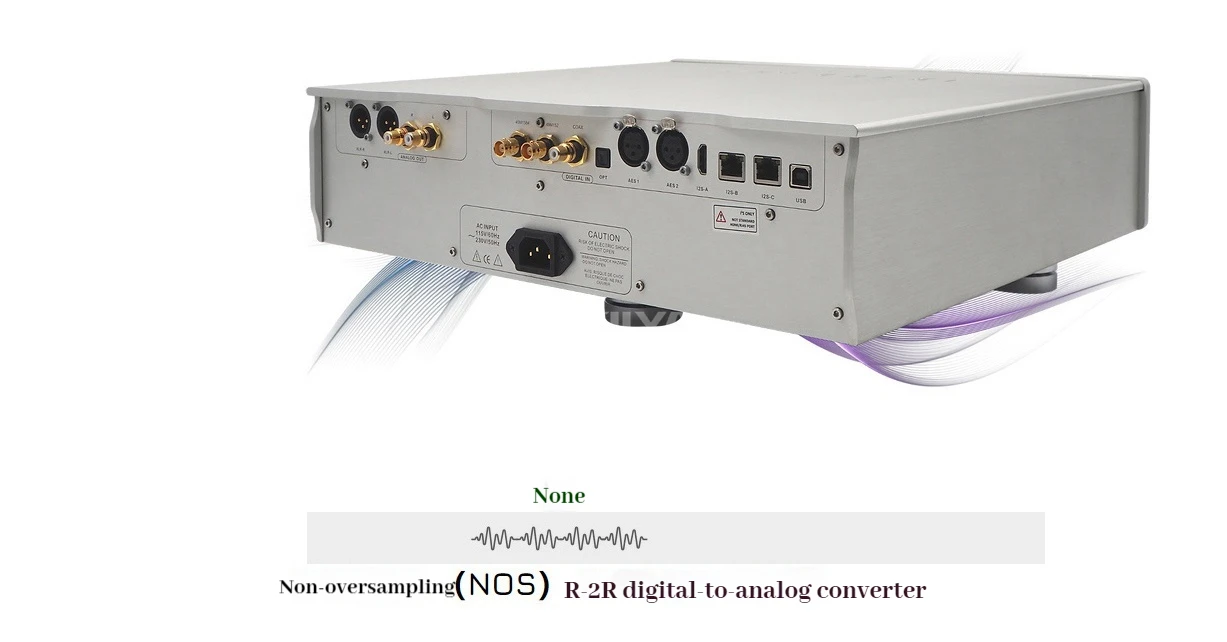

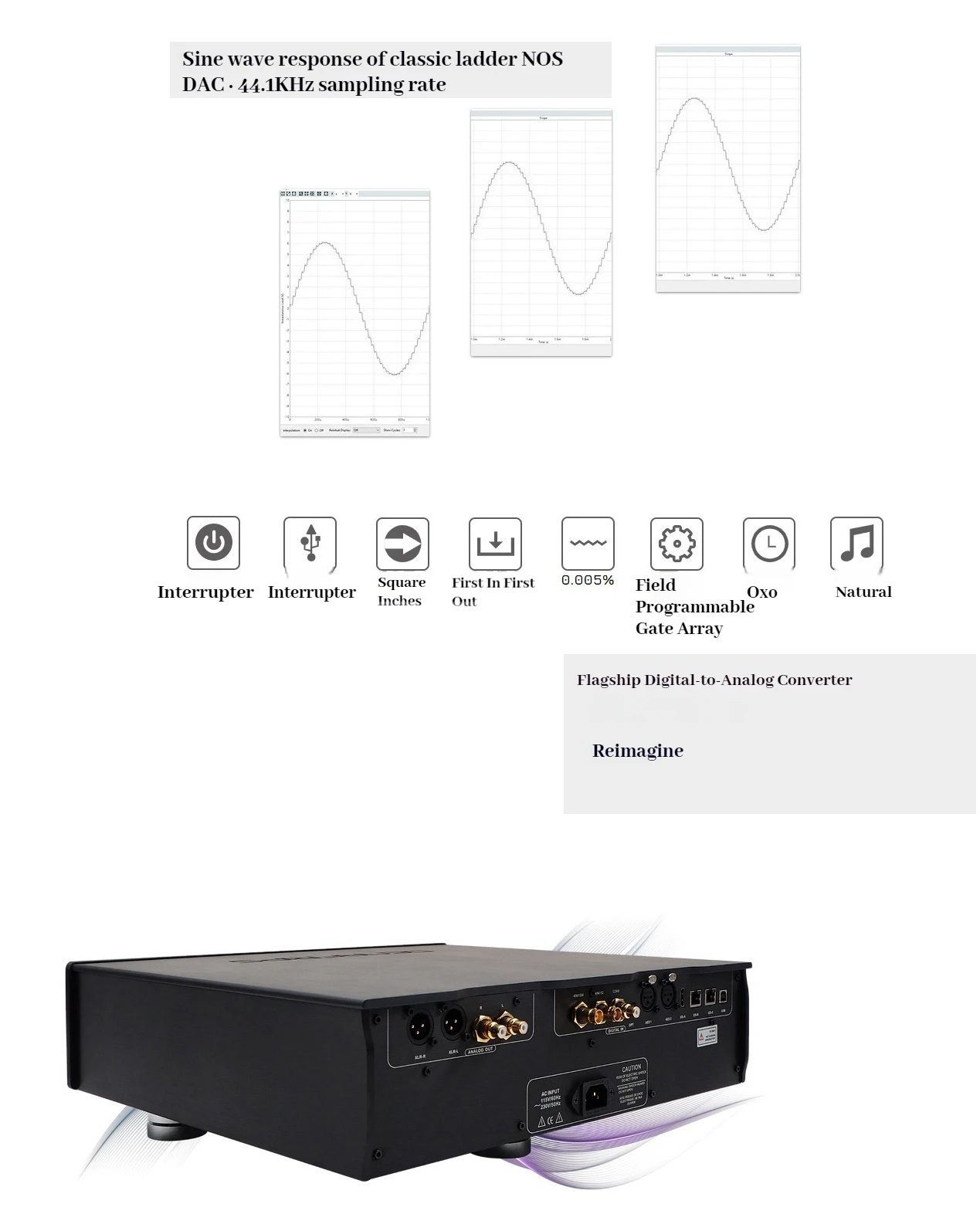

Sampling mode: Non-oversampling NOS / Oversampling OS

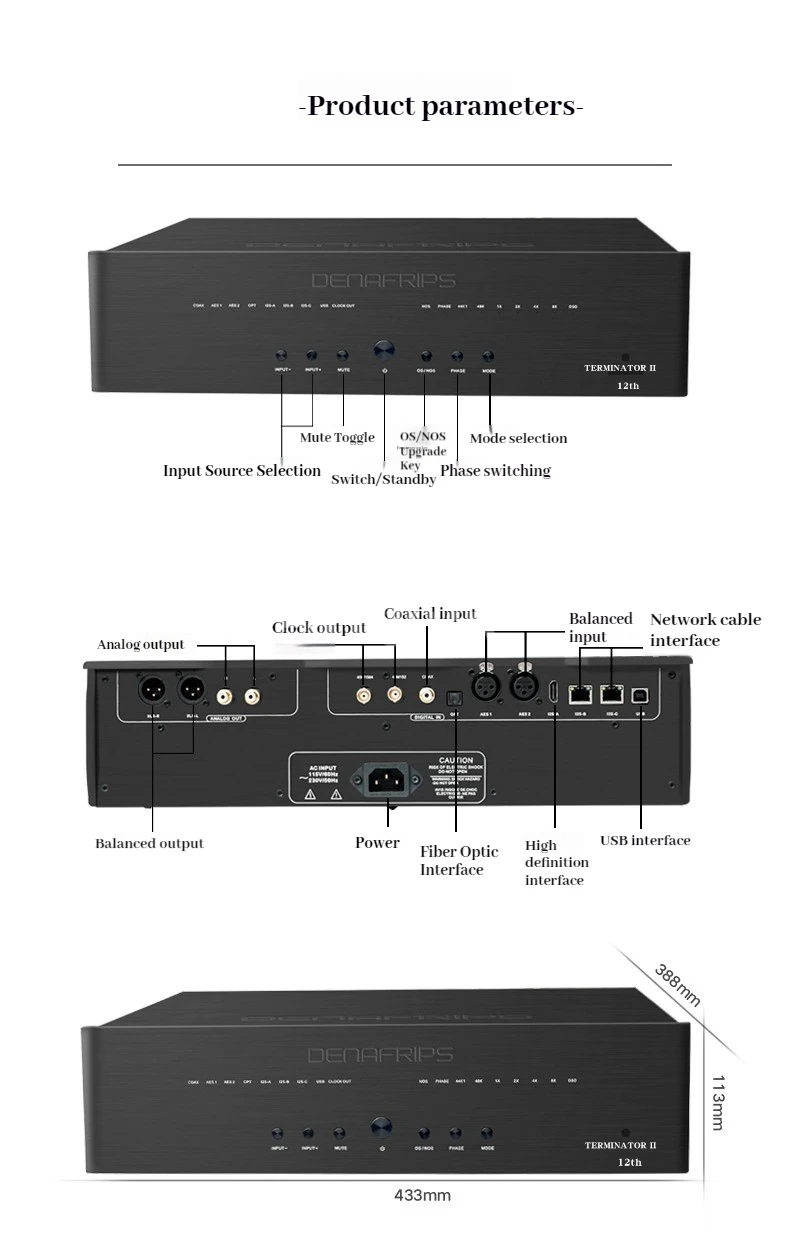

Digital inputs
Via RCA coaxial cable
Directory link x 1
Auto see and reach/emergency navigation x 2
USB 2.0 Type B
I² via HD Graphics
I² via RJ45 low voltage development module
I²S via RJ45 FET
Analog outputs
RCA at 2.0Vrms, 625Ω
XLR at 4.0Vrms, 1250Ω
Clock output BNC 75Ω
44.1kHz, 48kHz
22.5774MHz, 24.576MHz
45.1548MHz, 49.152MHz
Frequency response: 20-40kHz -0.2dB
Total harmonic distortion +N: 0.0010%S/N ratio: 127dB
Dynamic range: >132dB
Stereo crosstalk: -110dB
AC power requirements: 100-240VAC, 50/60Hz IZ (Worldwide voltage)
Power consumption: ≤20W
Dimensions: 430Wx380Dx125Hmm (including footer)
Package dimensions: 610x570x275mm
Package contents: D/A converter only. No power cord and remote control.
Weight: 19.0kg
Color: Silver/Black
